Gothic Pool

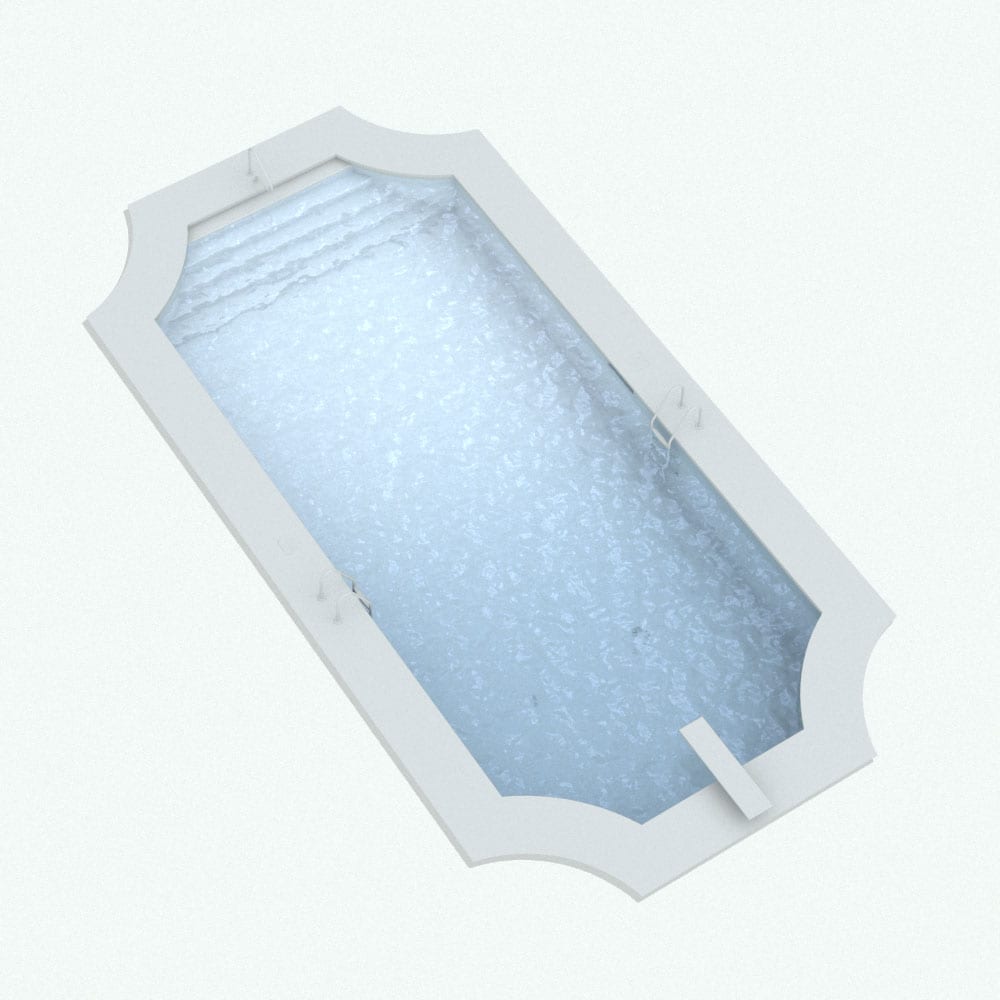

This easy-to-use gothic-style parametric Revit pool family will make your exterior spaces feel finished and luxurious. Plenty of parameters/options to change/choose from make this family a very flexible and easy to use product. Five types of handrails, three types of diving boards and three types of ladders are some of the features that are part of this parametric family. Additionally, this pool features drains, returns and skimmers with hatches. The customizable width and length of the pool, along with the customizable corners radius, pool frame width, visibility of several of its parts (ladders, diving board, handrails, hatches and returns) and skimmer hatch width make this family a must-have item in anyone’s families library. This family attaches to faces (floor for example) and it creates a hole in it automatically for ease of use.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 1.95 MB
• File format: .rfa

This Revit family gothic pool comes with the following customizable parameters and options:

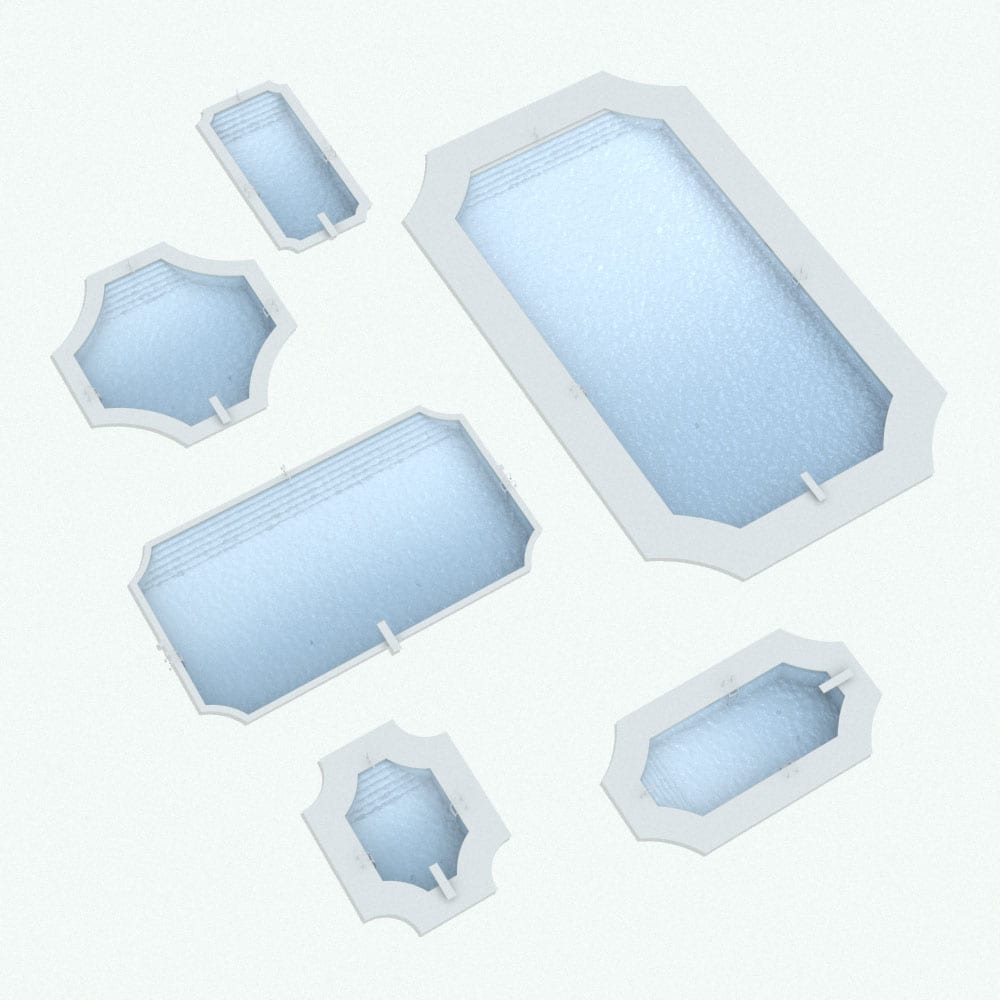

Width and length:

• Minimum width: 8′
• Maximum width: 150′

• Minimum length: 10′
• Maximum length: 150′

Corner radius can be changed: values vary depending on the size of the pool.

Pool curvature: large numbers might be required to see a change. Also, the radius plays an important role when changing the curvature

Pool frame width:

• Minimum frame width: 10″
• Maximum frame width: 1/3rd of the smallest dimension (either length or width)

Pool comes with the following objects:

• Pool Ladder
• Diving Board
• Handrail
• Skimmer with Hatch
• Drains
• Returns

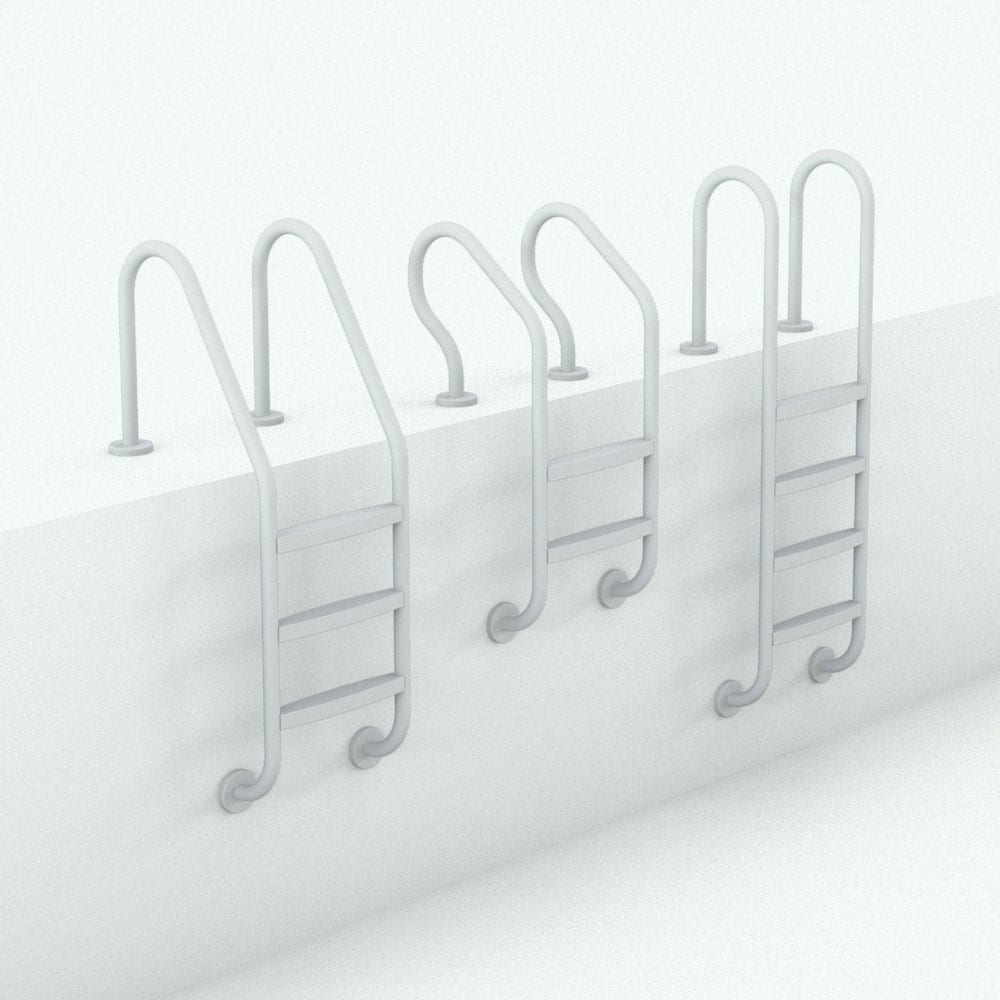

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

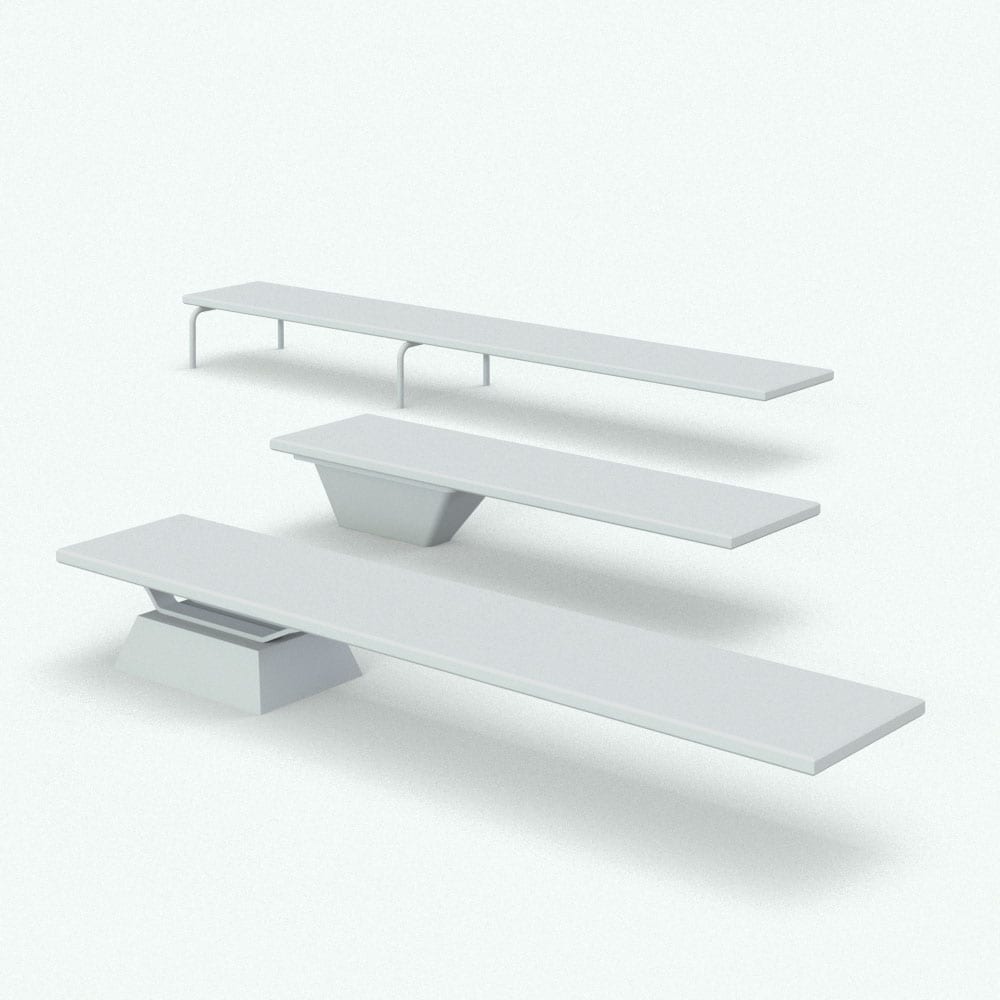

Diving board base comes in three different types (shapes)

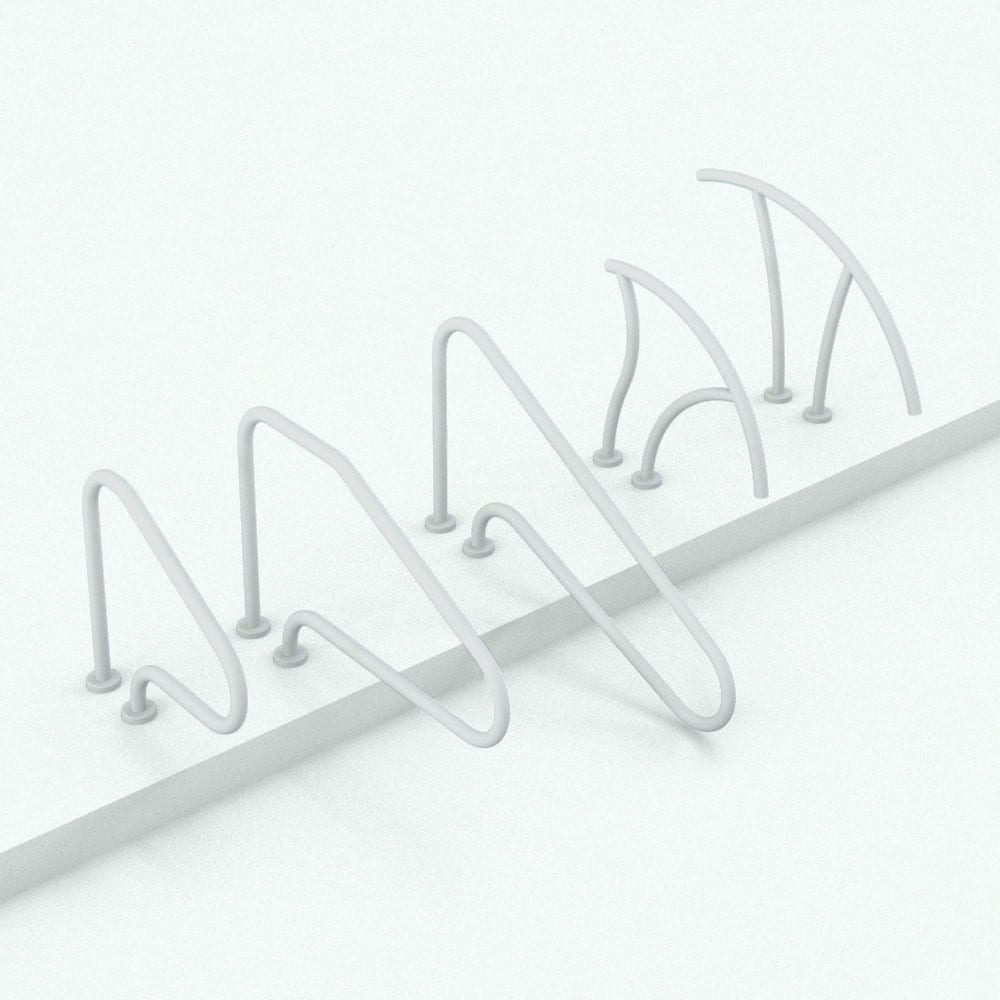

Handrail comes in five different types (shapes)

Skimmer width:

• Minimum skimmer width: 0′ 7 3/8″
• Maximum skimmer width: 3′

The following objects can be turned on/off (visibility):

• Pool Ladder
• Diving Board
• Handrail
• Skimmer Hatch
• Returns

Material parameters for:

• Pool Concrete
• Pool Frame
• Pool Water
• Pool Ladder
• Diving Board Base
• Diving Board
• Handrail
• Pool Drain Inside
• Pool Drain
• Pool Return
• Skimmer Hatch
• Skimmer

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
