L-Shape Pool

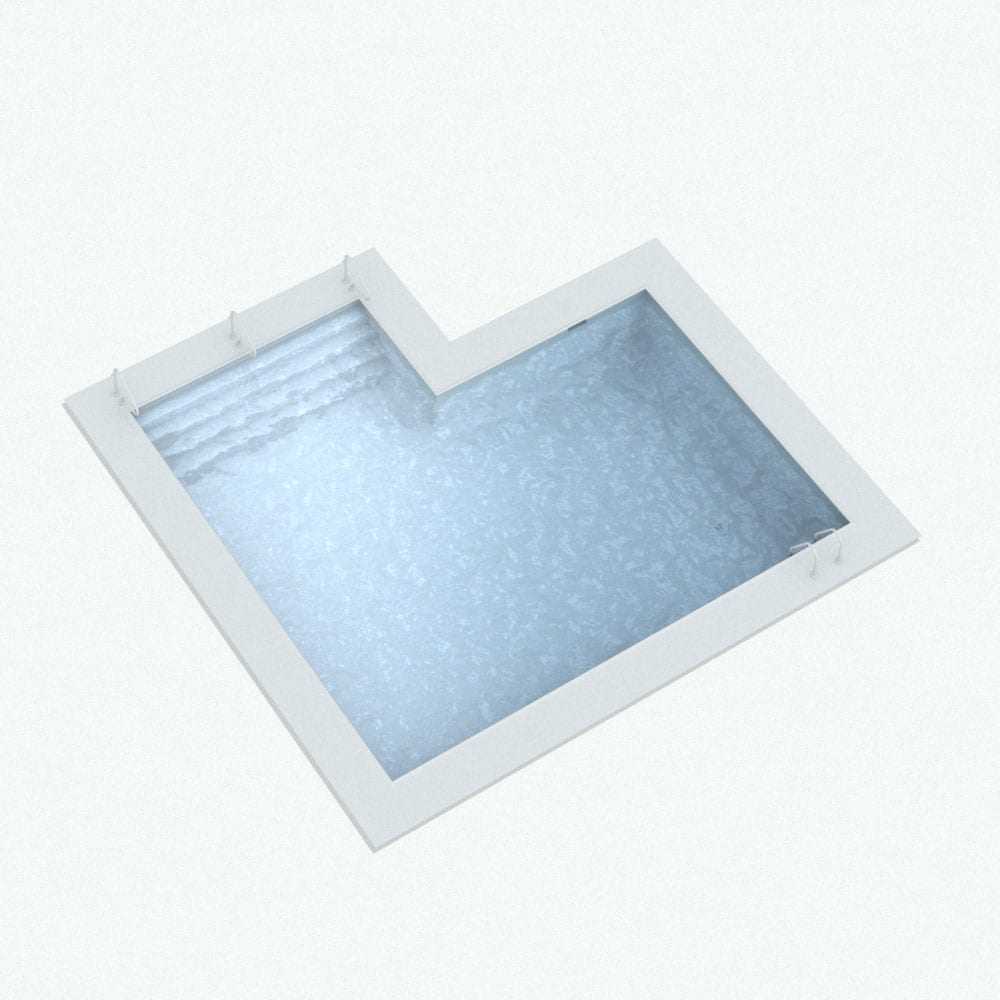

This parametric L-shaped Revit pool family will certainly make your exterior spaces stand out. Ideal for residences, gyms, hotels, etc., this family attaches to floor faces and it creates a hole in it automatically for ease of use.. Plenty of parameters to change make this family a very flexible and easy to use product. Five types of handrails and three types of ladders are some of the features that are included in this parametric family. Additionally, this pool features drains, returns and skimmers with hatches. The customizable width and length of each arm of the pool, along with the customizable pool frame width, number of steps in the ladders, visibility of several of its parts (ladders, handrails, hatches and water) and skimmer width make this family a must-have item in everyone’s families library.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 1.73 MB
• File format: .rfa

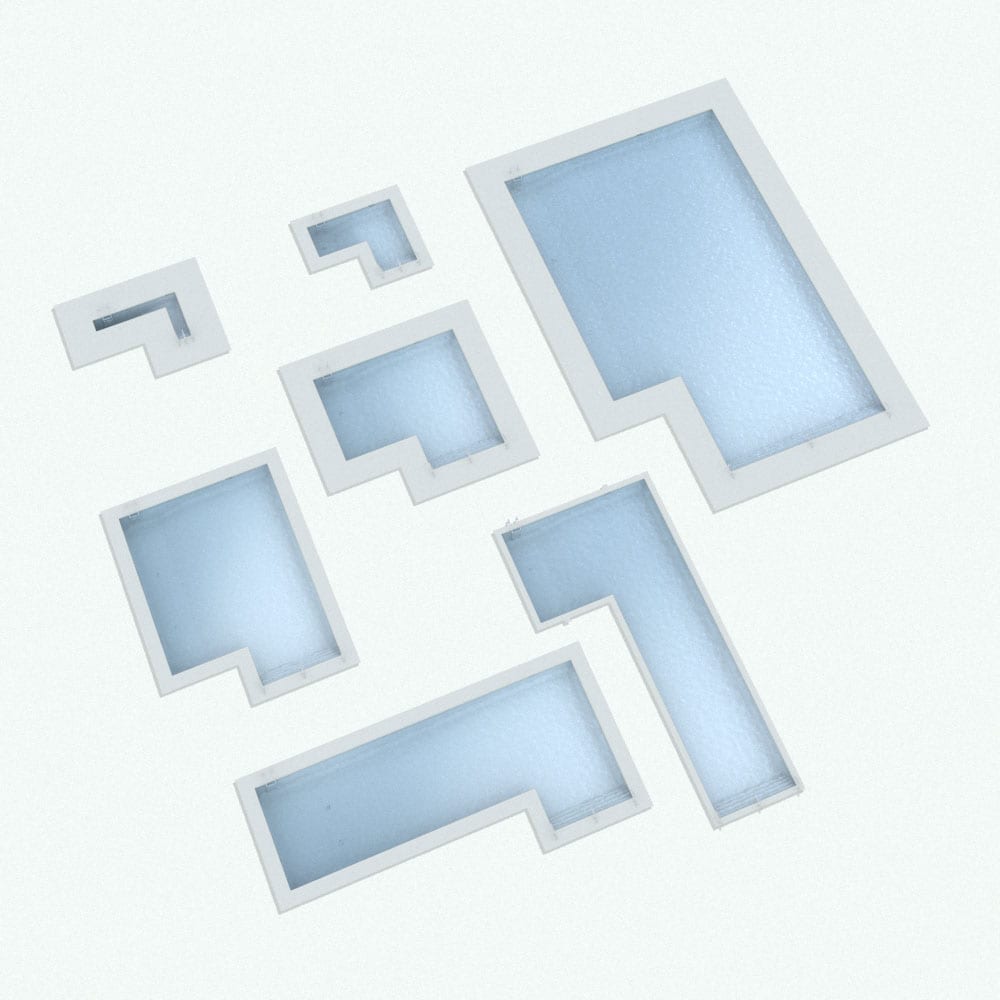

This Revit family L-shape pool comes with the following customizable parameters and options:

Size of pool (sizes don’t include the pool walls):

• Minimum width arm 1: 3′
• Maximum width arm 1: unlimited

• Minimum length arm 1: 5′
• Maximum length arm 1: unlimited

• Minimum width arm 2: 3′
• Maximum width arm 2: unlimited

• Minimum length arm 2: 10′
• Maximum length arm 2: unlimited

Pool frame width:

• Minimum frame width: 1′
• Maximum frame width: 6′

Pool comes with the following objects:

• Pool Ladder
• Handrail
• Skimmer with Hatch
• Drains
• Returns

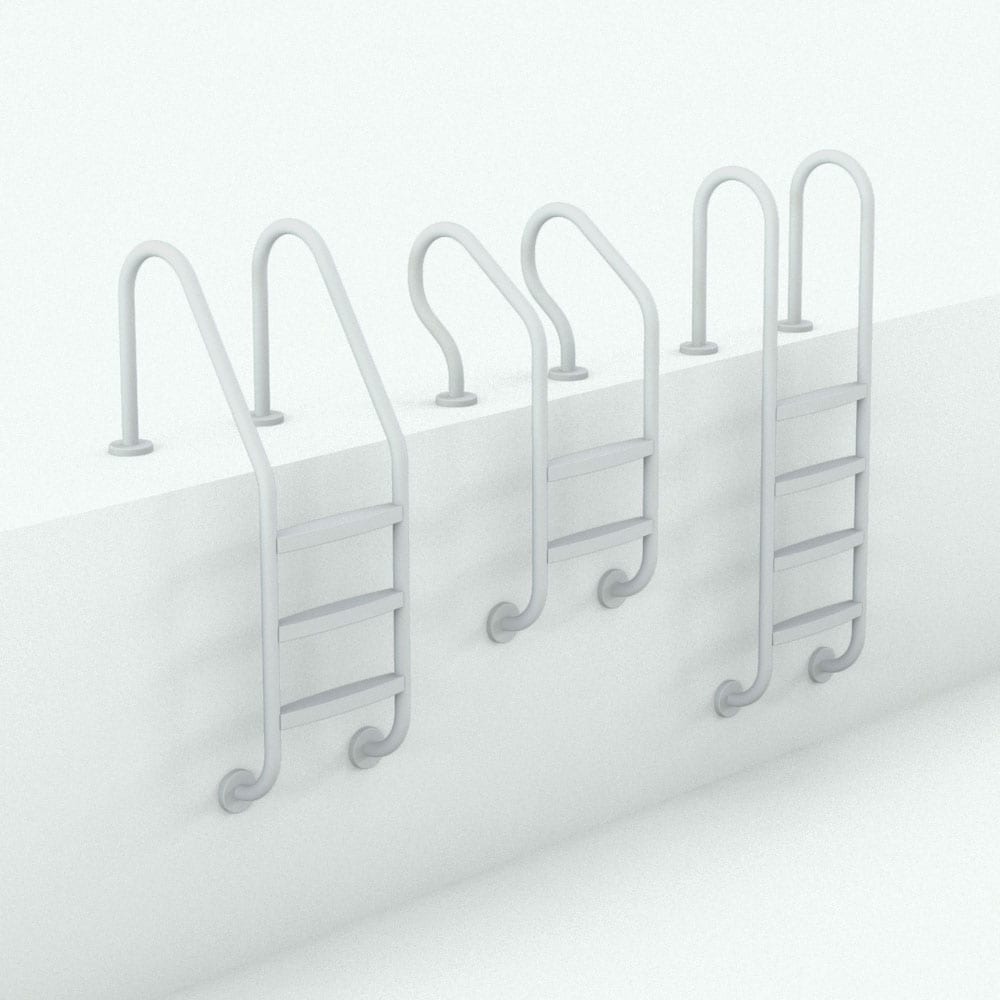

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

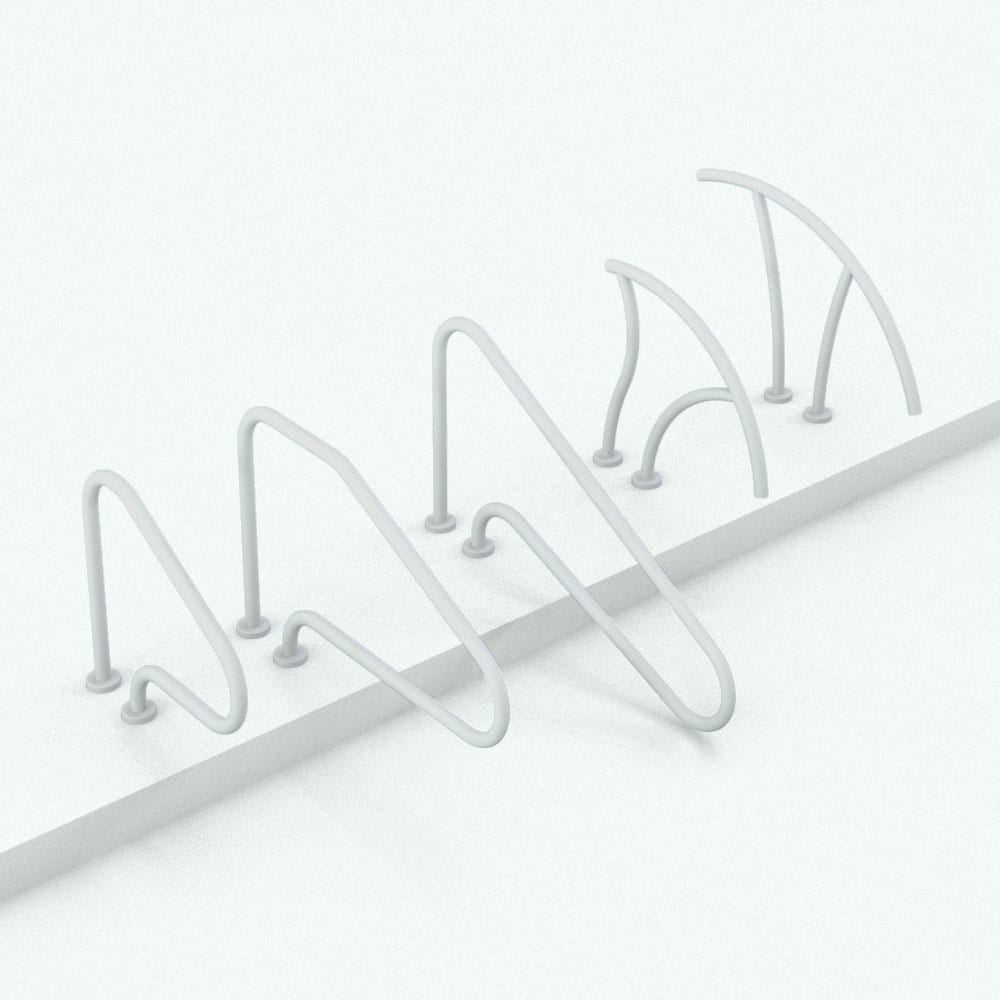

Handrail comes in five different types (shapes)

Skimmer width:

• Minimum skimmer width: 0′ 7 3/8″
• Maximum skimmer width: 3′

The following objects can be turned on/off (visibility):

• Pool Ladder
• Handrail
• Skimmer Hatch
• Water

Material parameters for:

• Pool Concrete
• Pool Frame
• Pool Water
• Pool Ladder
• Handrail
• Pool Drain Inside
• Pool Drain
• Pool Return
• Skimmer Hatch
• Skimmer

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
