Circular Pool

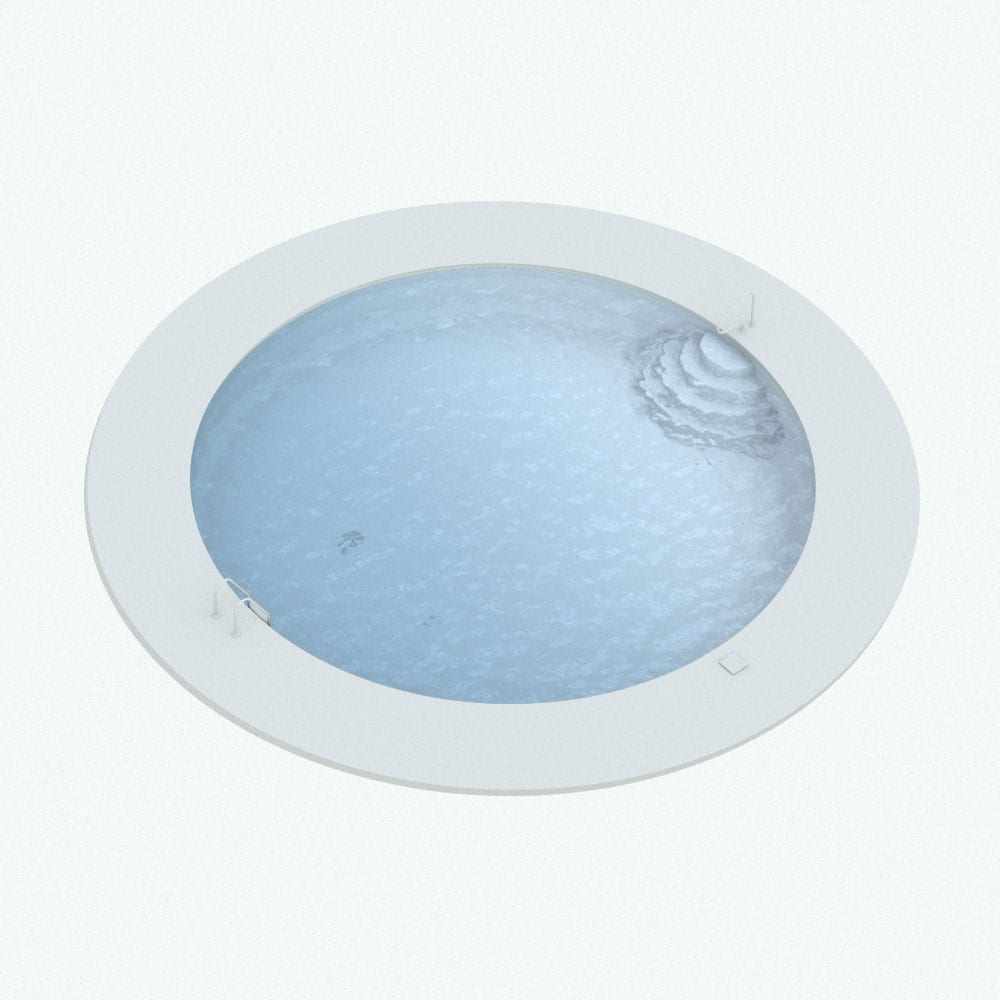

Make your projects look luxurious with this circular Revit pool family that includes many options to choose from. Ideal for residences, hotels, community centers, gyms, etc., this parametric swimming pool features five types of handrails and three types of ladders. Additionally, this pool features drains and skimmers with hatches. The customizable diameter of the pool, along with the customizable width of the pool frame and the visibility of several parts of it (ladder, handrail and skimmers) will make this pool fit to any exterior or interior space in your project. This family attaches to faces (floor for example) and it creates a hole in it automatically for ease of use.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 1.55 MB
• File format: .rfa

This Revit family circular pool comes with the following customizable parameters and options:

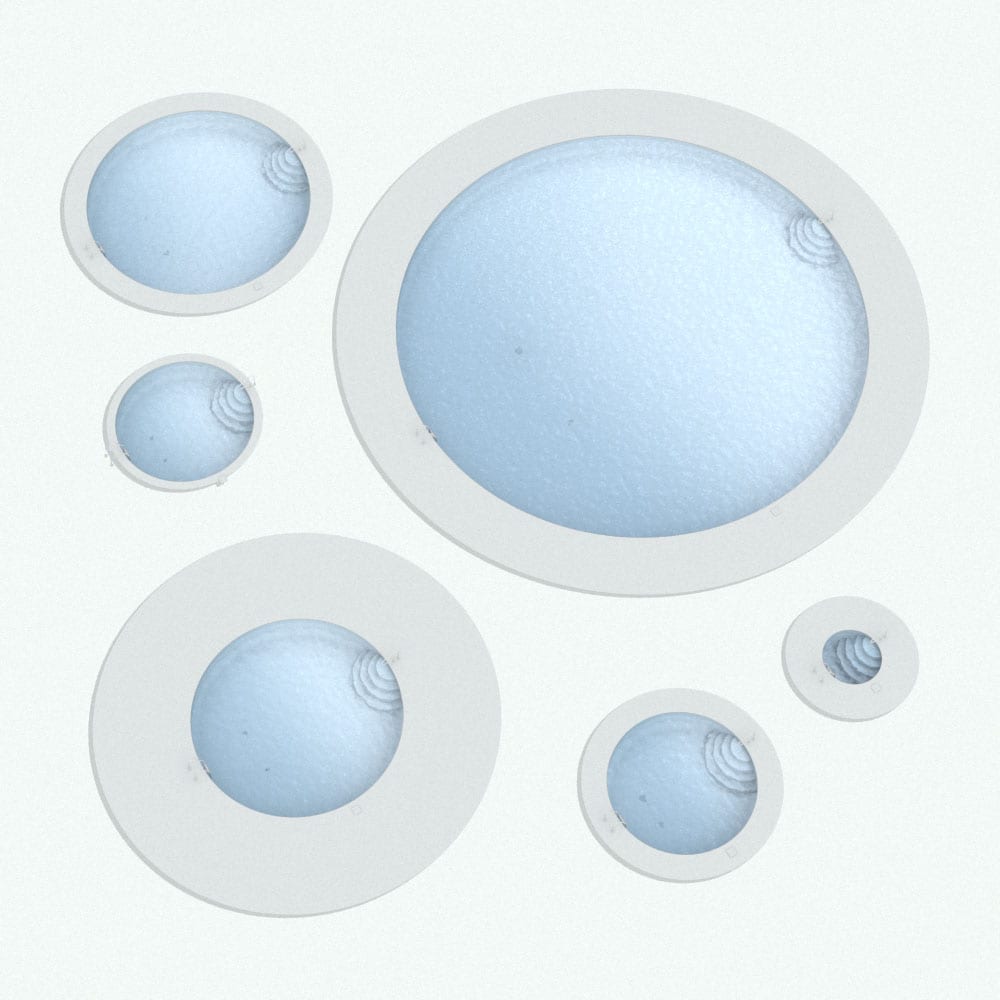

Diameter:

• Minimum diameter: 9′ (diameter includes wall thickness)
• Maximum diameter: 100′ (diameter includes wall thickness)

Pool frame width:

• Minimum frame width: 10″
• Maximum frame width: pool diameter

Pool comes with the following objects:

• Pool Ladder
• Handrail
• Skimmer with Hatch
• Drains

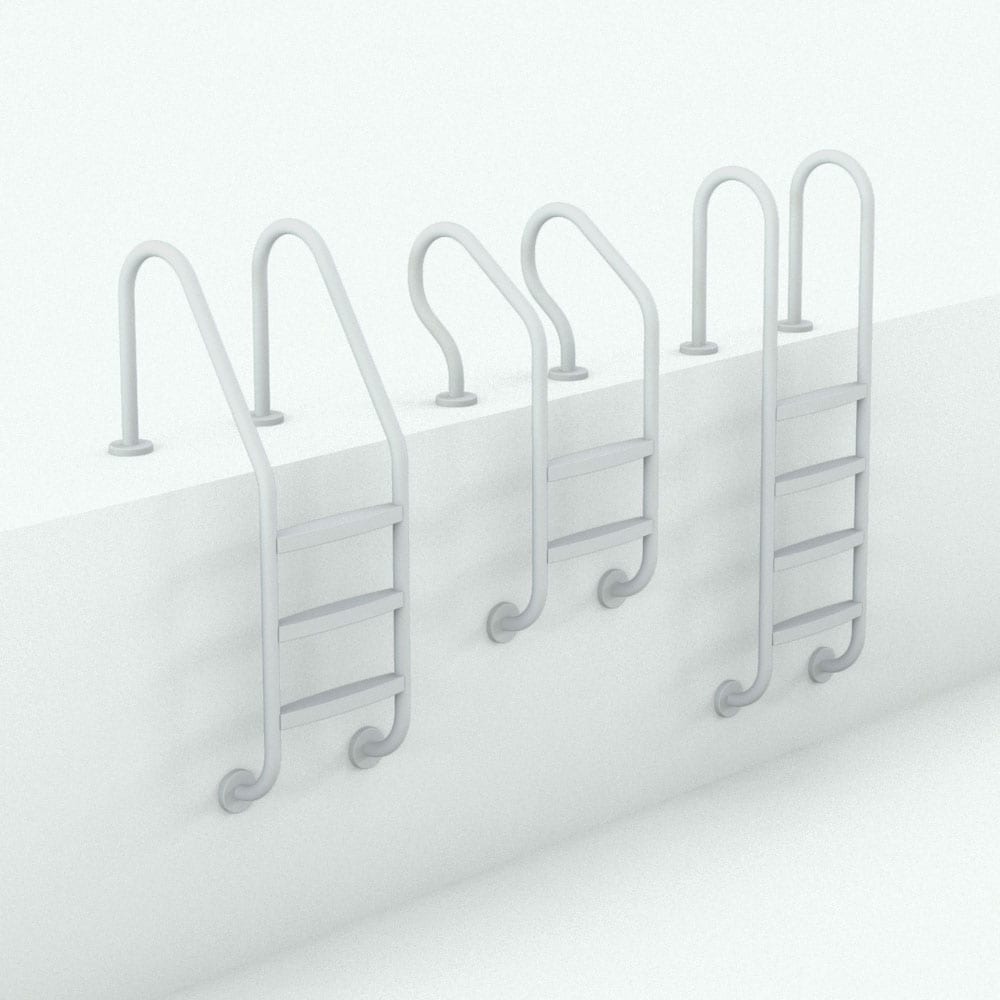

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

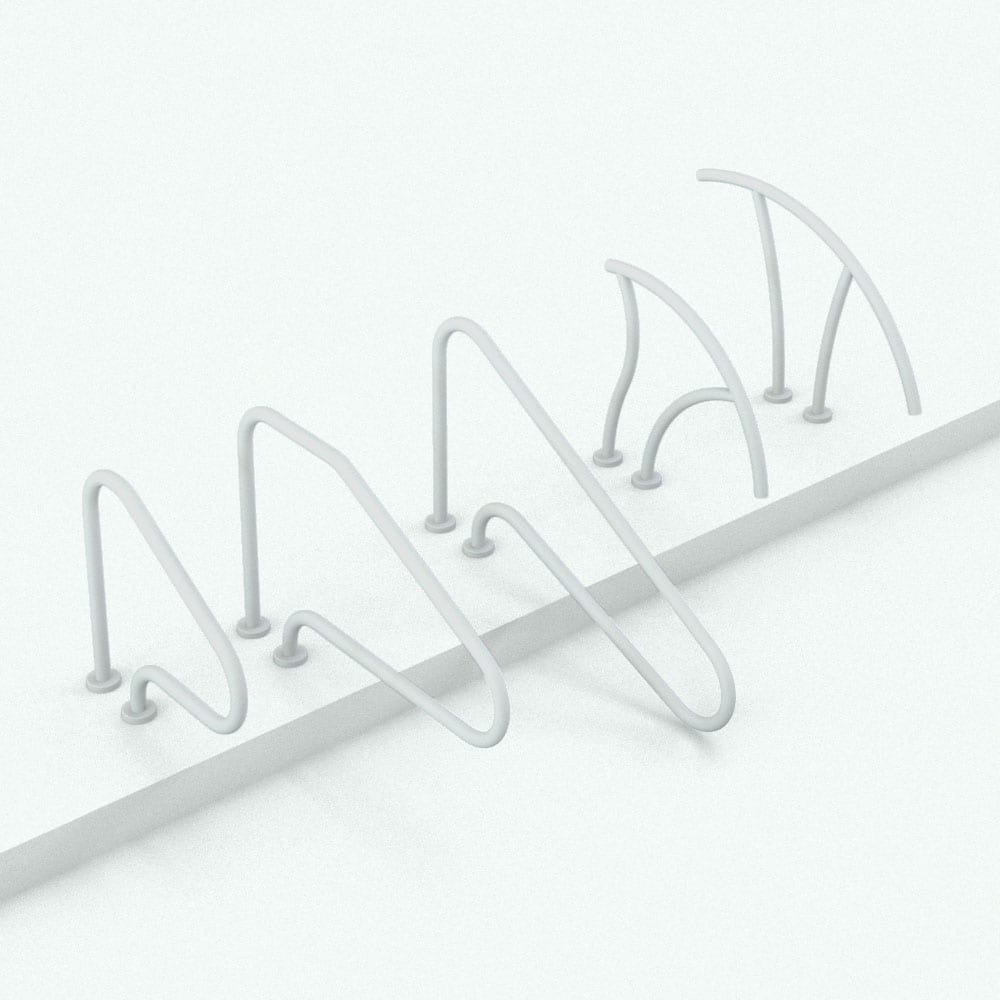

Handrail comes in five different types (shapes)

The following objects can be turned on/off (visibility):

• Pool Ladder
• Handrail
• Skimmer Hatch

Materials can be assigned to the following:

• Pool Concrete
• Pool Frame
• Pool Water
• Pool Ladder
• Handrail
• Pool Drain Inside
• Pool Drain
• Skimmer Hatch
• Skimmer

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
