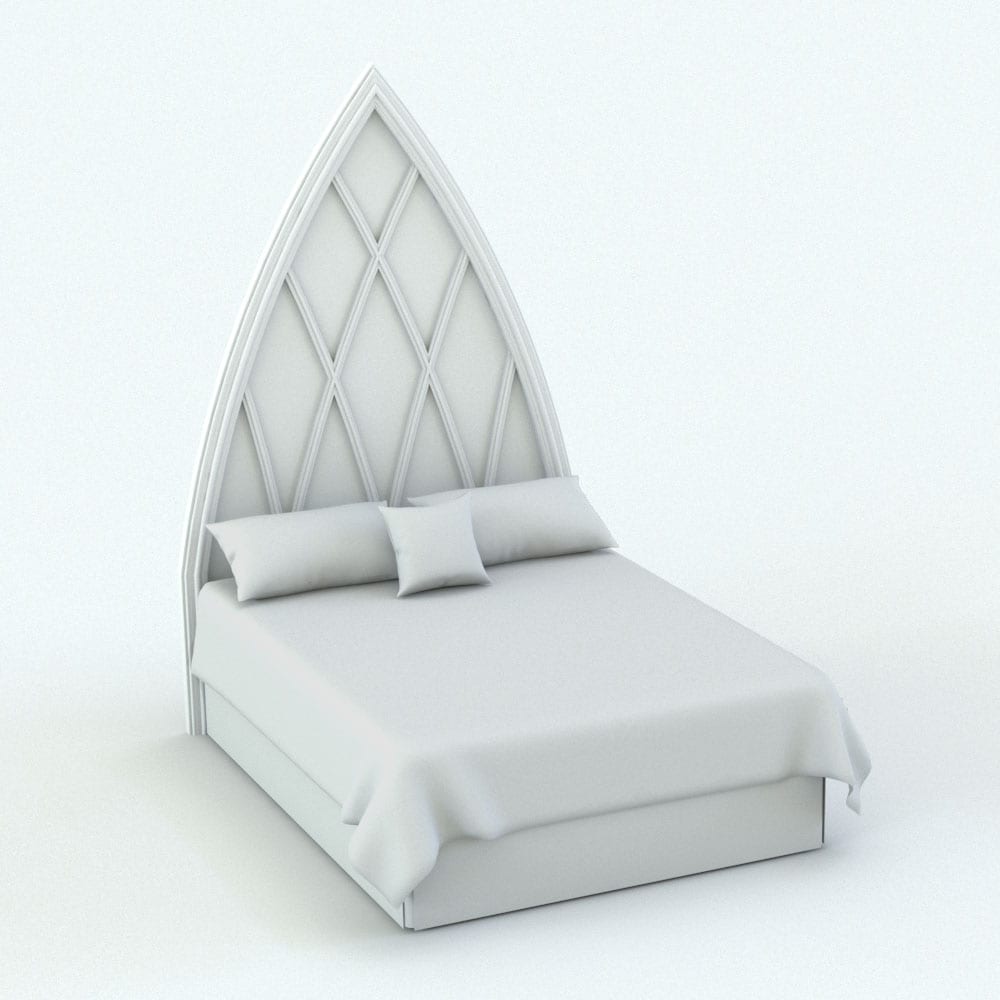

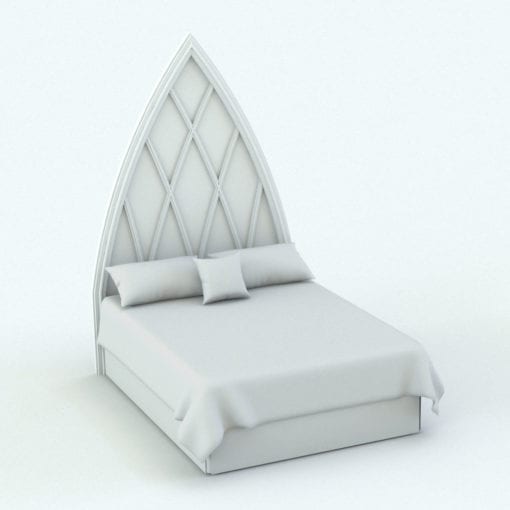

Bed With Gothic Headboard

This parametric realistic Revit bed family with gothic headboard is ideal for making your bedrooms look finished and elegant. With an organic-looking comforter and organic looking pillows and a cushion, this bed as well as the headboard can adapt to any of your rooms requirements. All of the organic objects (comforter, pillows and cushion) are configured so that textures map correctly on them, which will make your renders look more realistic. Plus, the bed is available in the three most common sizes: full, queen and king and it has additional parameters to control the visibility of the cushion. This piece of furniture will certainly improve the look and realism of your renders.

This 3D bed with gothic headboard comes with the following customizable parameters and options:

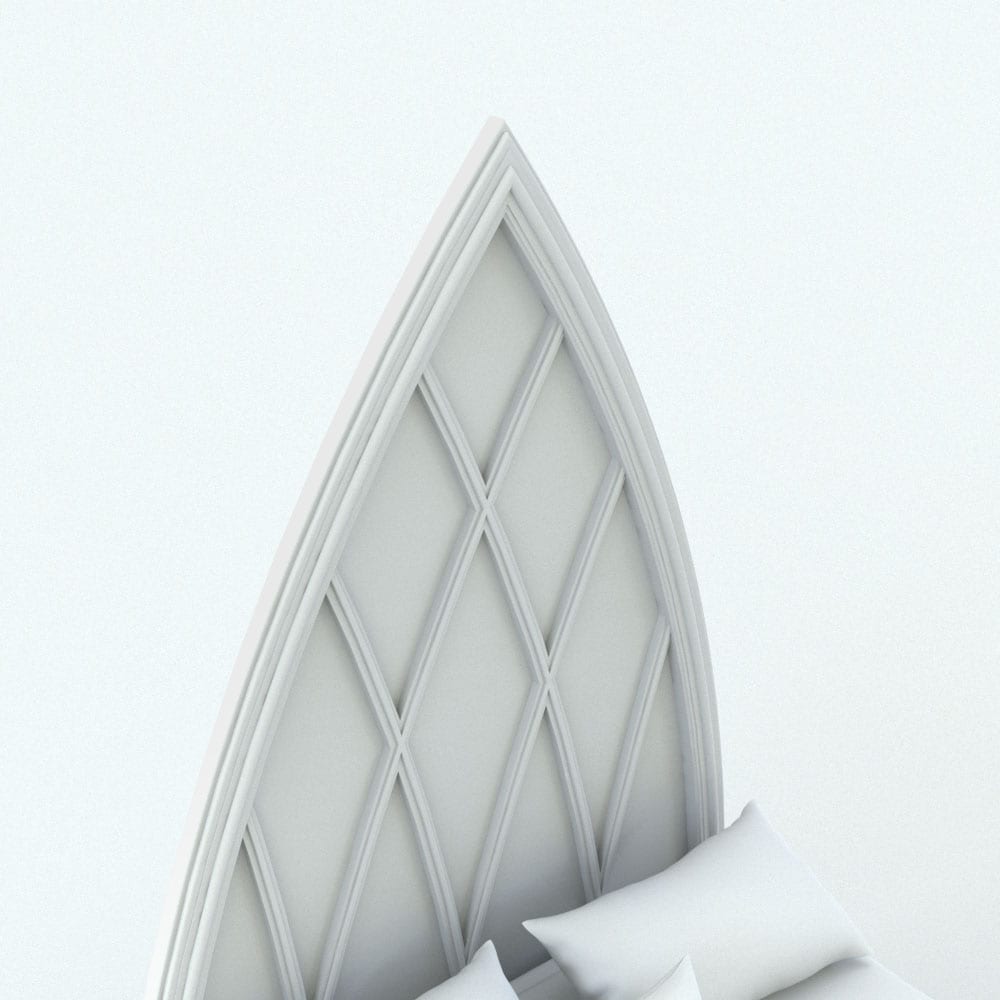

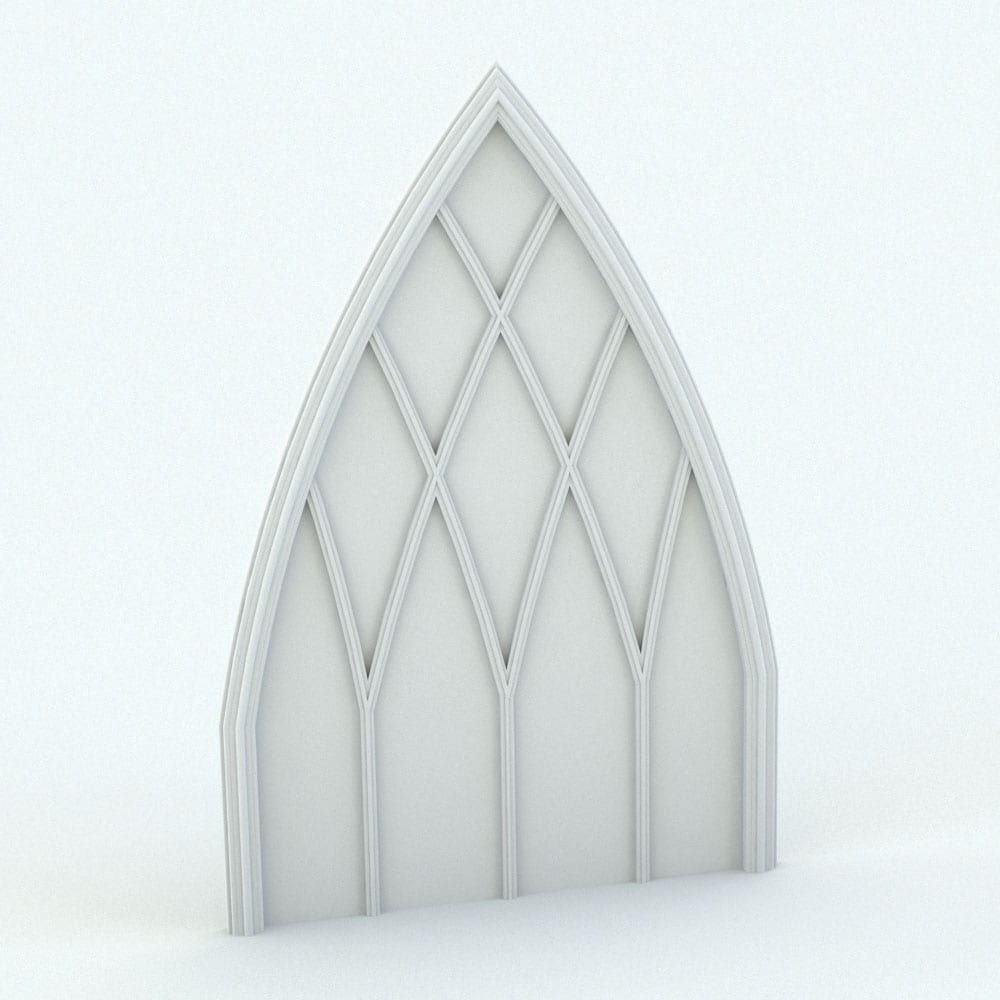

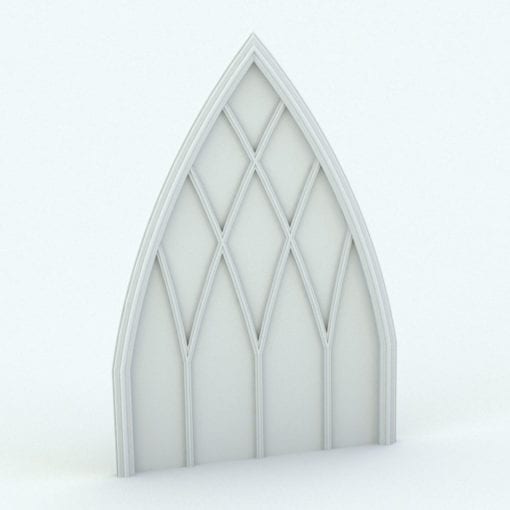

Headboard

Headboard comes in three sizes+: king, queen and twin

+Additional sizes can be created in Edit Type

Leg height:

• Min leg height: 20″
• Max leg height: 5′

Headboard height:

• Min headboard (arch) height: 4’1″
• Max headboard (arch) height: 7′

Headboard width:

• Min headboard width: 2’8″
• Max headboard width: 8′

Backboard can be turned off to leave a hollow frame

Material parameters for:

• Arches
• Backboard

Bed

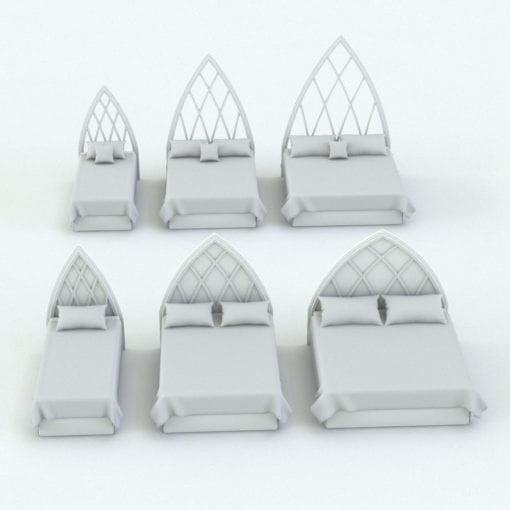

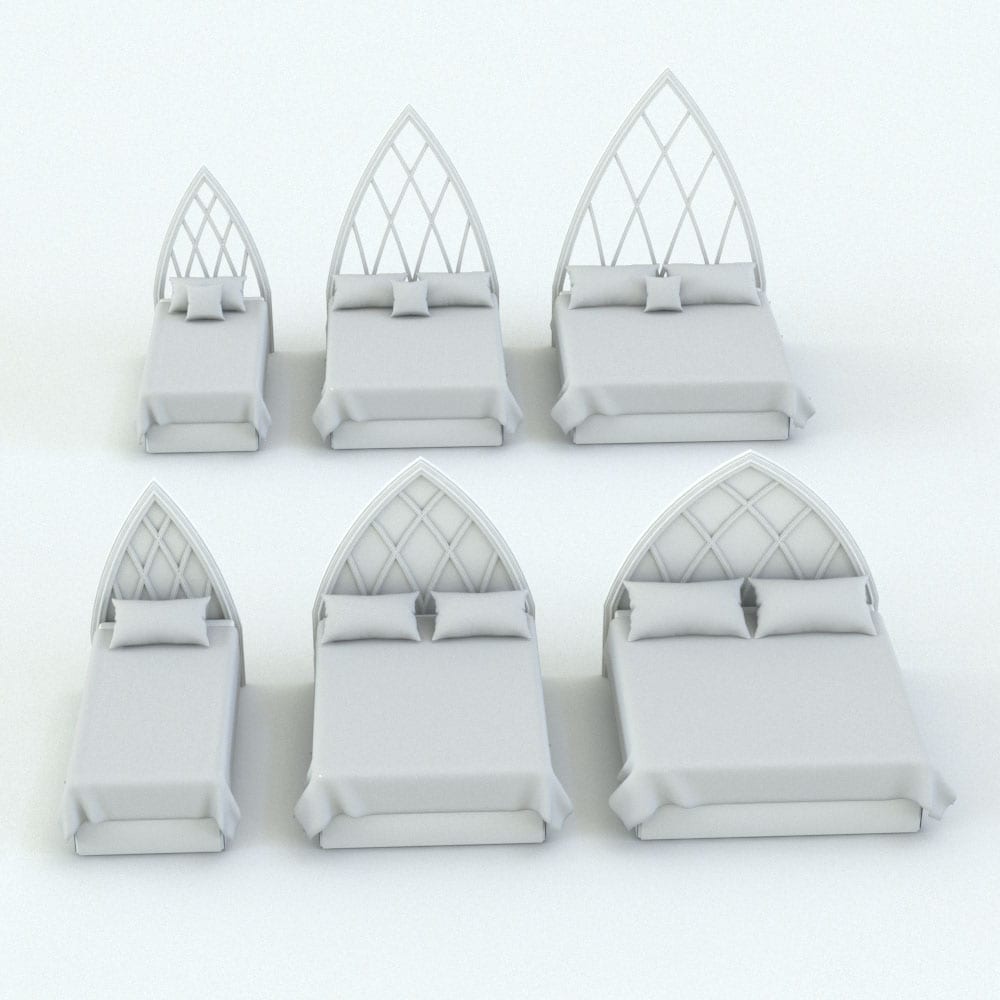

Bed comes in three sizes++:

• Full Size
• Queen Size
• King Size

++ Sizes different than these pre-configured ones will turn off some objects on the bed and/or might give odd results (oversimplified bed).

The following parts of the bed can be turned on/off:

• Square Cushion

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Materials Browser.

Materials in the properties (Material parameters):

• Mattress
• Bed Skirt
• Box Spring
• Legs

Materials (material names) found in the Material Editor:

• Simple Bed – Comforter
• Simple Bed – Pillows
• Simple Bed – Square Cushion

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
