Pyramidal Drawers Bed Set

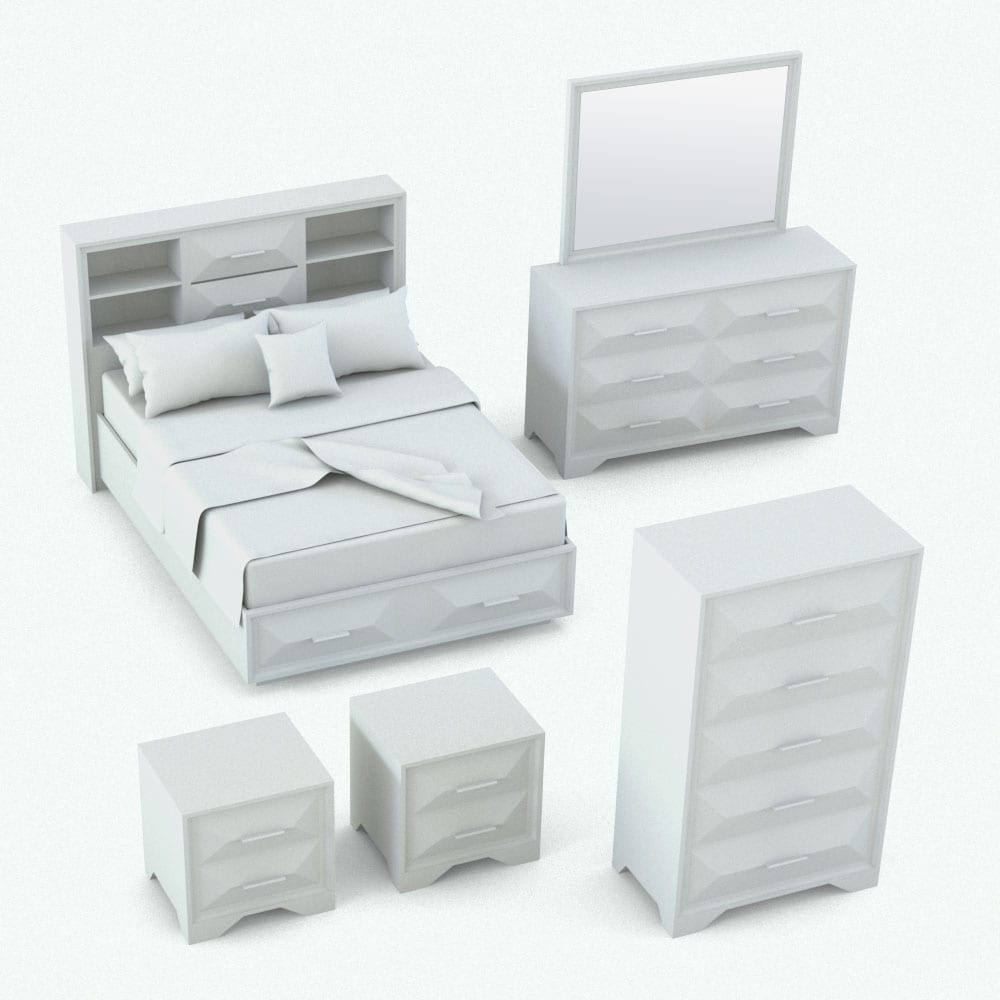

Bed, chest with drawers, dresser and night stands are the pieces included in this easy-to-use Revit bed set. Ideal for making your bedrooms look complete in a few clicks, each piece in this set is packed with parameters to adapt to your design requirements. The bed comes with organic looking pillows, shams, cushions and a throw. Each one of these organic objects are configured so that textures map correctly on them, which will make your renders look more realistic. Plus, the bed is available in the three most common sizes: full, queen and king and it has additional parameters to control the height of the headboard, the number of drawers on the headboard as well as the visibility of some of its parts (throw, shams, cushions and headboard drawers). Besides the bed, the other three objects are also packed with parameters to change. The chest with drawers, the dresser and the night stands’ dimensions can all be changed to fit your rooms. Widths, depths, heights and number of drawers are available parameters in these three pieces. Additionally, the dresser comes with a fully customizable mirror that allows you to change its width, height and visibility to further refine the look of it. This full set will make your space look cozier and it is certainly a family worth having in your personal collection.

This Revit family pyramidal bed set comes with the following customizable parameters and options:

Bed

Bed comes in three sizes++:

• Full Size
• Queen Size
• King Size

++ Sizes different than these pre-configured ones will turn off some objects on the bed and/or might give odd results (oversimplified bed).

The following parts of the bed can be turned on/off:

• Throw
• Shams
• Cushions
• Headboard Drawers

Height of the headboard and number of drawers on the headboard:

• Minimum height: 4′
• Maximum height: 6′

• Minimum number of drawers on headboard: 2
• Maximum number of drawers on headboard: as many as long as the height is not smaller than 5″

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Materials Browser.

Material parameters for:

• Bed Frame and Headboard
• Handles
• Mattress

Materials (material names) found in the Material Browser:

• Pyramidal Drawers Bed – Comforter
• Pyramidal Drawers Bed – Cushions
• Pyramidal Drawers Bed – Pillows
• Pyramidal Drawers Bed – Shams
• Pyramidal Drawers Bed – Throw

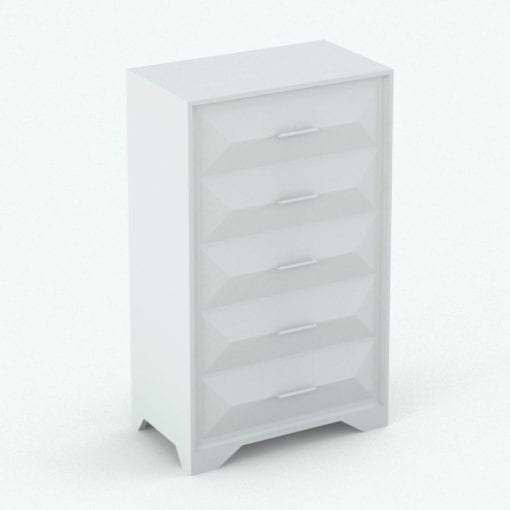

Chest With Drawers

Width, height, depth and number of drawers:

• Minimum width: 3′
• Maximum width: 15′

• Minimum height: 2’6″
• Maximum height: 7′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Material parameters for:

• Chest
• Handles

Dresser

Width, height, depth and number of drawers:

• Minimum width: 3′
• Maximum width: 15′

• Minimum height: 2’6″
• Maximum height: 4′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Mirror width and height:

• Minimum mirror width: 1′
• Maximum mirror width: cannot exceed the total width of the dresser

• Minimum height: 1′
• Maximum height: 10′

Mirror can be turned on/off

Material parameters for:

• Dresser
• Handles
• Mirror

Night Stand

Width, height, depth and number of drawers:

• Minimum width: 1’8″
• Maximum width: 5′

• Minimum height: 1’6″
• Maximum height: 3′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Material parameters for:

• Night Stand
• Handles

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
