Rectangular Handles Bed Set

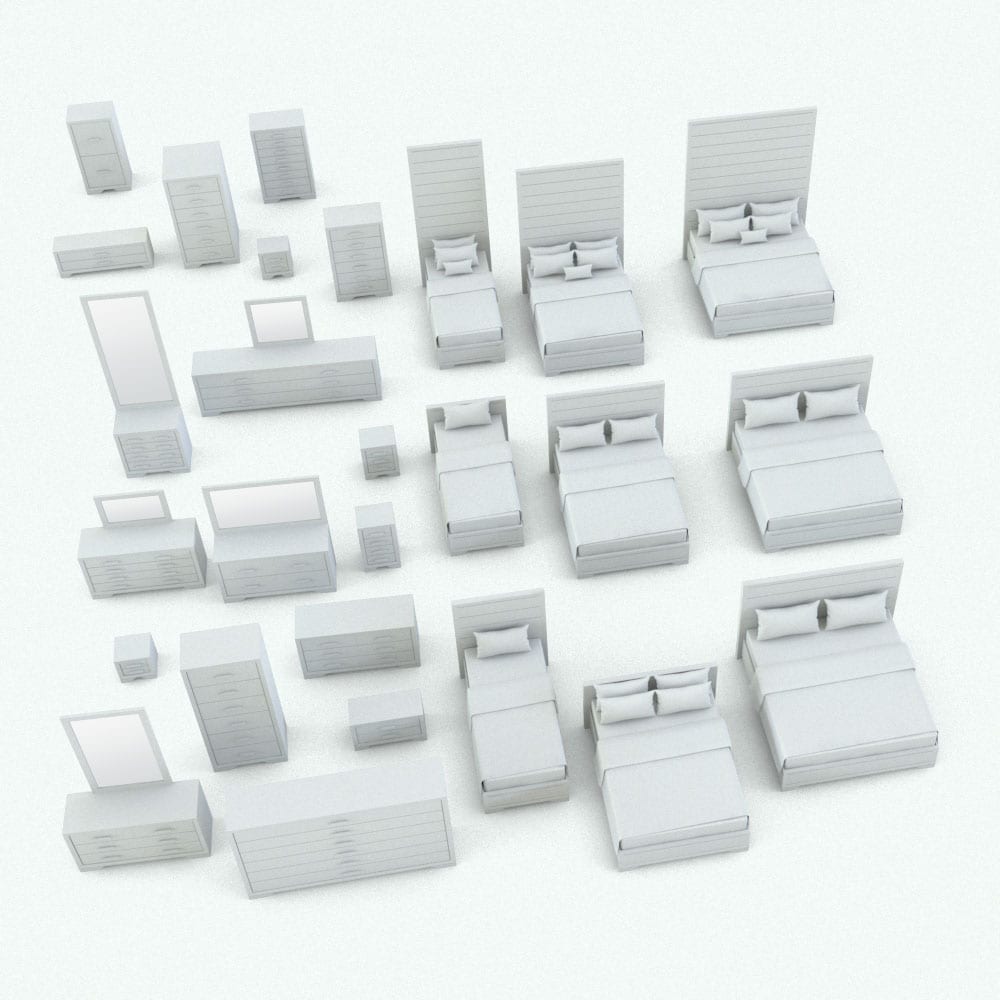

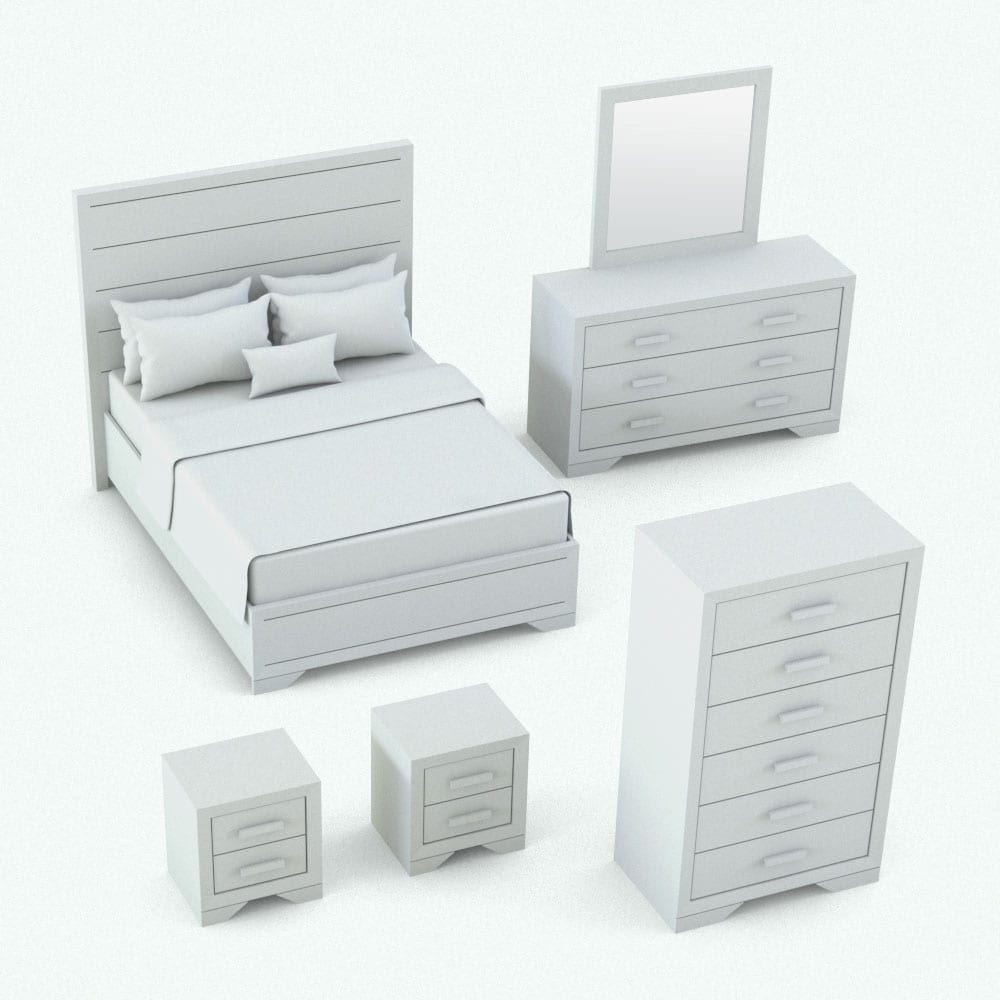

Fully parametric and easy-to-use 4-piece Revit bed set that includes: bed, chest with drawers, dresser and night stands. Ideal for making your bedrooms look finished in a few clicks, each piece in this set is packed with parameters to adapt to your design requirements. The bed comes with organic looking pillows, shams and a cushion. Each one of these organic objects are configured so that textures map correctly on them and your renders look more realistic. Plus, the bed is available in the three most common sizes: full, queen and king and it has additional parameters to control the height of the headboard and visibility of some of its parts (shams and cushions). Not only the bed is packed with parameters to change, but also the other three pieces are. The chest with drawers, the dresser and the night stands’ dimensions can all be changed to fit your rooms. Widths, depths, heights and number of drawers are available parameters in these three pieces. Additionally, the dresser comes with a fully customizable mirror that allows you to change its width, height, frame thickness and visibility to further refine the look of it. This full set will make your space look cozier and refined and it is certainly worth having in your personal library.

This Revit family rectangular handles bed set comes with the following customizable parameters and options:

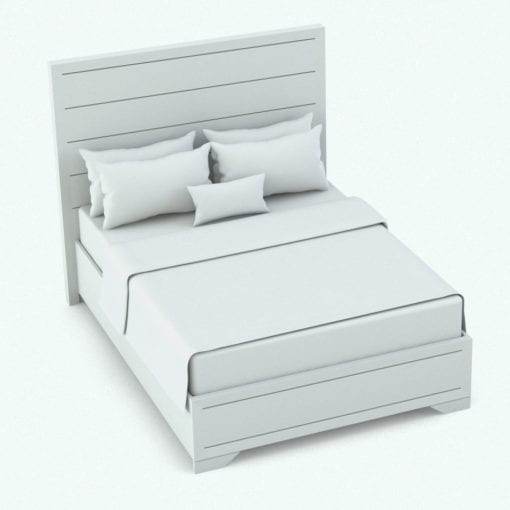

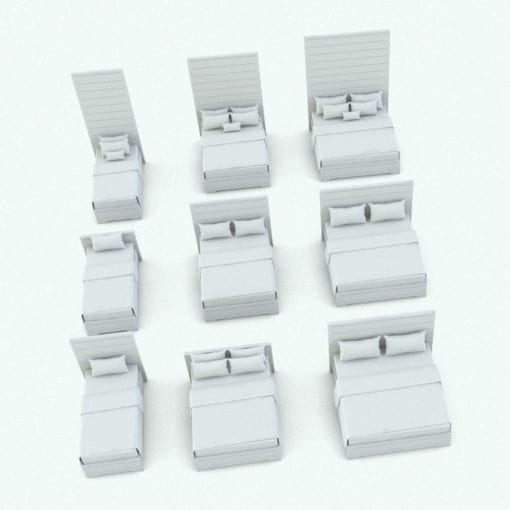

Bed

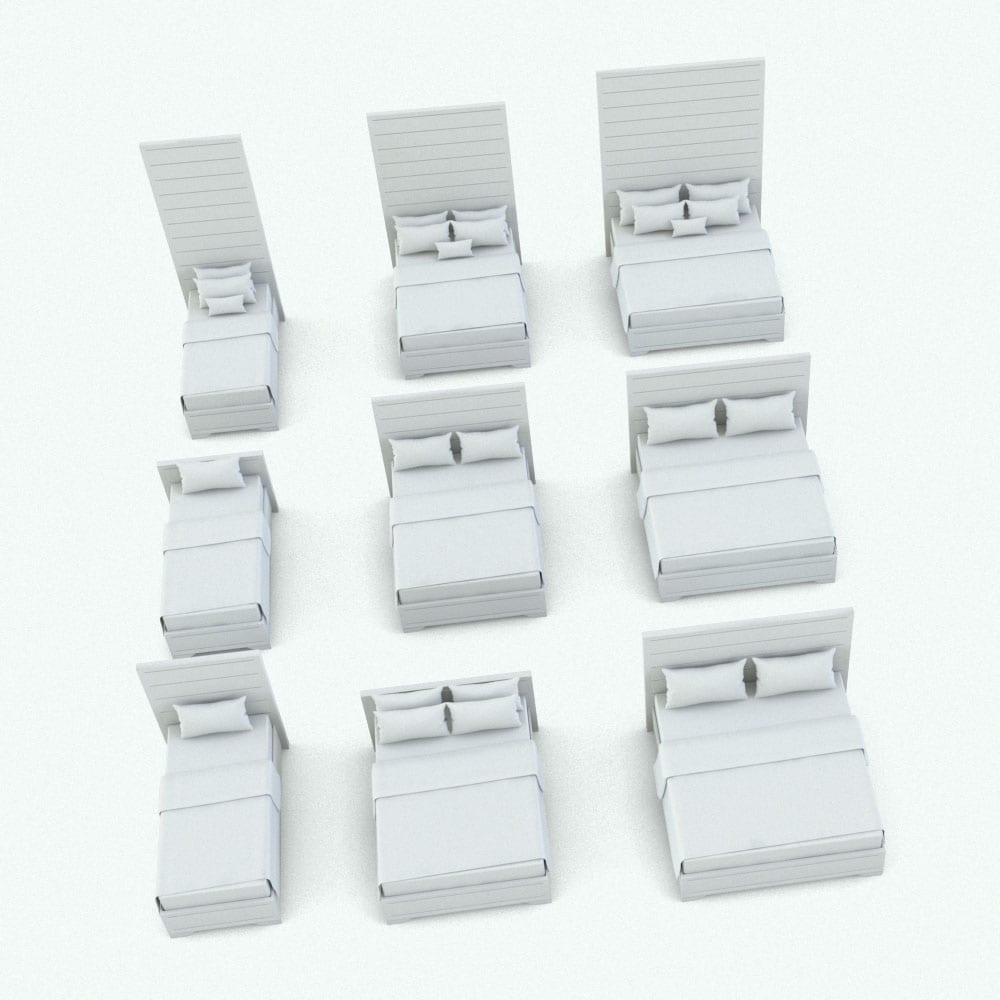

Bed comes in three sizes++:

• Full Size
• Queen Size
• King Size

++ Sizes different than these pre-configured ones will turn off some objects on the bed and/or might give odd results (oversimplified bed).

The following parts of the bed can be turned on/off:

• Shams
• Cushions

Height of the headboard:

• Minimum height: 3′
• Maximum height: 10′

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Materials Browser.

Material parameters for:

• Bed Frame and Headboard
• Mattress

Materials (material names) found in the Material Browser:

• Rectangular Handles Bed – Comforter
• Rectangular Handles Bed – Pillows
• Rectangular Handles Bed – Rect Cushion
• Rectangular Handles Bed – Shams

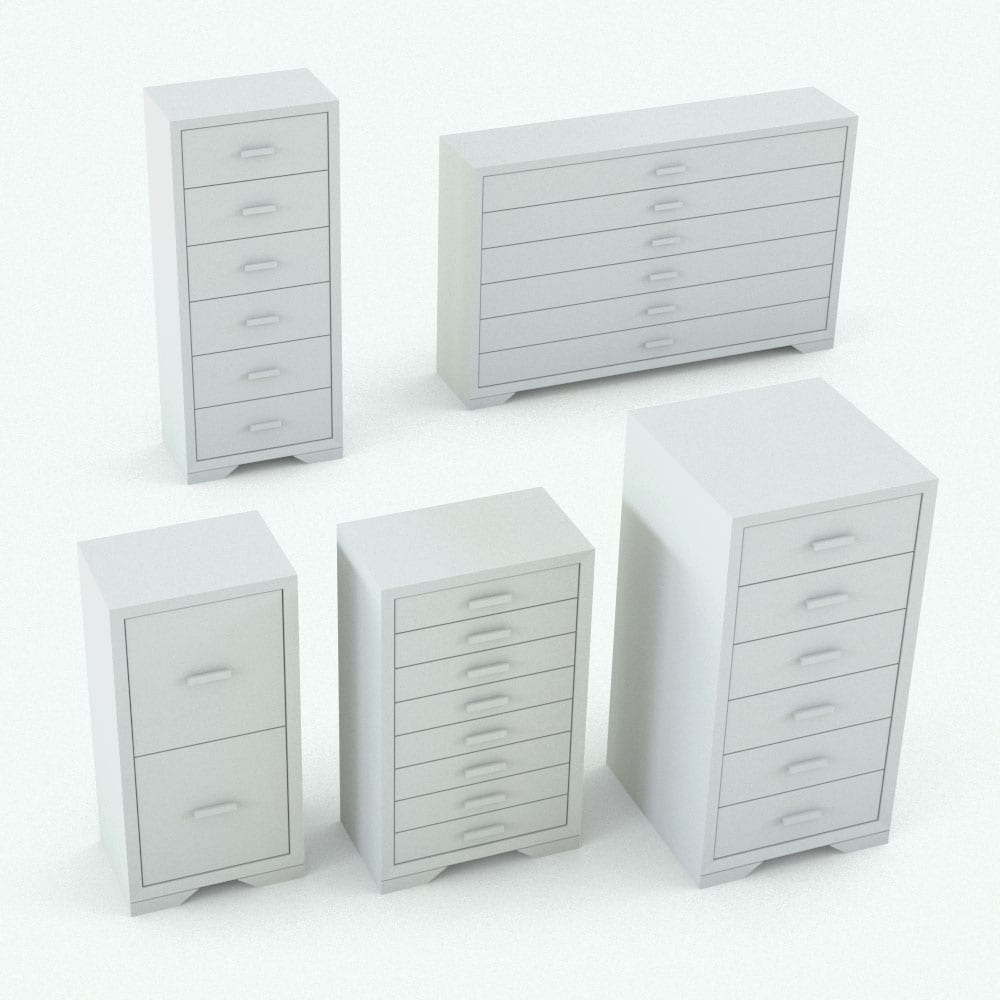

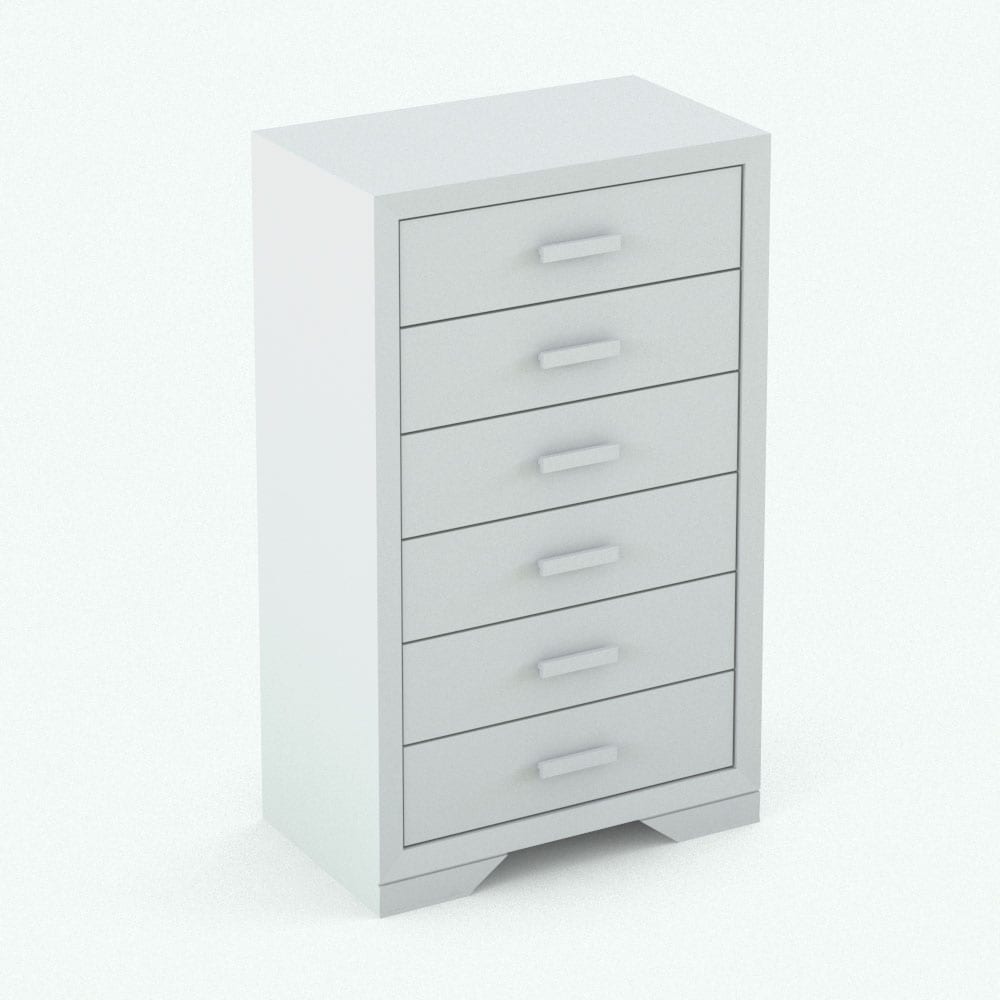

Chest With Drawers

Width, height, depth and number of drawers:

• Minimum width: 2’6″
• Maximum width: 9′

• Minimum height: 2’6″
• Maximum height: 7′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Material parameters for:

• Chest
• Handles

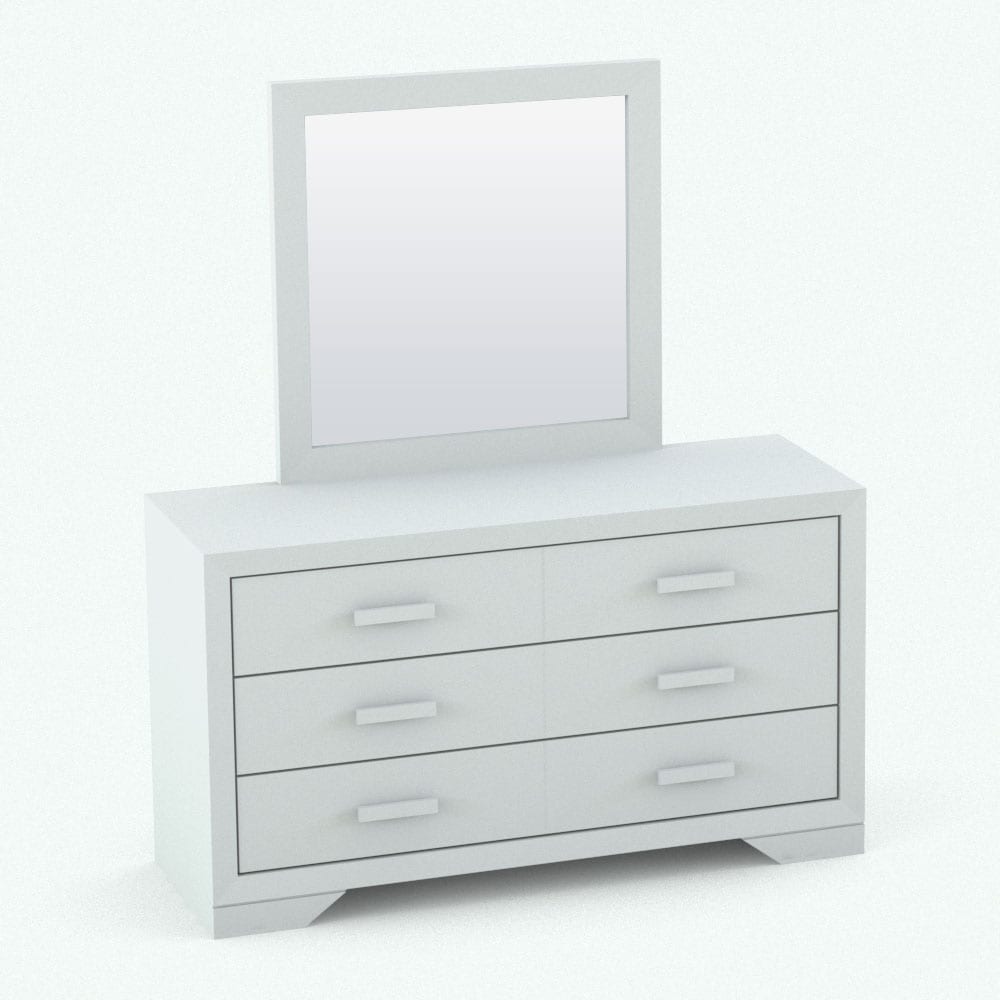

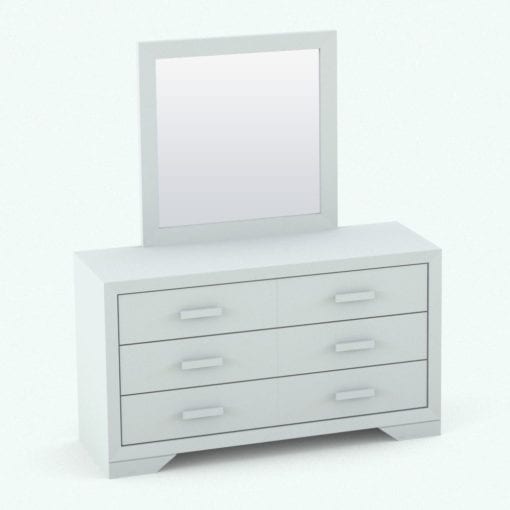

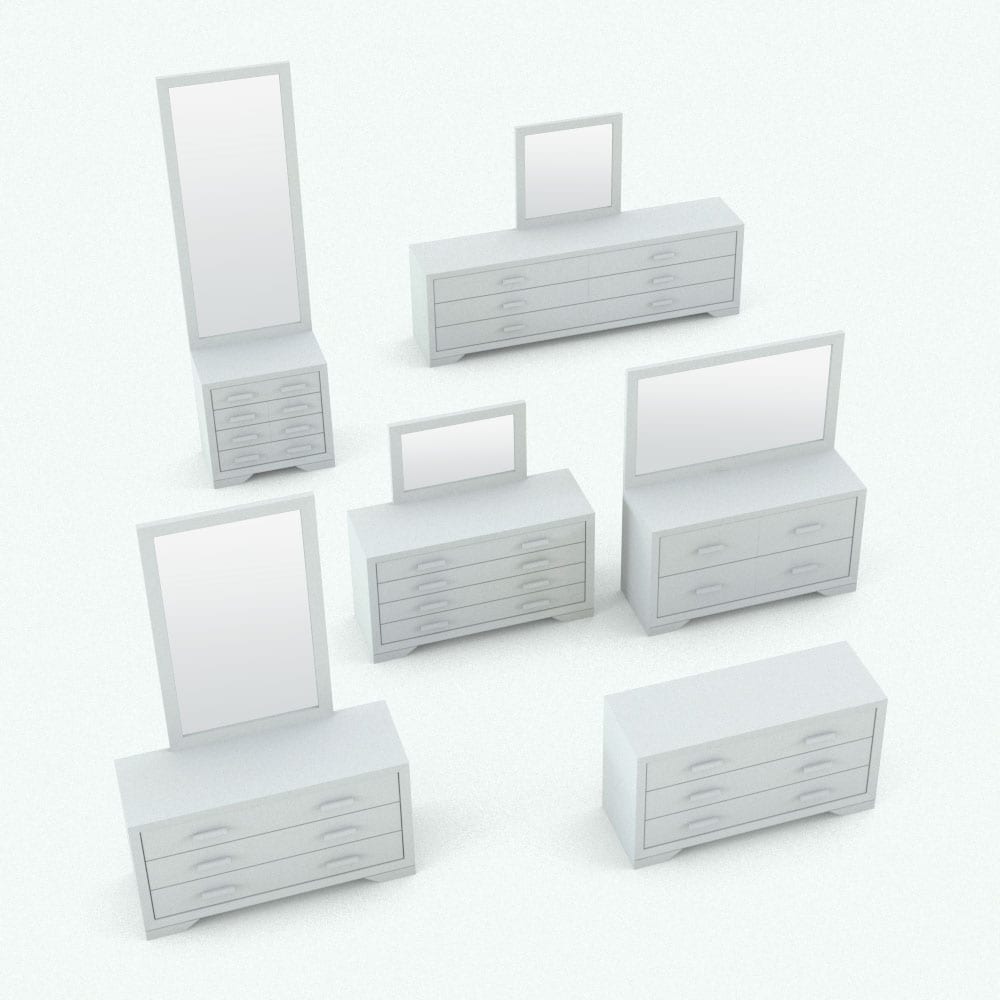

Dresser

Width, height, depth and number of drawers:

• Minimum width: 3′
• Maximum width: 15′

• Minimum height: 2’6″
• Maximum height: 4′

• Minimum depth: 1’6″
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Mirror width, mirror height and mirror frame thickness:

• Minimum mirror width: 1′
• Maximum mirror width: cannot exceed the total width of the dresser

• Minimum height: 1′
• Maximum height: 10′

• Minimum mirror frame thickness: 1″
• Maximum mirror frame thickness: ((smallest value between mirror width and height)-6″)/2

Mirror can be turned on/off

Material parameters for:

• Dresser
• Handles
• Mirror

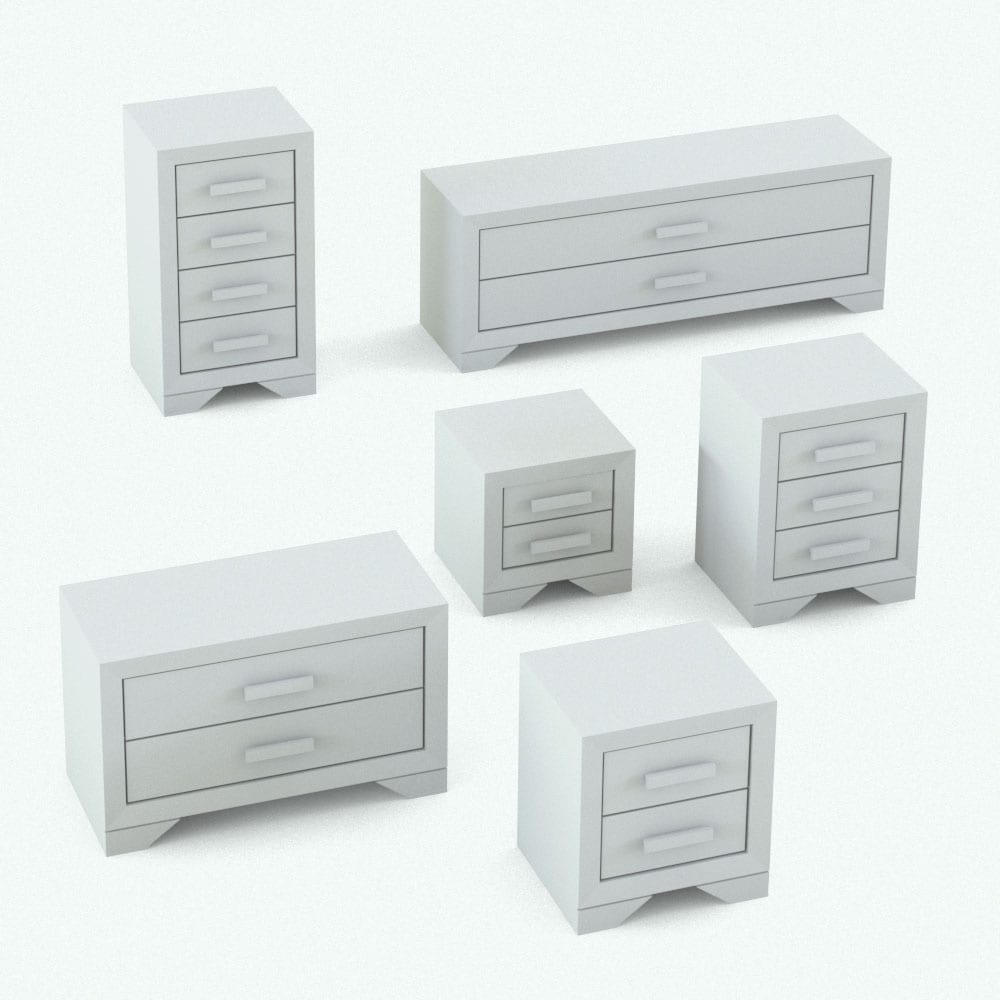

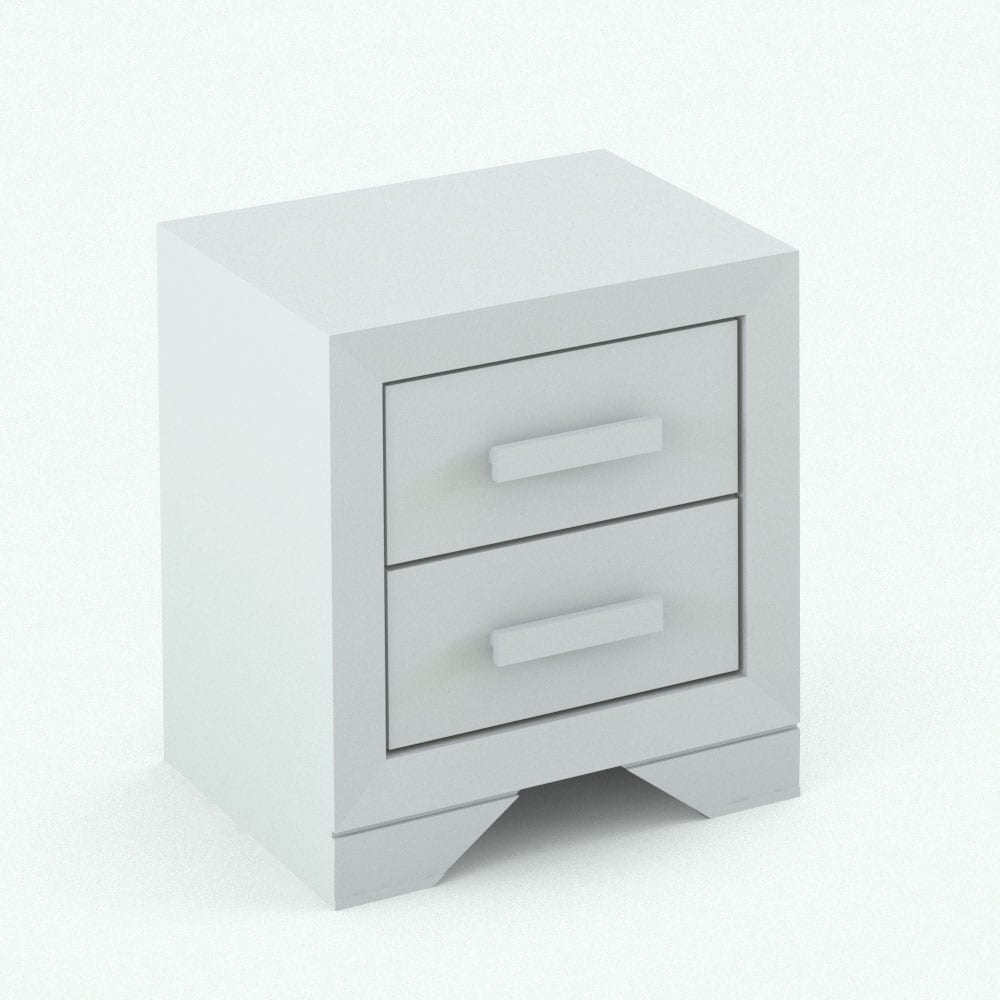

Night Stand

Width, height, depth and number of drawers:

• Minimum width: 1’6″
• Maximum width: 5′

• Minimum height: 1’6″
• Maximum height: 4′

• Minimum depth: 1′
• Maximum depth: 3′

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as the height of each drawer is not smaller than 5″

Material parameters for:

• Night Stand
• Handles

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
