Window – SLW-E3

This fixed quad-pane Revit family window’s dimensions can be changed through the use of parameters. The frame can be buried in the wall to create the illusion of a frame-less window. Additionally, the window can be offsetted within the thickness of the wall to have more control over the look. Also, the stiffeners can be removed for a cleaner look. The window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations that can be turned on/off. Manufacturer’s details can be found inside of the family.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Window
• Materials/textures: No
• Approximate file size (set): 0.85 MB
• File format: .rfa

This window family comes with the following customizable parameters and options:

Width and height:

• Minimum width: 4′
• Maximum width: Unlimited

• Minimum height: 1′
• Maximum height: Unlimited

Window can be centered within the wall thickness or offset to any of the faces (interior or exterior)

Window frame can be buried in the wall/floor to achieve a frame-less look.

Stiffeners can be removed

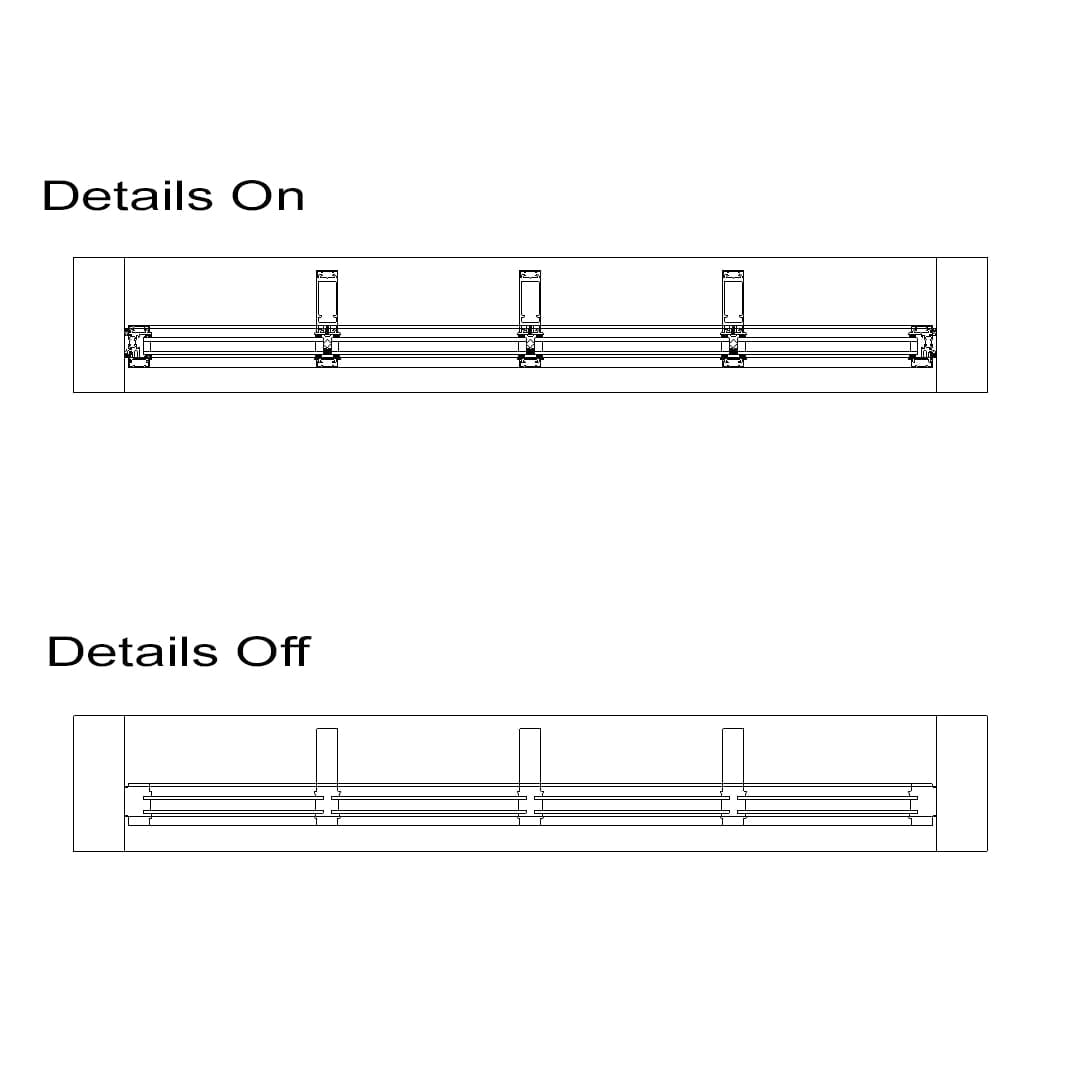

Details in floor plan and elevations can be turned on/off

Combine it with SLW-E2, SLD-OX-XO Bi Part or SLD-XXXX-Multi Slide to create additional variations.

Material parameters for:

• Frame
• Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
