Window – SLW-E2

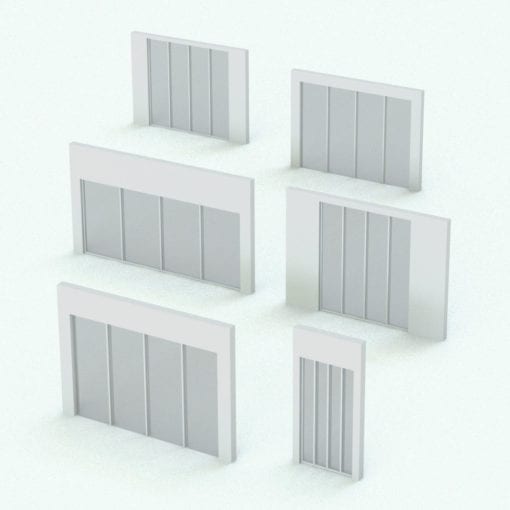

This Revit family quad-pane fixed window’s dimensions can be changed through the use of parameters. The frame can be buried in the wall to create the illusion of a frame-less window. Additionally, the window can be offsetted within the thickness of the wall to have more control over the look. Combine this window with other SLW windows to create more variations and options. The window comes with highly-detailed cross-section profiles of the frames for the floor plan and the elevations that can be turned on/off. Manufacturer’s details can be found inside of the family.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Window
• Materials/textures: No
• Approximate file size (set): 0.76 MB
• File format: .rfa

This Revit family window comes with the following customizable parameters and options:

Width and height:

• Minimum width: 4′
• Maximum width: Unlimited

• Minimum height: 1′
• Maximum height: Unlimited

Window can be centered within the wall thickness or offset to any of the faces (interior or exterior)

Window frame can be buried in the wall/floor to achieve a frame-less look.

Details in floor plan and elevations can be turned on/off

Combine it with SLW-E3 or SLW-E4 to create additional variations.

Material parameters for:

• Frame
• Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
