Rectangular Pool With Hot Tub

Make your exterior spaces feel finished and luxurious with this parametric rectangular Revit pool family that includes a hot tub. Plenty of parameters/options to change/choose from make this family a very flexible and easy to use swimming pool. Five types of handrails, three types of diving boards and three types of ladders are some of the features that are included in this parametric family. Additionally, this pool features drains and returns. The customizable width and length of the pool, along with the customizable visibility of several of its parts (ladders, handrails and diving boards) make this family unique. Remove the hot tub all together to have a beautiful rectangular swimming pool. This family attaches to faces (floor for example) and it creates a hole in it automatically for ease of use. Ideal for houses, hotels, gyms, community centers, etc., this family is certainly a must-have item in your library.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 1.78 MB
• File format: .rfa

This rectangular pool with hot tub Revit family comes with the following customizable parameters and options:

Width and length:

• Minimum width: 12′ when hot tub is on and 7′ when it’s off
• Maximum width: unlimited

• Minimum length: 15′ when hot tub is on and 13′ when it’s off
• Maximum length: unlimited

Pool frame width: 2′ 6″ (fixed width)

Pool comes with the following objects:

• Pool Ladder
• Diving Board
• Handrail
• Drains
• Returns

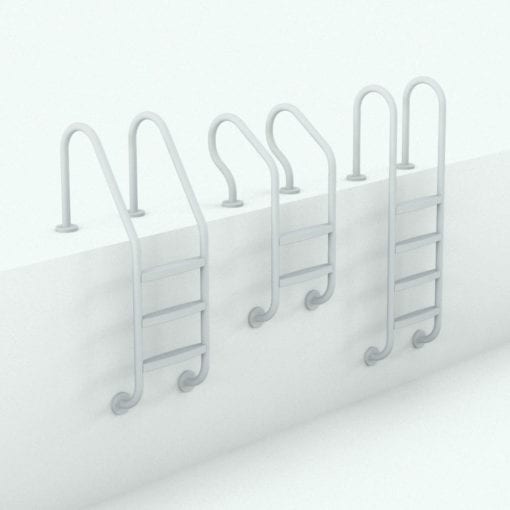

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

Diving board base comes in three different types (shapes) and three different lengths

Handrail comes in five different types (shapes)

The following objects can be turned on/off (visibility):

• Hot Tub (if hot tub is turned off, the pool becomes rectangular)
• Pool Ladder
• Diving Board
• Handrail

Material parameters for:

• Pool Concrete
• Pool Frame
• Pool Water
• Hot Tub Water
• Pool Ladder
• Diving Board Base
• Diving Board
• Handrail
• Pool Drain Inside
• Pool Drain
• Pool Return

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
