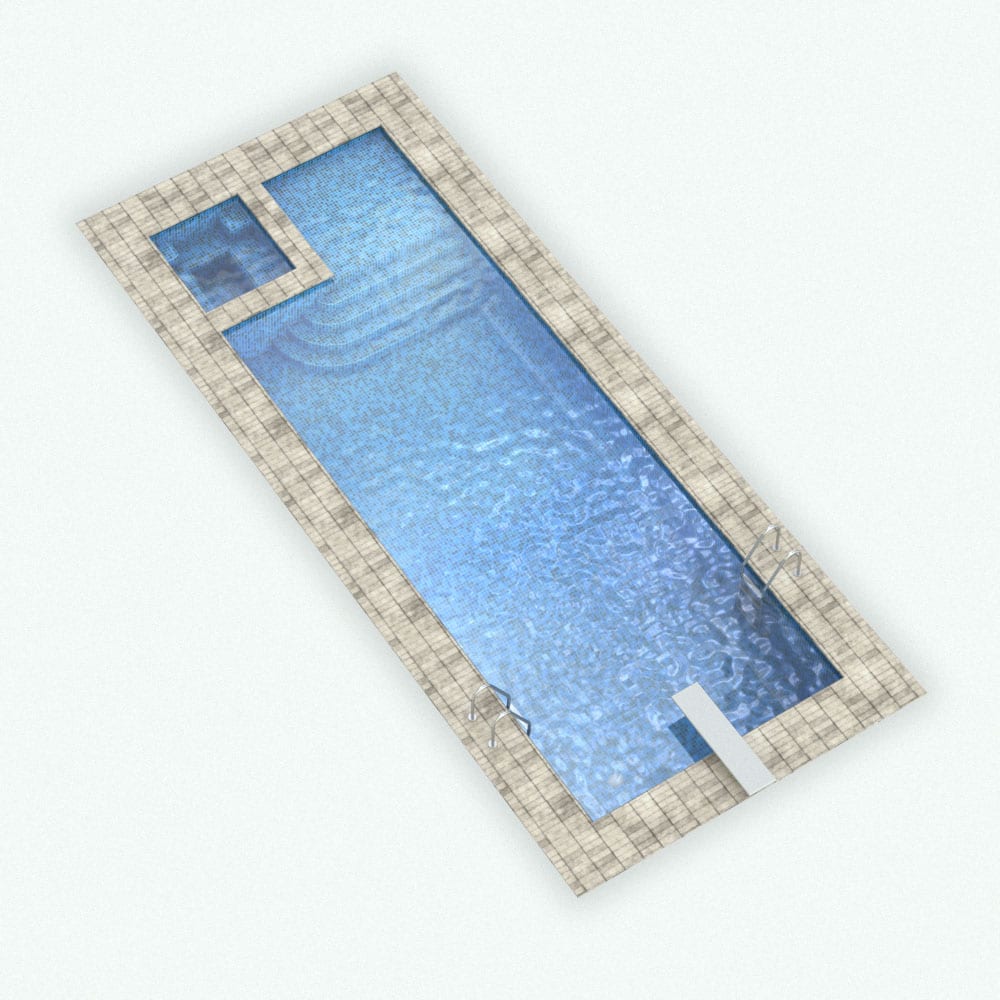

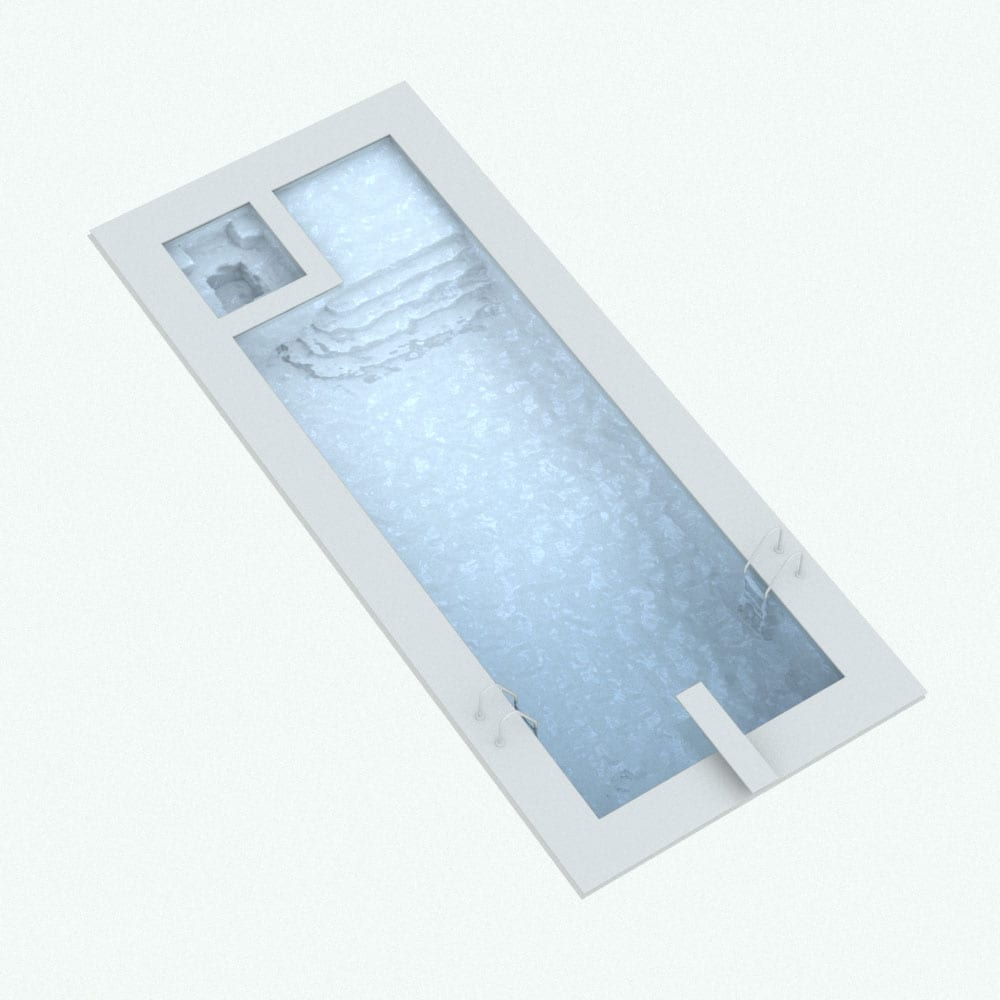

Long Rectangular Pool With Hot Tub

Make your exterior spaces feel finished and luxurious with this parametric rectangular Revit pool family includes a hot tub. Ideal for residences, hotels, community centers, etc., this family attaches to floor faces and it creates a hole in it automatically for ease of use. Plenty of parameters/options to change/choose from make this family a very flexible and easy to use product. Three sizes of hot tub, three types of diving boards and three types of ladders are some of the features that are included in this parametric family. Additionally, this pool features drains and returns. The customizable width and length of the pool, along with the customizable pool frame width and the visibility of several of its parts (ladders and diving boards) make this family unique. Remove the hot tub all together to have an elegant rectangular swimming pool. A must-have family in everyone’s library.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 2.07 MB
• File format: .rfa

This Revit family long rectangular pool with hot tub comes with the following customizable parameters and options:

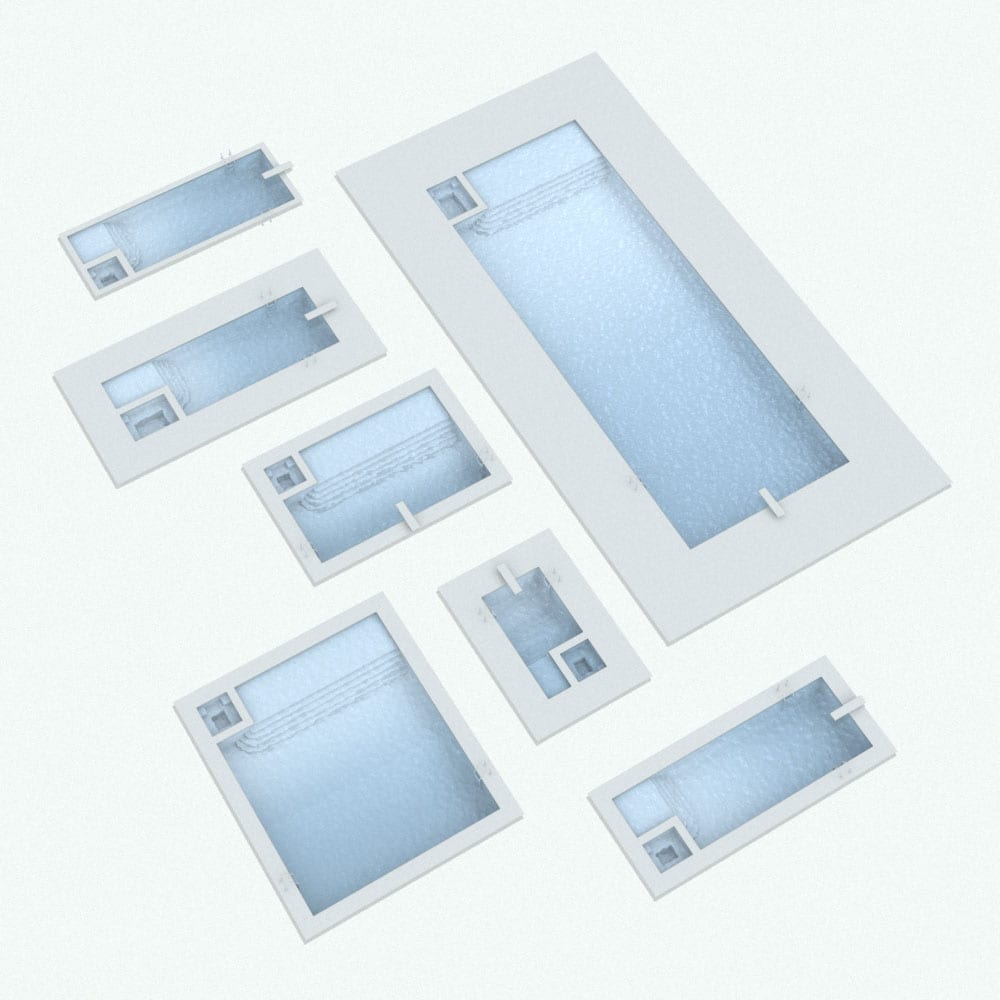

Width and length:

• Minimum width: 11′ (including the smallest hot tub)
• Maximum width: unlimited

• Minimum length: 22′
• Maximum length: unlimited

Pool frame width:

• Minimum frame width: 1′
• Maximum frame width: 30′

Hot tub size can be changed between three sizes:

• Size 1: 6’x6′ (approx 4-5 people)
• Size 2: 7’x7′ (approx 6-7 people)
• Size 3: 7’x9′ (approx 8-10 people)

Pool comes with the following objects:

• Pool Ladder
• Diving Board
• Drains
• Returns

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

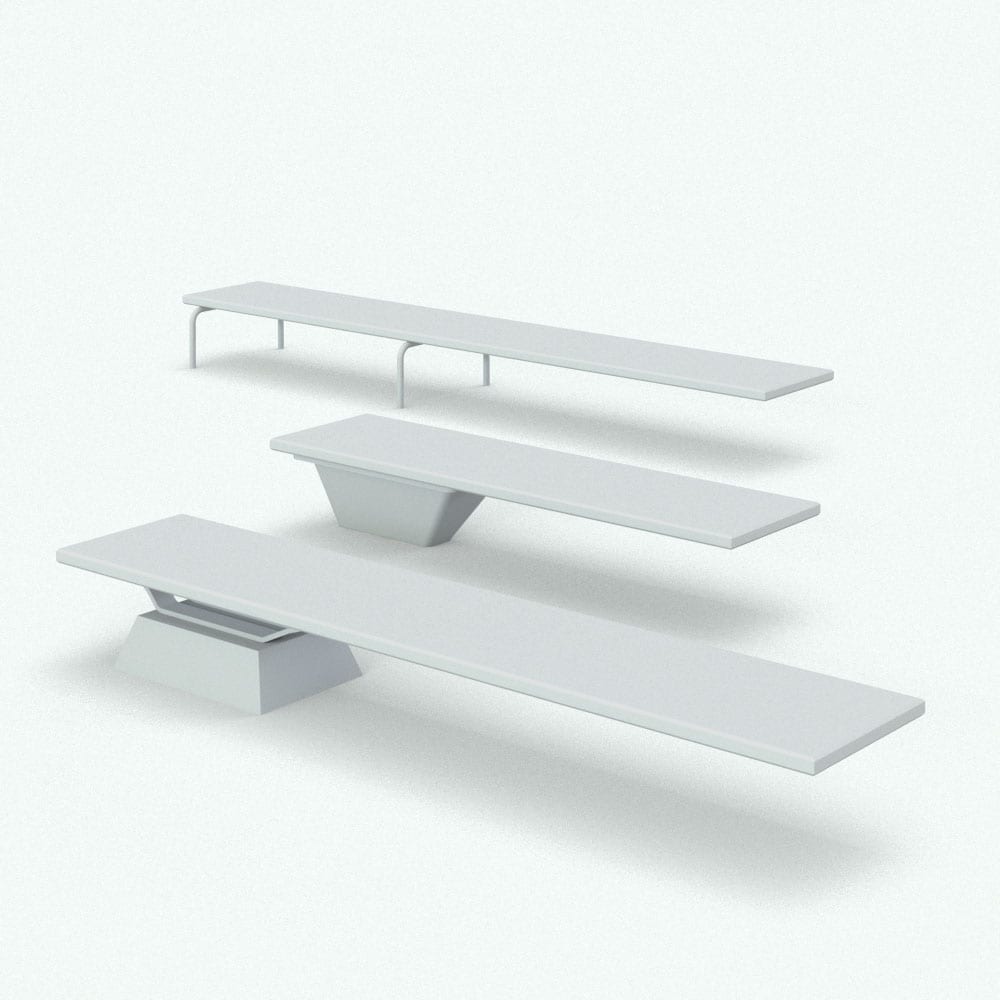

Diving board base comes in three different types (shapes)

The following objects can be turned on/off (visibility):

• Pool Ladder
• Diving Board

Material parameters for:

• Pool Concrete
• Pool Frame
• Pool Water
• Hot Tub Water
• Pool Ladder
• Diving Board Base
• Diving Board
• Pool Drain
• Pool Return

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
