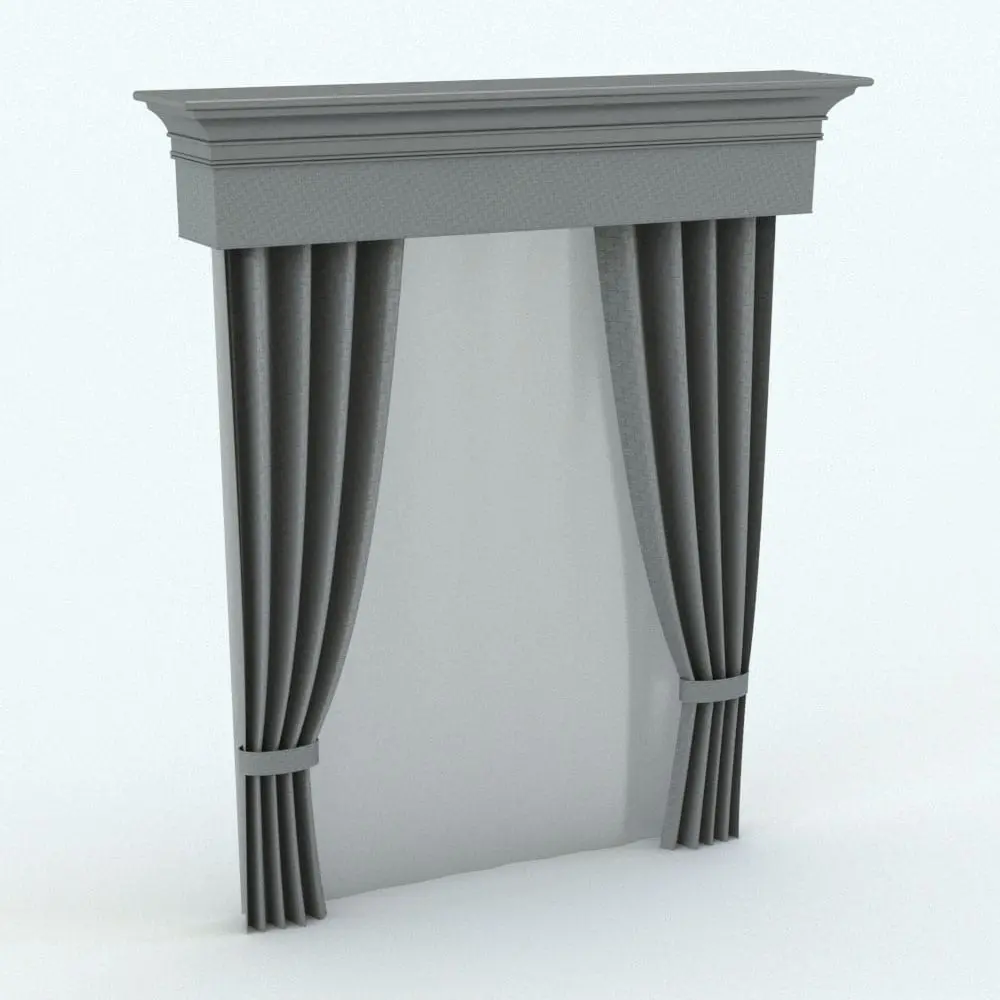

Classic Curtain Revit Family rendered in 3D with a gray textured fabric material and a semi-transparent back curtain. These Revit curtains are fully parametric, easy to use and ready to render. Just load them into your project, select the materials (or use the provided ones) and hit the render button for instant results. Don't wait any longer and add this Classic Curtain Revit Family to your cart today.

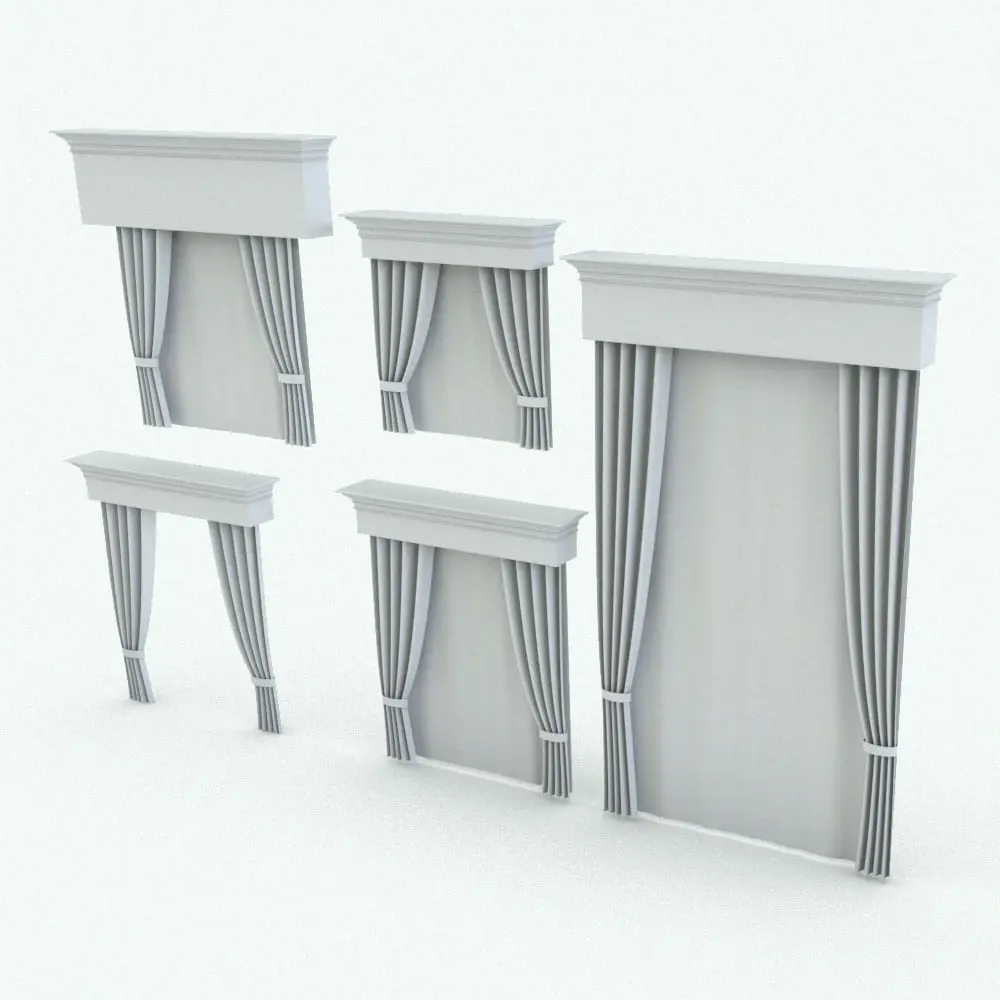

Classic Curtain Revit Family in different sizes and configurations to showcase its parametric flexibility. Ideal for living rooms, bedrooms, offices and more, this curtain Revit family will make your spaces look elegant and refined. Get it today and see for yourself.

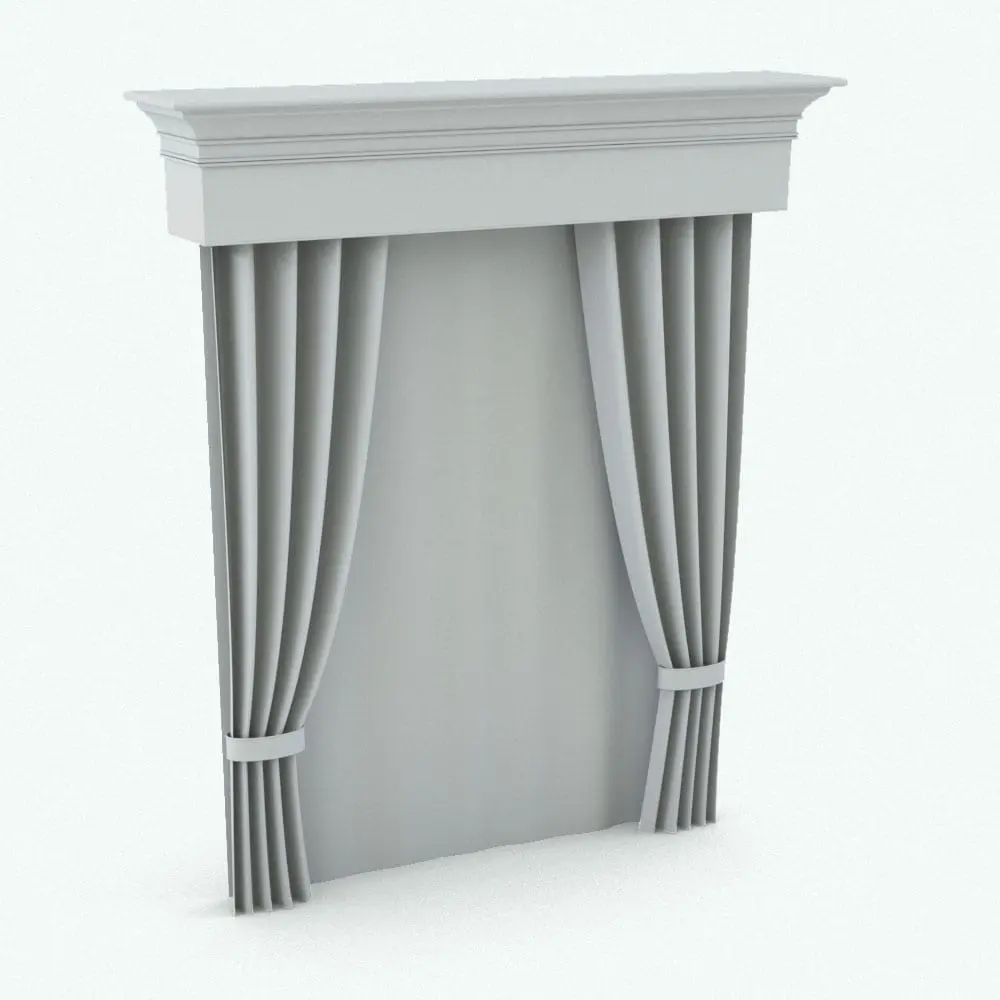

Classic Curtain Revit Family in 3D and rendered without any materials (ambient occlusion style) to showcase the details better. Ideal for interior design projects ranging from classical to contemporary and eclectic, this curtain Revit family will make your spaces stand out in just a few clicks.

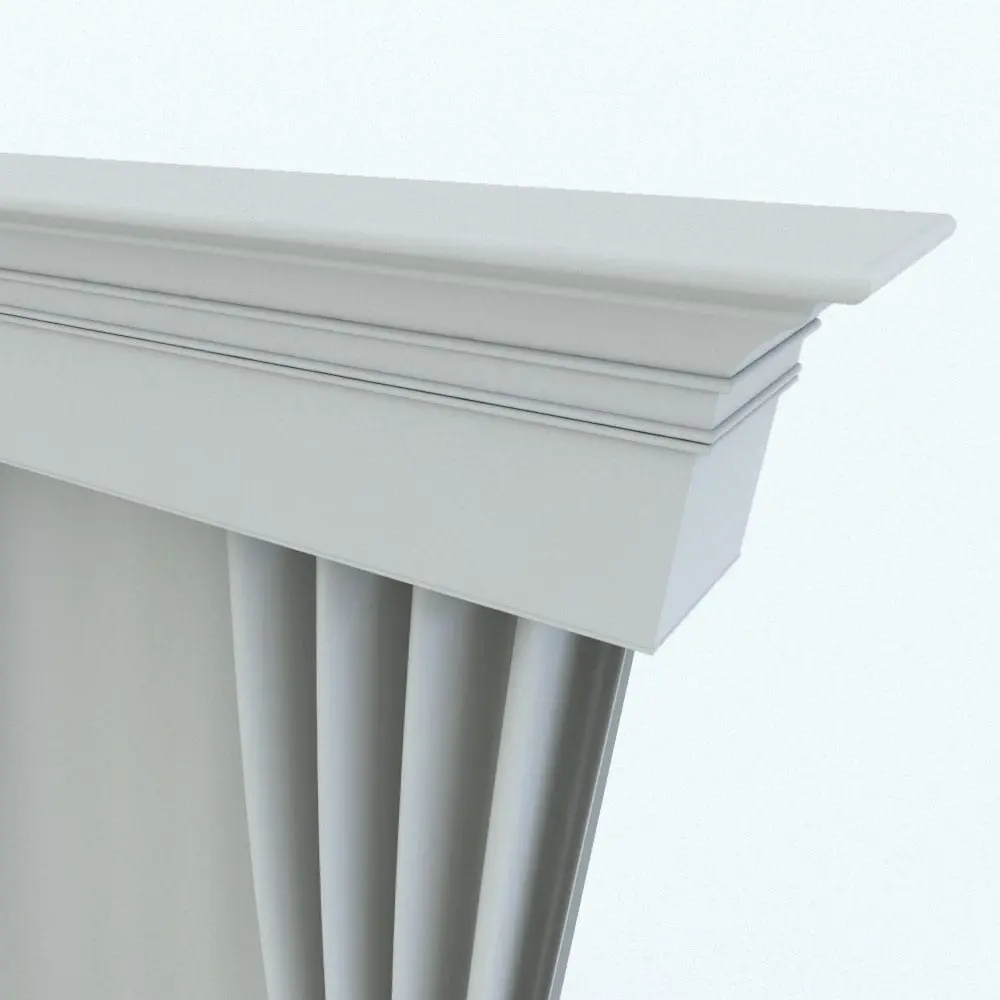

Classic Curtain Revit Family detail of the top molding. This top molding (as well as the curtains) is fully parametric and it will adjust to your project requirements in just a few clicks. Don't wait any longer and get this Classic Curtain Revit Family today.

Classic Curtain Revit Family

Name: Classic Curtain Revit Family
Price: 4.99 USD
Availability: InStock

rfa

$4.99

Categories: Curtains, Curtains and Blinds, Curtains and Blinds, Curtains and Blinds, Decorative Accents, Softgoods Tags: classic, cortinas, curtains, drapery, revit, revit families, revit family, rfa

The Classic Curtain Revit Family is designed to bring timeless elegance and functionality to your interior design projects. This Revit curtain set features full-length drapery panels with a traditional tie-back style, paired with a decorative top valance for a refined finish. The Revit curtains are meticulously detailed, with pleated fabric adding depth and texture, making them suitable for both formal and casual spaces.

Fully parametric, this Classic Curtain Revit Family allows for customization of curtain and valance dimensions, materials and more to match any project requirements. Whether used in residential or commercial settings, the Classic Curtain Revit Family adds a sophisticated touch to windows, blending seamlessly with traditional or transitional design styles.

Looking for other types of Revit curtains or blinds? Click HERE to browse our existing selection of curtains/blinds.

For a detailed description of parameters and materials of this Curtain Revit family, please read the Revit Family Technical Information section below.

Revit Family Technical Information

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Generic Model Face Based
Materials/textures: Yes
Approximate file size: 4.98 MB
File format: .rfa

This Classic Curtain Revit Family comes with the following customizable parameters and options:

Curtain Width:

Minimum width: 4′
Maximum width: 20′

Curtain length:

Minimum length: 4′
Maximum length: 20′

Valance vertical length of this curtain Revit family:

Minimum valance vertical length: 6″
Maximum valance vertical length: Length*0.25

Valance extra width:

Minimum valance extra width: 1/4″
Maximum valance extra width: Length

You can remove the transparent back curtain for a more open look.

This Classic Curtain Revit Family comes with material parameters for:

Curtain
Valance
Moulding
Transparent Curtain
Ribbons

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
