Window Blinds Decoration Revit Family rendered in dark chocolate colored wood.

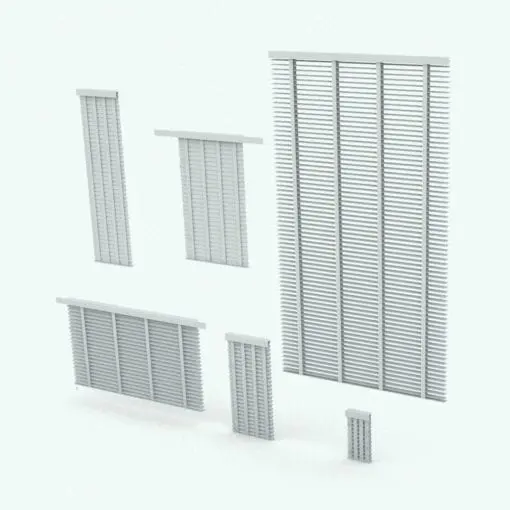

Window Blinds Decoration Revit Family rendered in ambient occlusion mode and displayed in multiple sizes to showcase its parametric behavior.

Window Blinds Decoration Revit Family corner detail rendered in ambient occlusion mode. You can see here the parametric strings that are also included in this Revit family.

Window Blinds Decoration Revit Family

Name: Window Blinds Decoration Revit Family
Price: 4.49 USD
Availability: InStock

rfa

$4.49

Categories: Curtains and Blinds, Curtains and Blinds, Curtains and Blinds, Decorative Accents Tags: blinds, cortina, cortinas, curtain, curtains, persiana, rfa, shutters, venetian

Tired of basic renders that look unfinished and “cold”? Cozy up your spaces with this Window Blinds Decoration Revit Family that can open, close, rotate and even move further in/out from the wall for full control on their look. And if you want further customization, you can even change the lengths of the strings individually to give an even more realistic look to your spaces and renders.

Don’t lose time drawing everything manually, get this Window Blinds Decoration Revit Family and make your renders and Revit projects stand out from the crowd.

Revit Family Technical Information

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Generic Model Face Based
Materials/textures: Yes
Approximate file size: 0.70 MB
File format: .rfa

This window blinds decoration Revit family comes with the following customizable parameters and options:

Blinds width, vertical length and angle:

Minimum width: 1′
Maximum width: 40′

Minimum vertical length: 1’6″
Maximum vertical length: 20′

Minimum angle: -80 degrees
Maximum angle: 80 degrees

You can change all four string lengths of this window blinds decoration Revit family using a multiplier value (from 1.25 to 4). This multiplier value is not related to the actual length, but to a percentage of the vertical length.

You can also turn strings on and off

Distance from wall:

Minimum distance: -1″
Maximum distance: 4″

Opening percentage:

Minimum opening percentage: 0%
Maximum opening percentage: 80%

Additional headrail width can be added:

Minimum additional headrail width: 0′
Maximum additional headrail width: 6′

Material parameters for:

Blinds
Headrail
Strings
Vertical Bars

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
