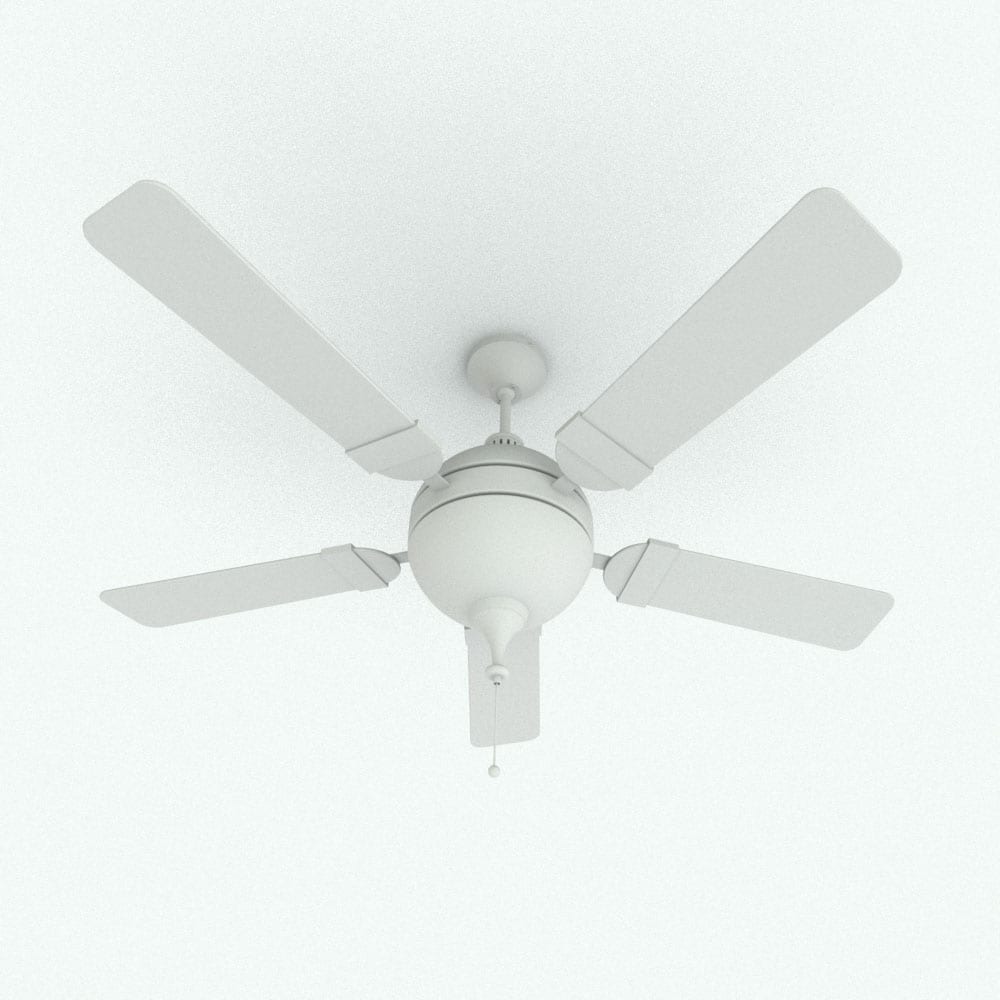

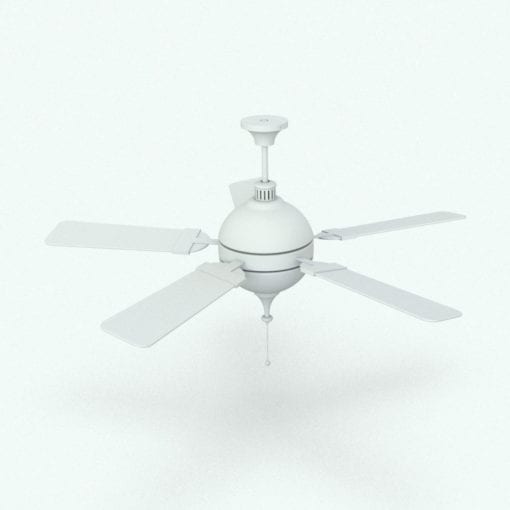

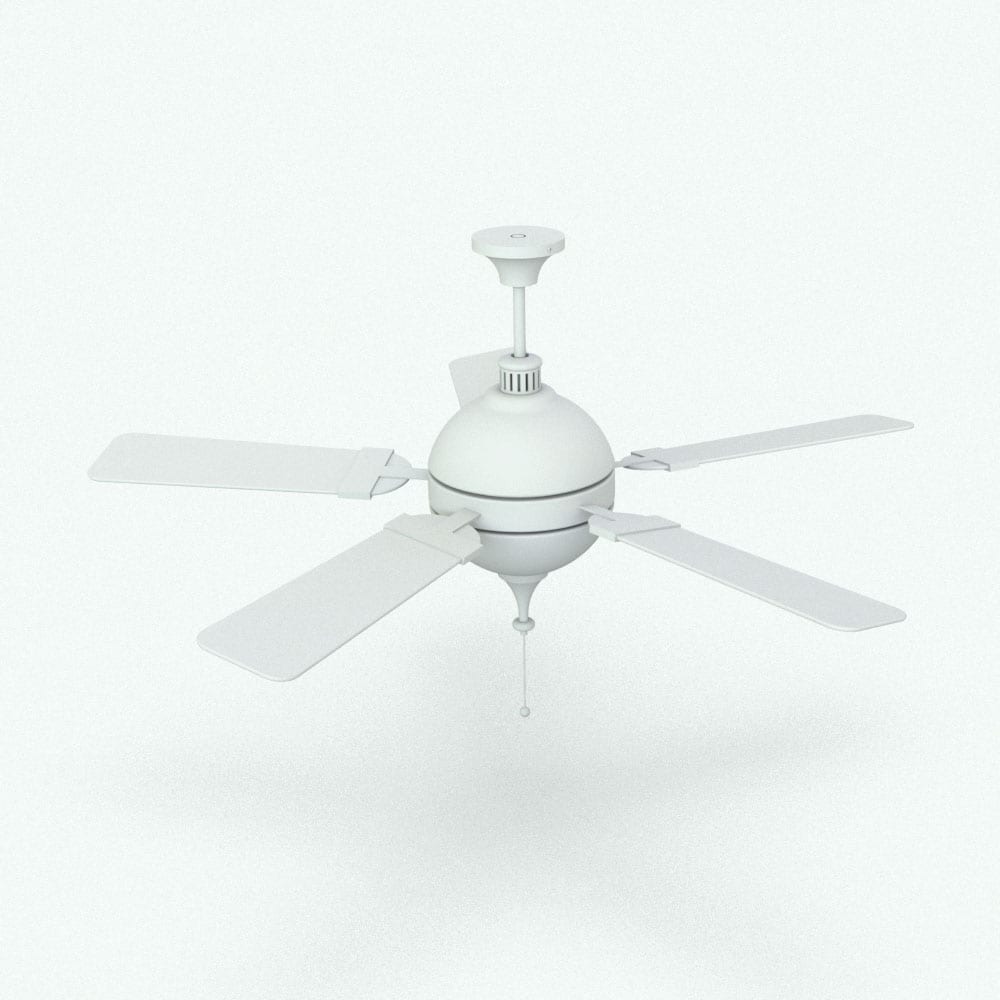

Ceiling Fan Sphere

Decorate your projects with this parametric traditional Revit ceiling fan. With plenty of options to change, this family is the perfect choice for any room size and ceiling height. Changing parameters like the distance from the ceiling, the number of blades, the blades length and the chains lengths and visibility will make this family look different in every project you use it in.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 0.87 MB
• File format: .rfa

This Revit family ceiling fan with a sphere light comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 4″
• Maximum distance: 15′

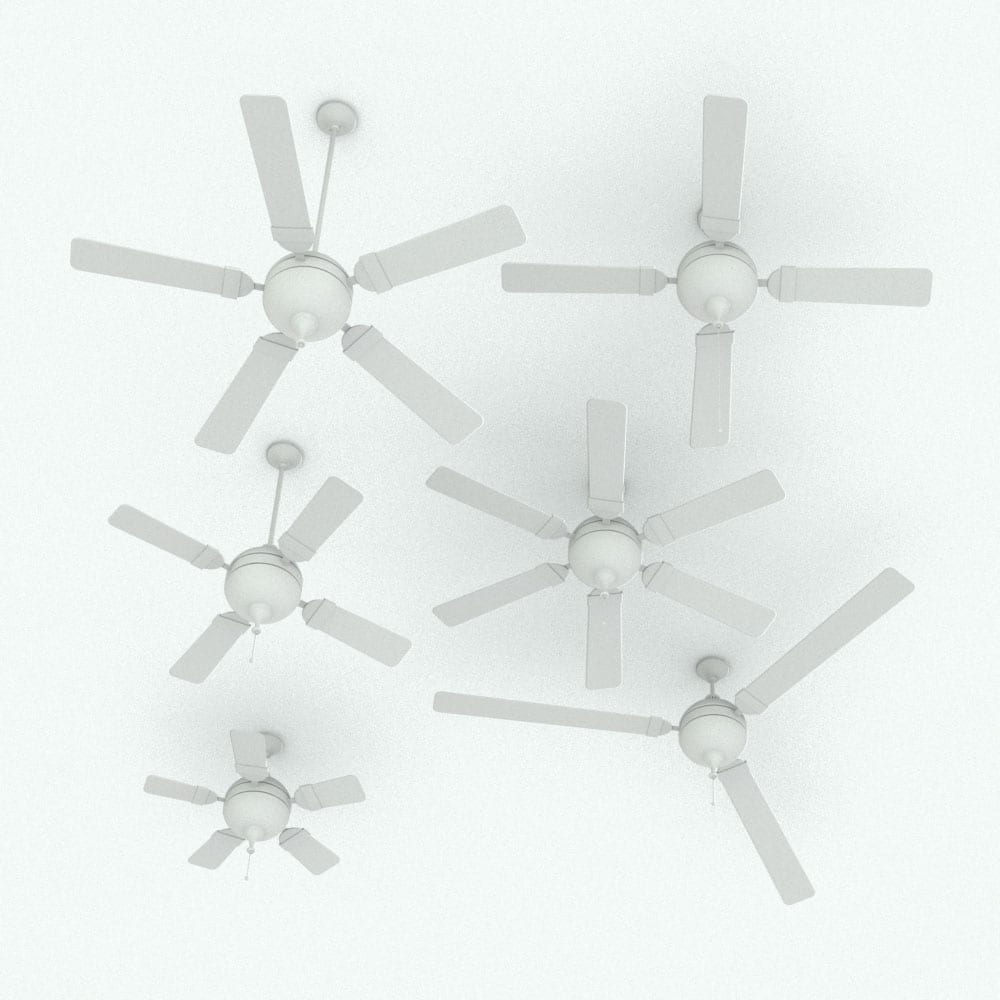

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chains:

• Minimum length: 6″
• Maximum length: 8′

Chain can be turned on/off

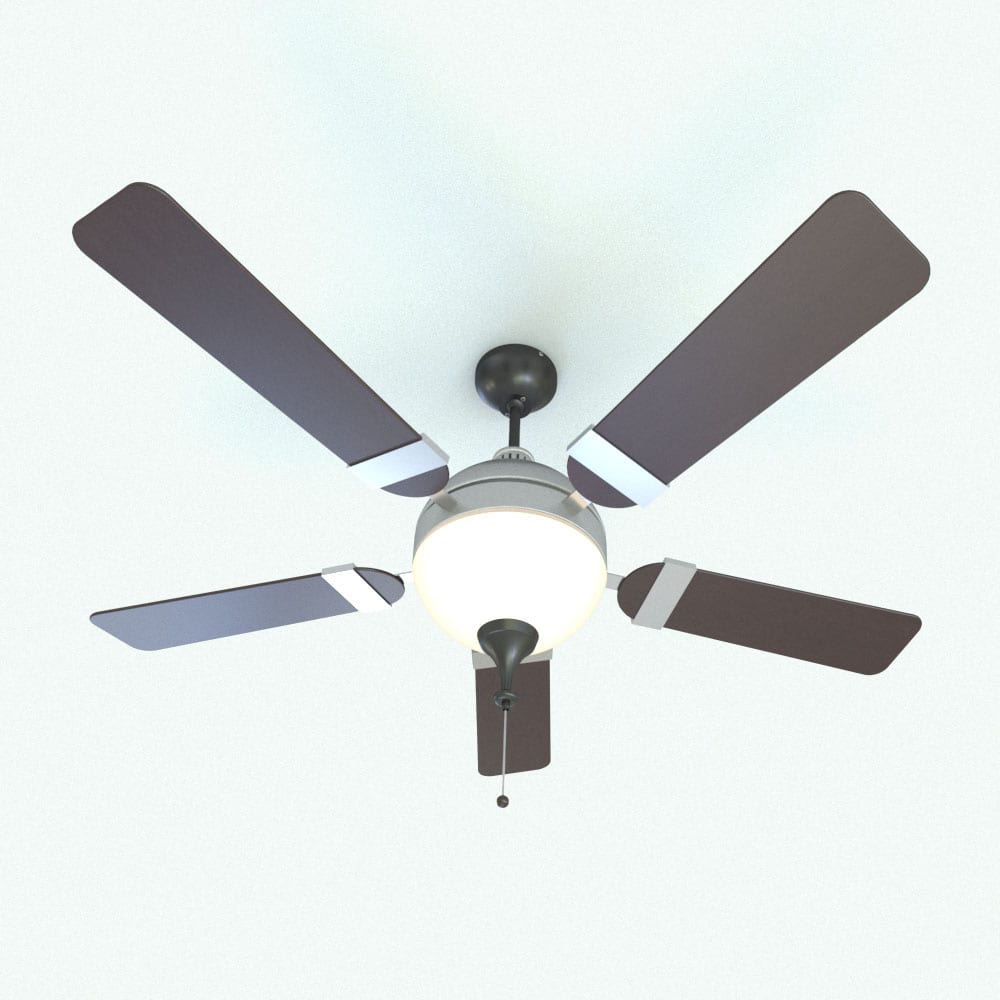

Material parameters for:

• Housing
• Mounting
• Blades
• Blades Details
• Downrod
• Light+
• Chain
• Handle
• Ball
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
