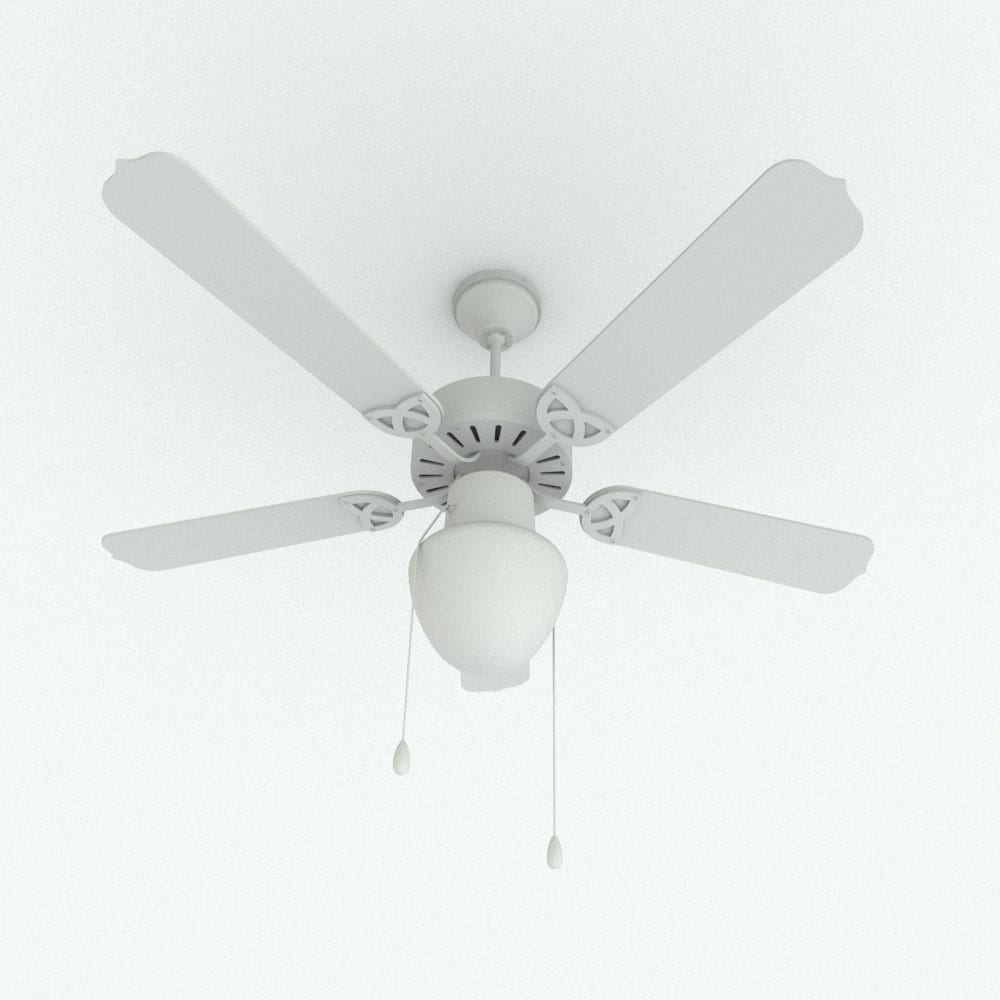

Traditional Ceiling Fan

Decorate your projects with this classic parametric Revit ceiling fan. With plenty of options to change, this family, ideal for interior and exterior spaces, is the perfect choice for any room size and ceiling height. Parameters like the distance from the ceiling, the number of blades, the blades length and the chains lengths will make this family look different and unique in every space.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 1.07 MB
• File format: .rfa

This Revit family ceiling fan comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 6″
• Maximum distance: 15′

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chains can be changed individually:

• Minimum length: 6″
• Maximum length: 8′

Material parameters for:

• Housing
• Light+
• Blades
• Blades details
• Mounting
• Downrod
• Ball
• Chains
• Handles
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
