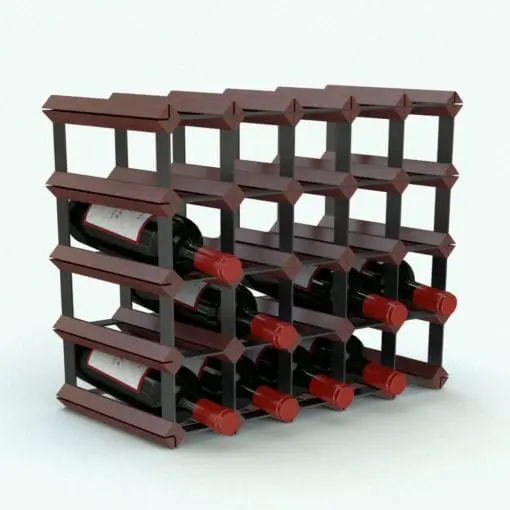

Rhomboids Wine Rack Revit Family

Wine Rack Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.66 MB
• File format: .rfa

Wine Bottle Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.51 MB
• File format: .rfa

This Rhomboids Wine Rack Revit Family comes with the following customizable parameters and options:

Wine Rack Revit Family:

Number of rows and columns:

• Minimum number of rows: 2
• Maximum number of rows: 30

• Minimum number of columns: 2
• Maximum number of columns: 30

This wine rack Revit family comes with back panels per row, which are used to place the bottles in the spaces (included bottle family attaches to faces). Turn these panels off by activating the “Turn Off Back Positioning Panels” checkbox once you have placed the bottles.

Material parameters for:

• Metal
• Rhomboids

Wine Bottle Revit Family:

Type of wine bottle can be changed between red or white wine

Material parameters for:

• Cap
• Bottle
• Label

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
