W-Wine Bar Revit Family rendered in 3D in a light-colored wood finish and with a few red wine bottles in it. This family is fully parametric and easy to use, not to mention that it is also render-ready. Just load the family into your project, load the textures (or use your own) and hit the render button. Don't wait any longer and add this W-Wine Bar Revit Family to your cart today!

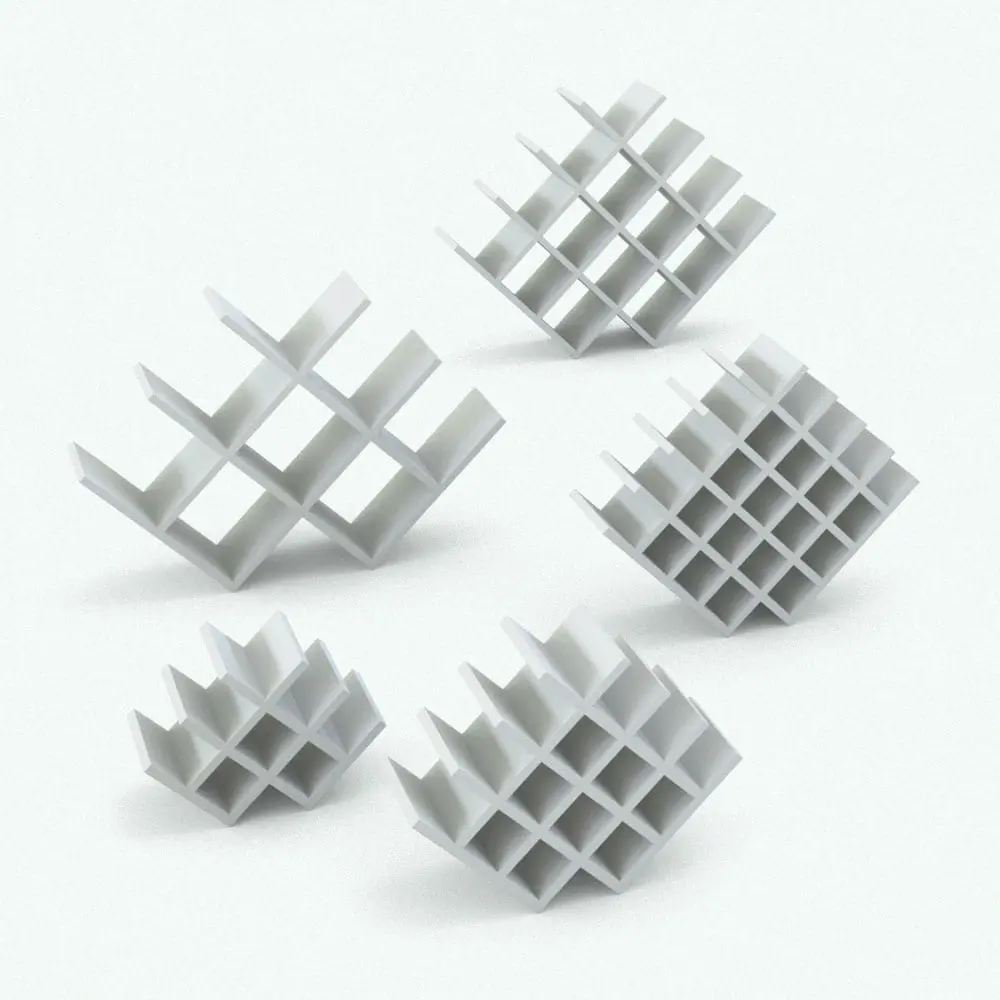

W-Wine Bar Revit Family rendered in black and white (ambient occlusion) and in different sizes and configurations. Ideal for modern and contemporary interior design projects, this wine bar Revit family will make your spaces look expensive and sophisticated. Get it now and see for yourself.

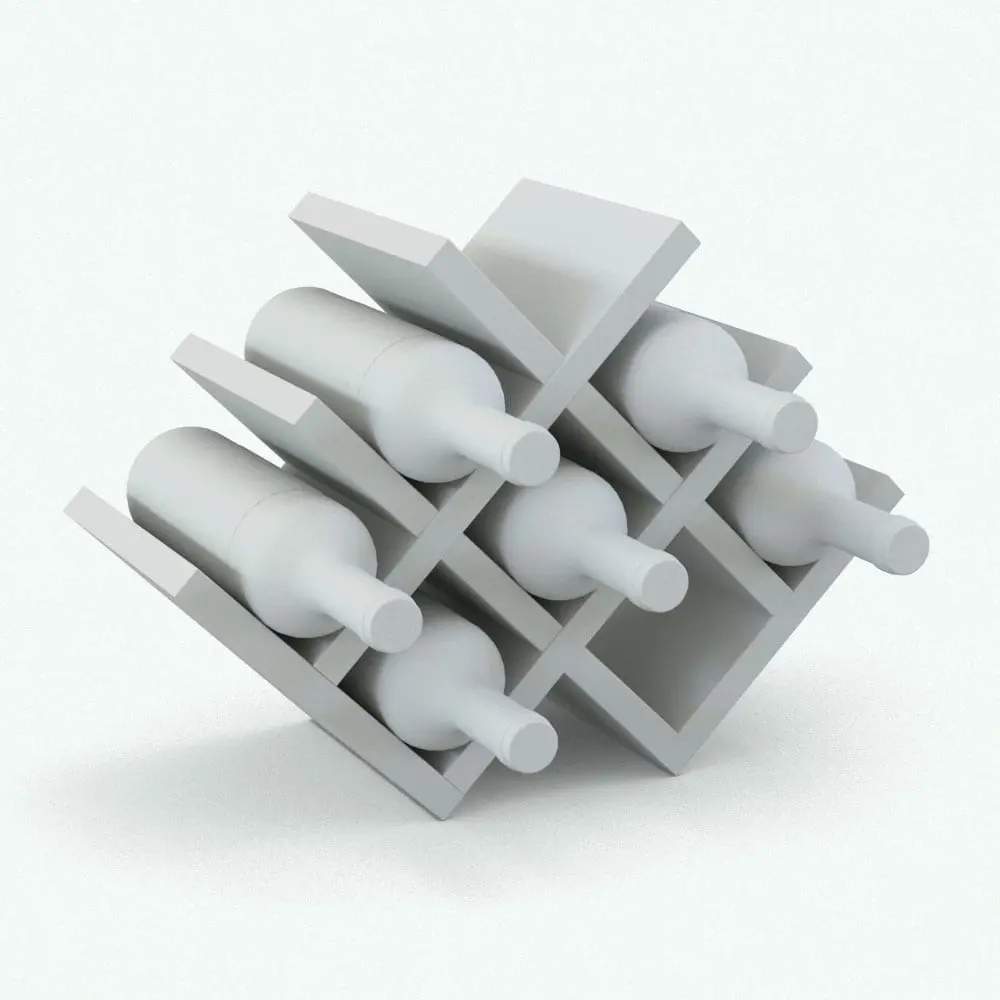

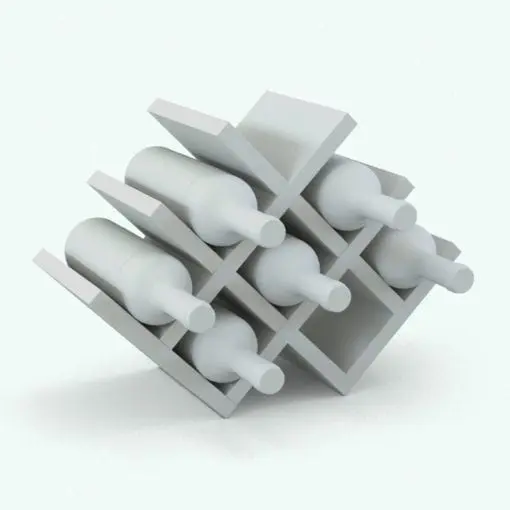

Wine Rack Revit Family rendered in 3D and with no materials to show the shapes better. This family does include all the materials shown on the main image of this product and it is render-ready. Just load this family into your project, load the textures (or use your own) and hit the render button. Get this wine rack Revit family today and see for yourself.

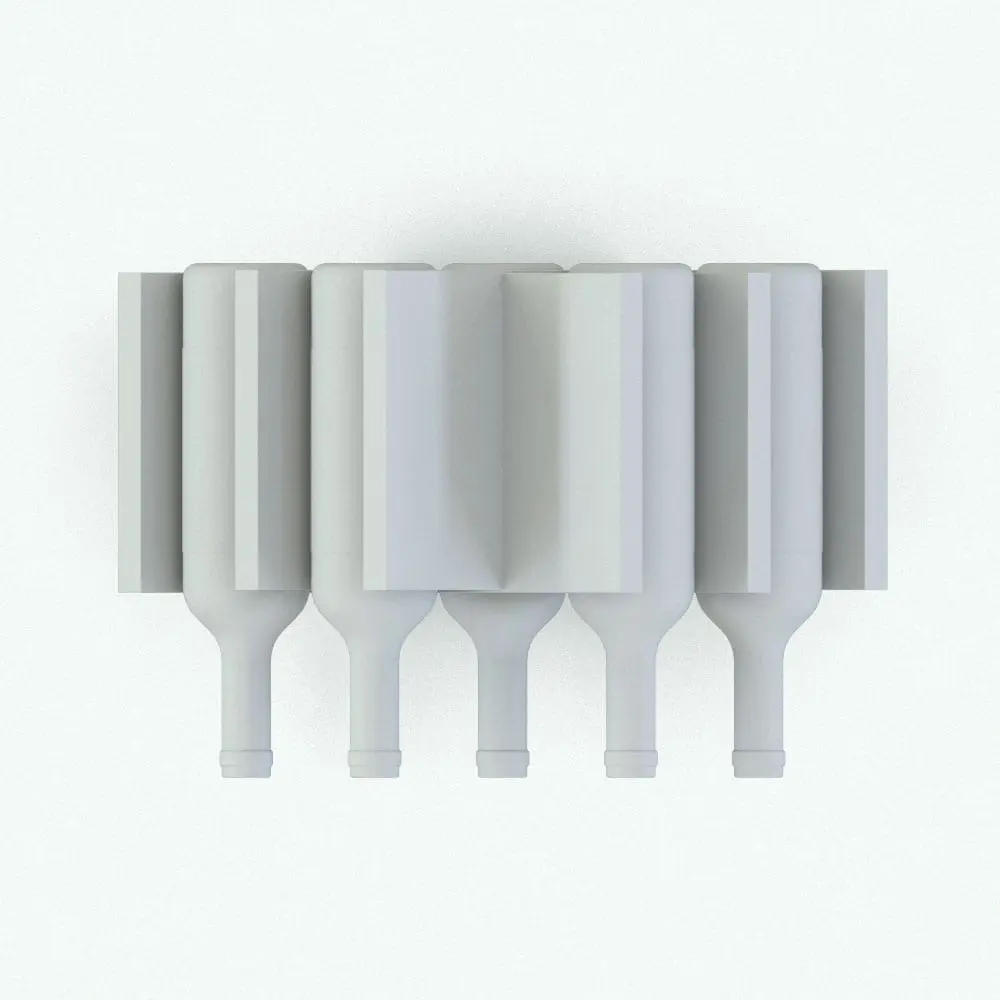

Bar Revit Family in top view and rendered in black and white colors. This family is fully parametric and very easy to use. Whether you need a small wine rack as an accent in your render or a larger wine rack that can hold multiple bottles per "cell", this family has you covered. Get this Revit family today and see how easy and flexible it is.

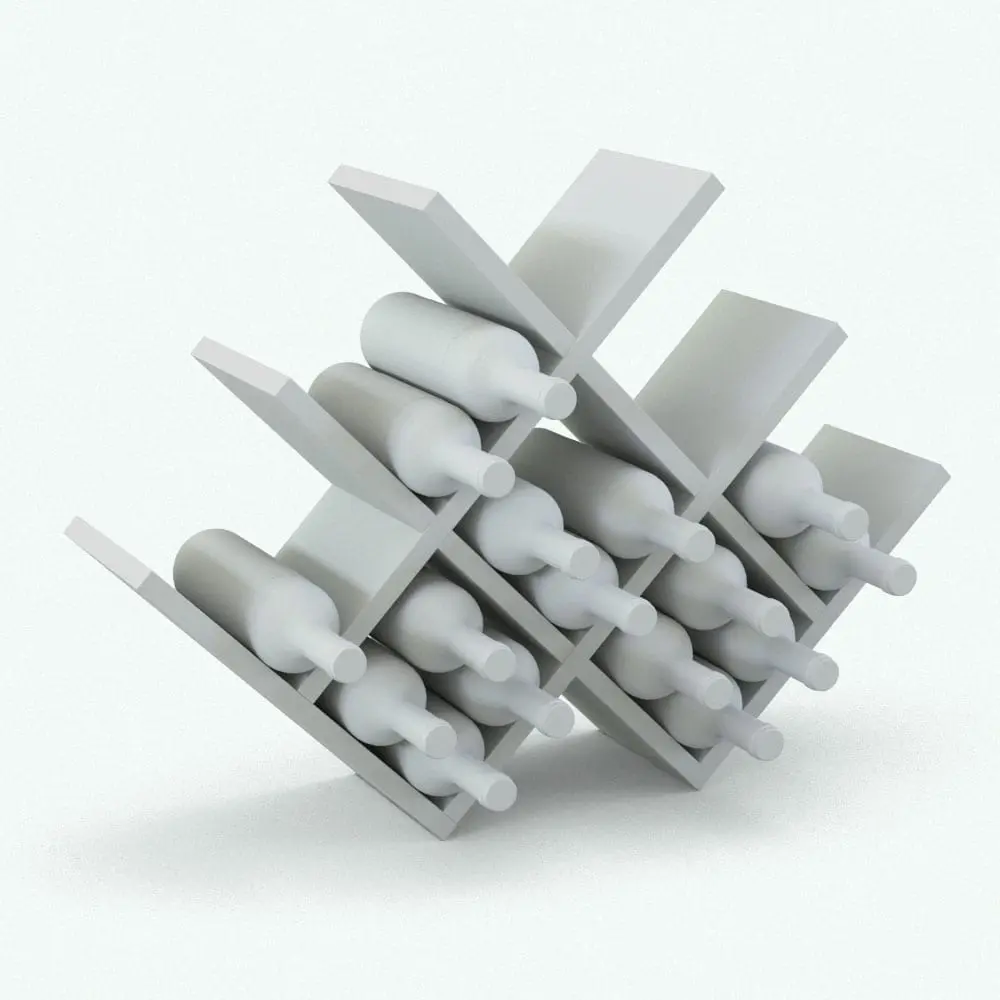

W-Wine Bar Revit Family in a different configuration, where up to 4 bottles can be placed per "cell". This family is fully parametric and it will bring elegance and class to your 3D renderings and projects. Get this Wine Bar Revit Family today and see for yourself.

W-Wine Bar Revit Family

Name: W-Wine Bar Revit Family
Price: 4.49 USD
Availability: InStock

rfa

$4.49

Categories: Decorative Accents, Wine Racks Tags: bar, bottles, racks, rfa, vinos, wine, wine racks

Introduce a modern and functional design element to your projects with the W-Wine Bar Revit Family. This innovative wine rack features a dynamic “W” shape, creating compartments that securely store wine bottles while adding a stylish flair to any space. The family includes a wine bottle Revit family and a back panel to facilitate easy placement, which can be turned off for a clean, finished look.

Fully parametric, this W-Wine Bar Revit Family allows for customization of materials and dimensions, ensuring seamless integration into kitchens, dining areas, wine cellars, or hospitality interiors. Its combination of bold design and practical functionality makes it a versatile choice for residential or commercial projects.

Looking for other types of wine racks? Click HERE to browse all our wine rack and wine bar Revit families.

For a detailed description of parameters and materials of this wine rack Revit family, please read the Revit Family Technical Information section below.

Revit Family Technical Information

Wine Rack Revit Family:

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Generic Model Work Plane Based
Materials/textures: Yes
Approximate file size: 0.55 MB
File format: .rfa

Wine Bottle Revit Family:

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Generic Model Work Plane Based
Materials/textures: Yes
Approximate file size: 0.51 MB
File format: .rfa

This W-Wine Bar Revit Family comes with the following customizable parameters and options:

Wine Bar Revit Family:

Number of cells:

Minimum number of cells: 3
Maximum number of cells: 5

Cell size:

Minimum cell size: 3″
Maximum cell size: 4′

This win bar Revit family comes with a back panel, which is used to place the bottles in the spaces (included bottle family attaches to faces). Turn this panel off by activating the “Turn Off Back Positioning Panel” checkbox once you have placed the bottles.

Material parameter for:

Wine Rack

Wine Bottle Revit Family:

Type of wine bottle can be changed between red or white wine

Material parameters for:

Cap
Bottle
Label

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
