Wall Mounted Wine Rack

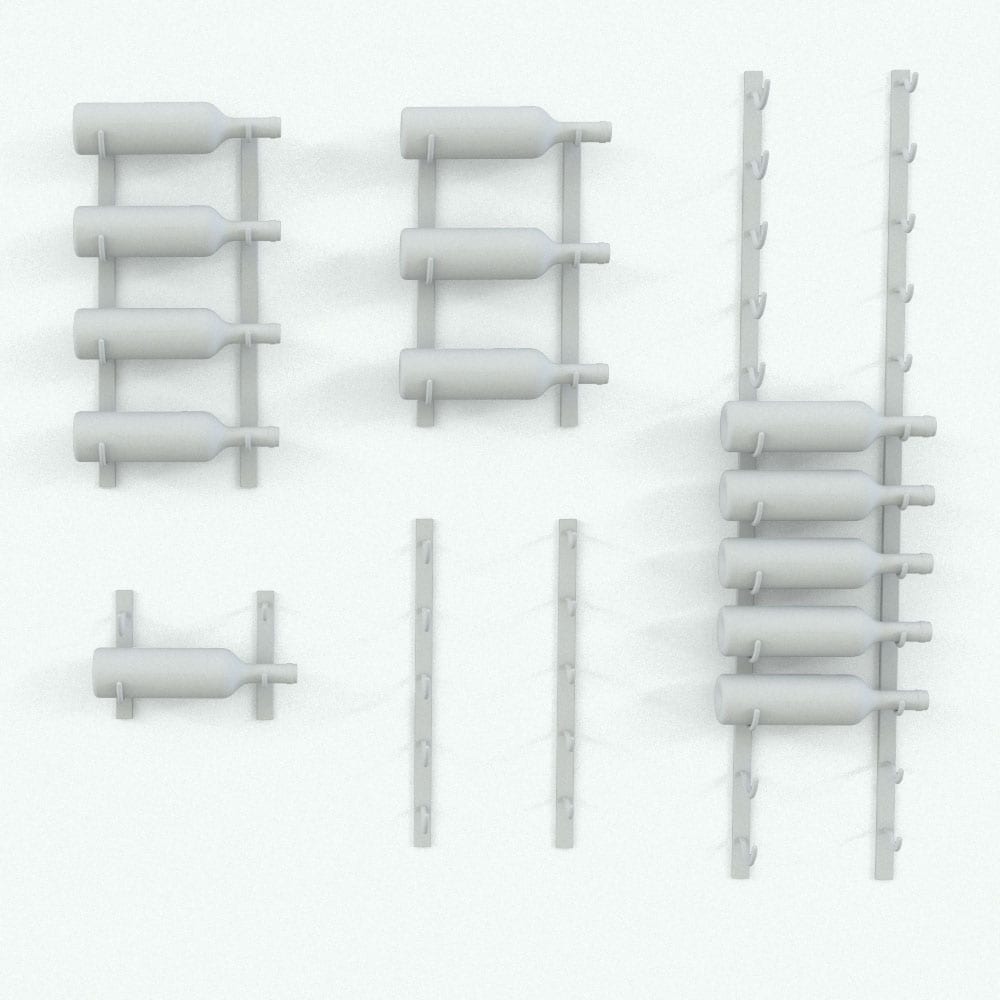

Decorate your bar area or kitchen space with this parametric work plane based Revit wine bottle holder family. The number of bottle spaces, as well as their vertical spacing can be customized to create your own unique-looking wine rack. Choose between red or white bottles of wine to customize the look of this piece even further.

This Revit family includes the wine rack and a wine bottle, and it comes with the following customizable parameters and options:

Wine Rack:

Number of levels and spacing between them:

• Minimum number of levels: 2
• Maximum number of levels: 30

• Minimum spacing between levels: 3-1/4″
• Maximum spacing between levels: 1′

This family comes with a side panel, which is used to place the bottles in the spaces (included bottle family attaches to faces). Turn this panel off by activating the “Turn Off Side Positioning Panel” checkbox once you have placed the bottles.

Material parameter for:

• Wine Rack

Bottle of Wine:

Type of wine bottle can be changed between red or white wine

Material parameters for:

• Cap
• Bottle
• Label

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
