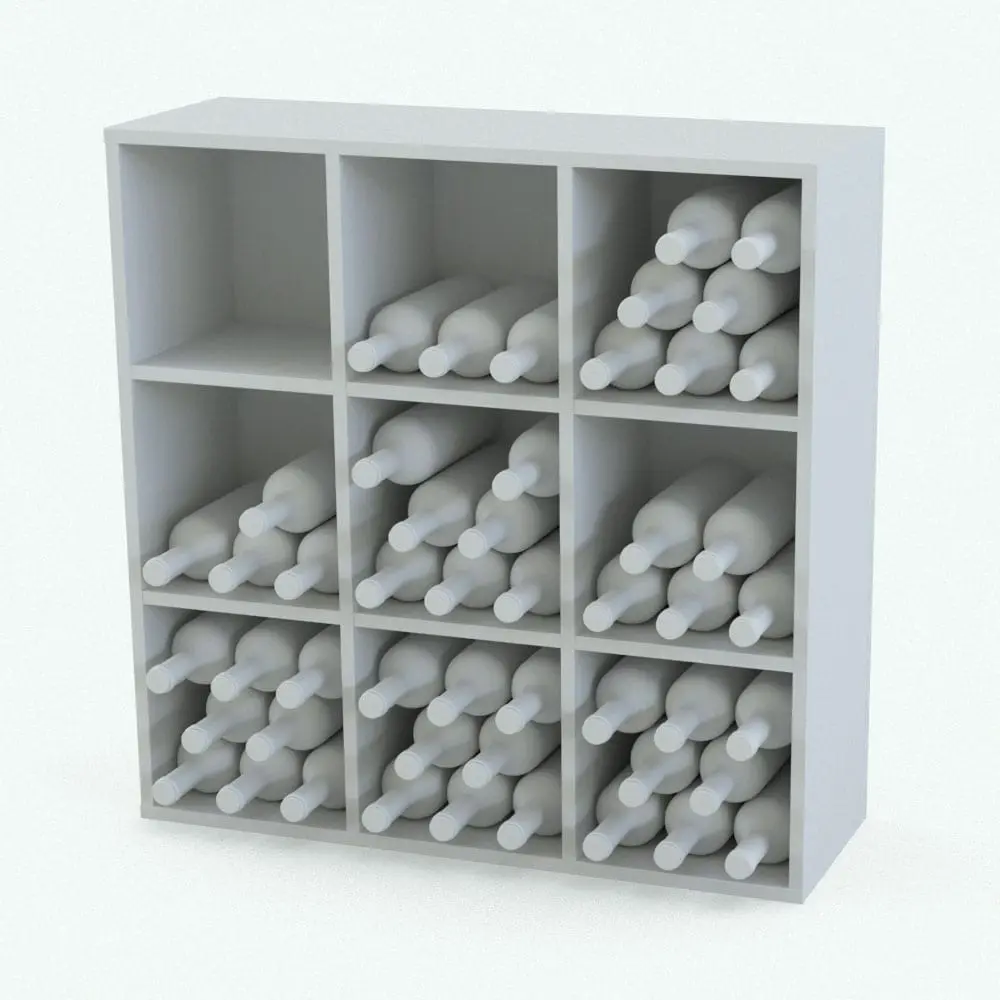

Traditional Squares Wine Rack Revit Family

Wine Rack Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model
• Materials/textures: Yes
• Approximate file size: 0.65 MB
• File format: .rfa

Wine Bottle Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.51 MB
• File format: .rfa

This Traditional Squares Wine Rack Revit Family comes with the following customizable parameters and options:

Wine Rack Revit Family:

Cells can be straight or rotated

Number of Rows and Columns:

• Minimum number of rows+: 2
• Maximum number of rows+: 60

• Minimum number of columns+: 2
• Maximum number of columns+: 60

+ If cells on this wine rack Revit family are rotated, the number of rows and columns is given by the individual “X” shapes (i.e. if the parameters are set to 3 rows and 4 columns, this family will create 3 rows and 4 columns of “X” shapes, thus the number of rotated columns and rows will be different)

Cell sizes (this value is different for straight and rotated cells):

• Minimum cell size for straight squares++: 0′ 3 1/2″
• Maximum cell size for straight squares: 4′

• Minimum cell size for rotated squares+++: 0′ 5 3/4″
• Maximum cell size for rotated squares: 5′

++ Fits one bottle of wine
+++ This dimension is measured horizontally (not diagonally). This 5 3/4″ cell size will be the equivalent to a 3 1/2″ straight cell which will fit one bottle of wine.

Material parameter for:

• Wine Rack

Wine Bottle Revit Family:

Type of wine bottle can be changed between red or white wine

Material parameters for:

• Cap
• Bottle
• Label

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
