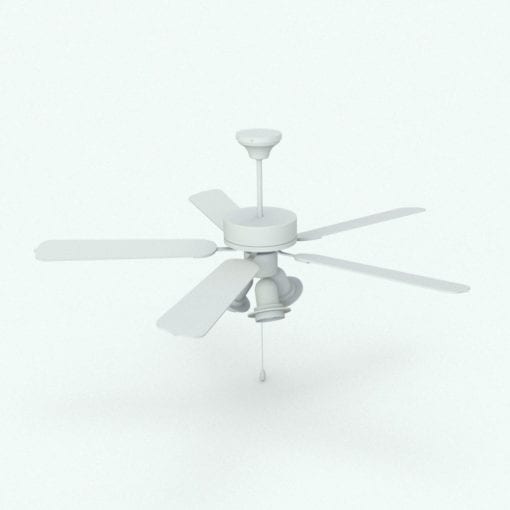

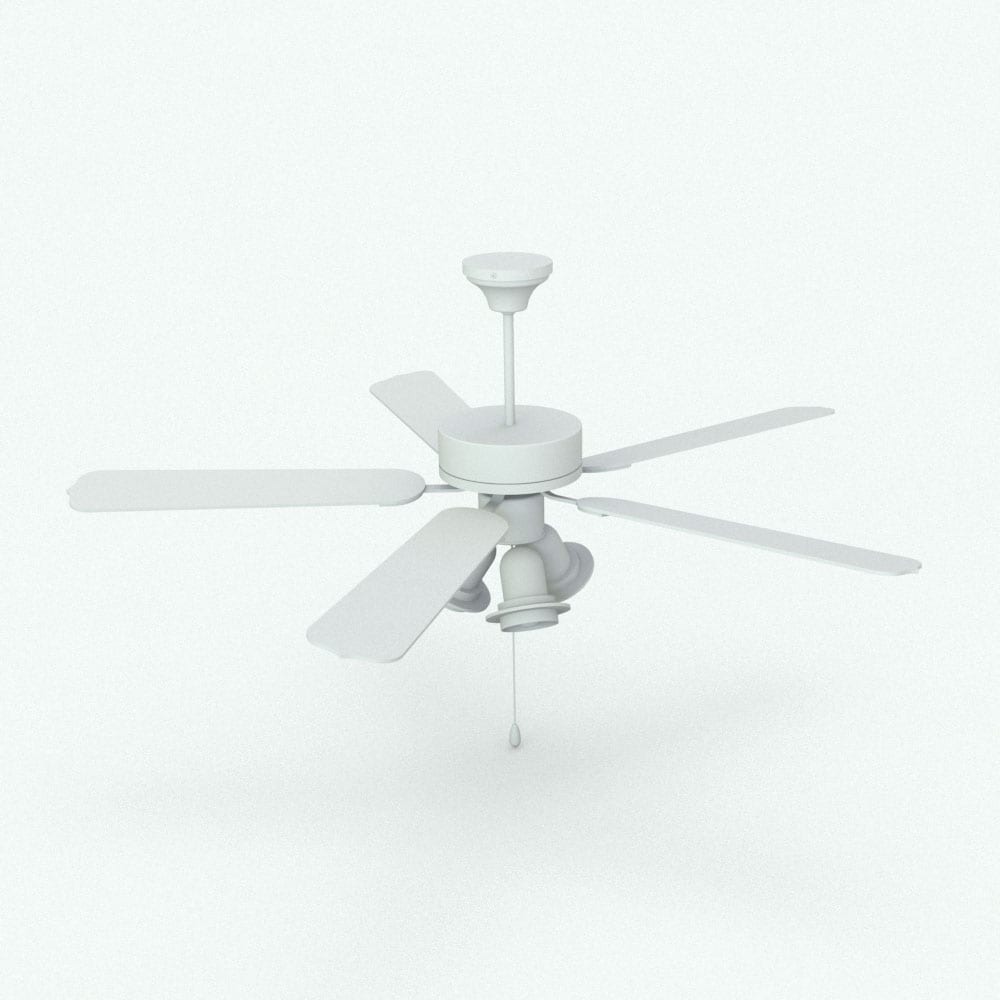

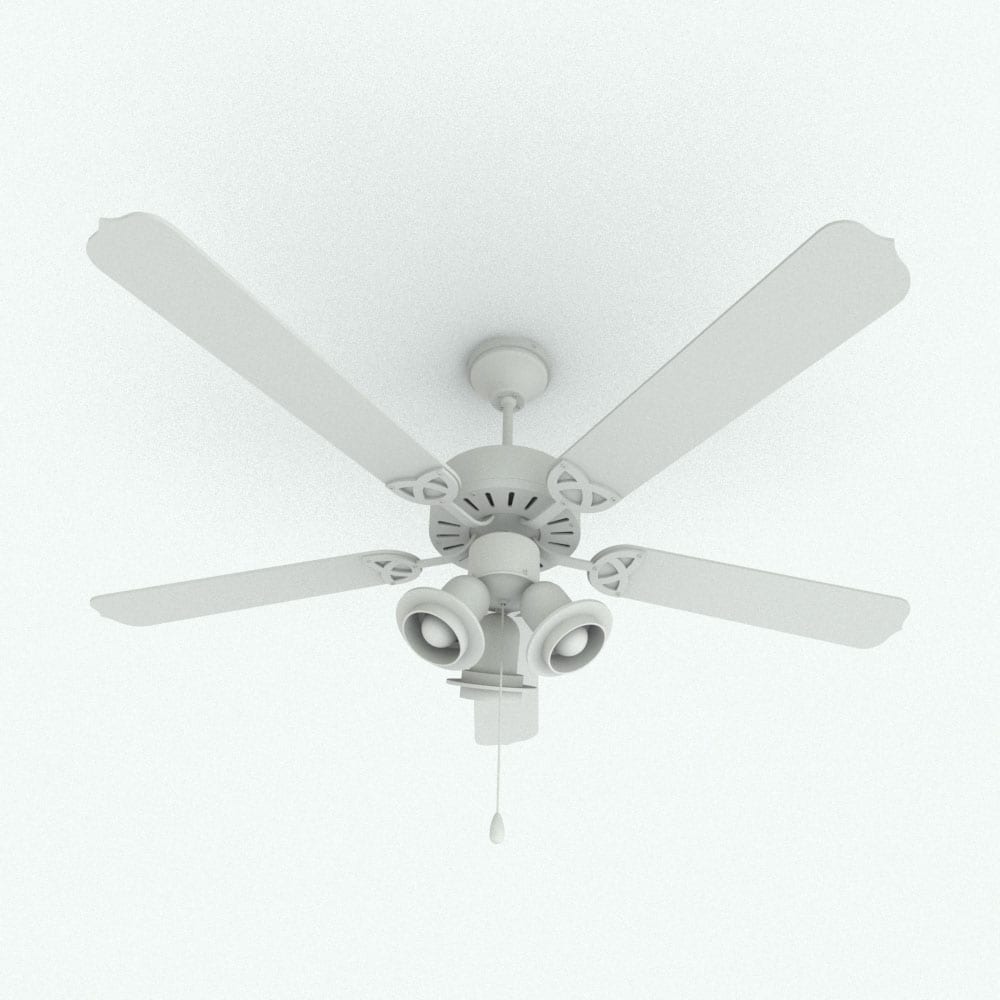

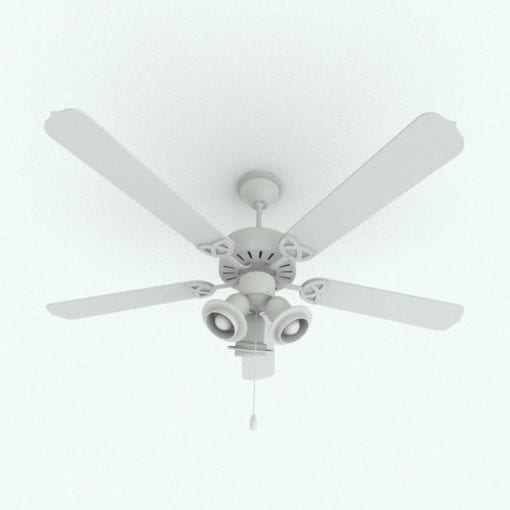

Traditional Ceiling Fan 3 Lights

This parametric Revit ceiling fan family, ideal for interior and exterior spaces, is the perfect choice for any room size. With many parameters to change, like the distance from the ceiling, the number of blades, the blades length and the chains lengths, this family will give you plenty of options to choose from so your projects look unique in every occasion. Plus the visibility of the glass around the light fixtures can be changed for additional customization.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 1.21 MB
• File format: .rfa

This Revit family traditional ceiling fan comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 6″
• Maximum distance: 15′

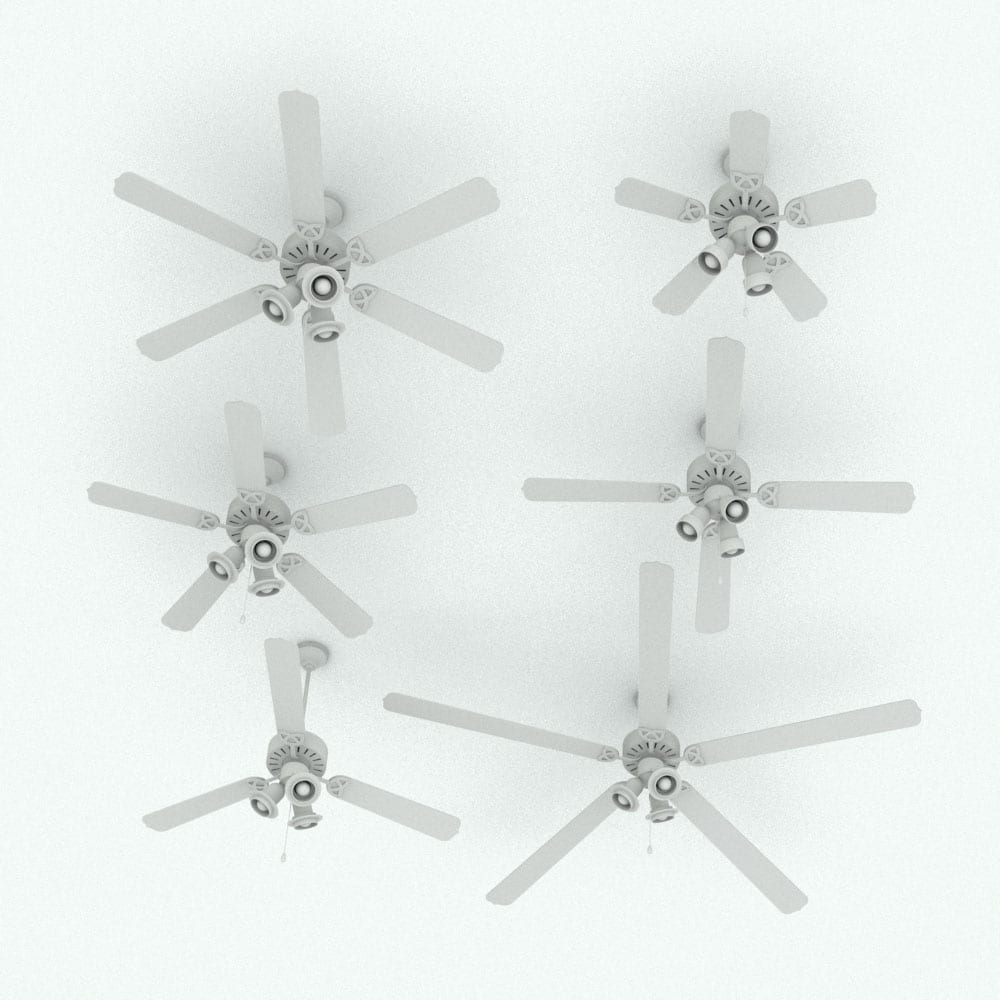

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chain:

• Minimum length: 6″
• Maximum length: 8′

The glass around the light fixtures can be turned on/off

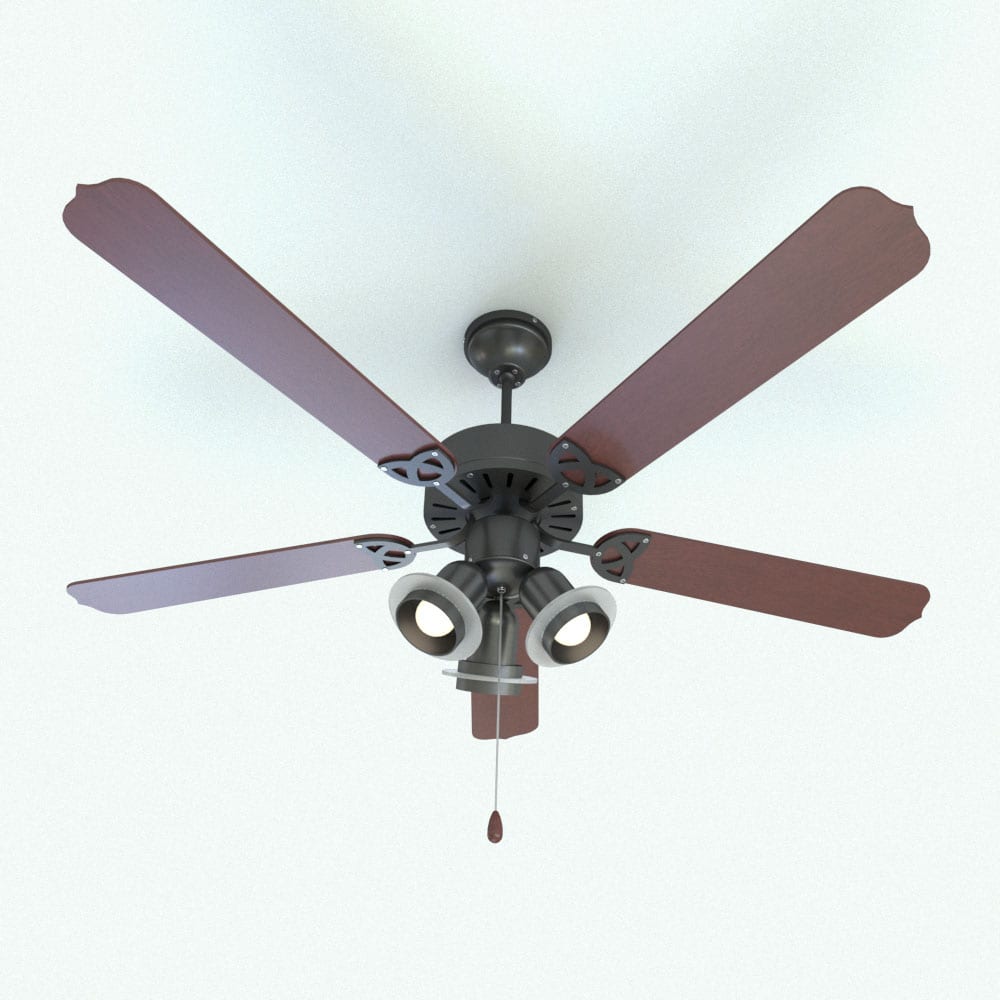

Material parameters for:

• Bulb
• Glass
• Housing
• Light Fixture
• Light+
• Blades
• Blades Details
• Mounting
• Downrod
• Ball
• Chain
• Handles
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
