Ceiling Fan Modern 1

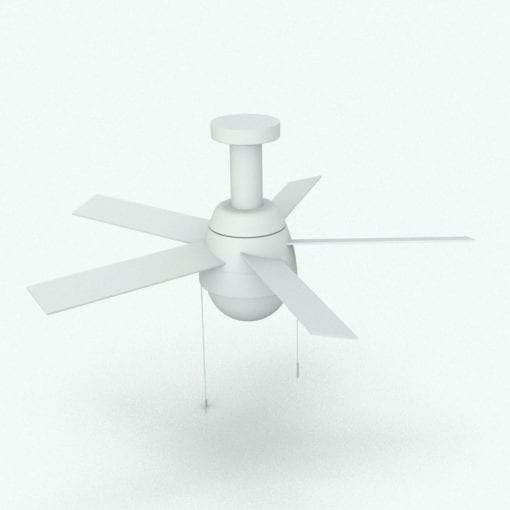

The possibilities with this modern parametric Revit ceiling fan are endless. Ideal for residential and commercial spaces this family is the perfect choice for any space size. With available parameters to change the distance from the ceiling, the number of blades, the blades length and the chains lengths and visibility this family will look unique in every project.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 0.57 MB
• File format: .rfa

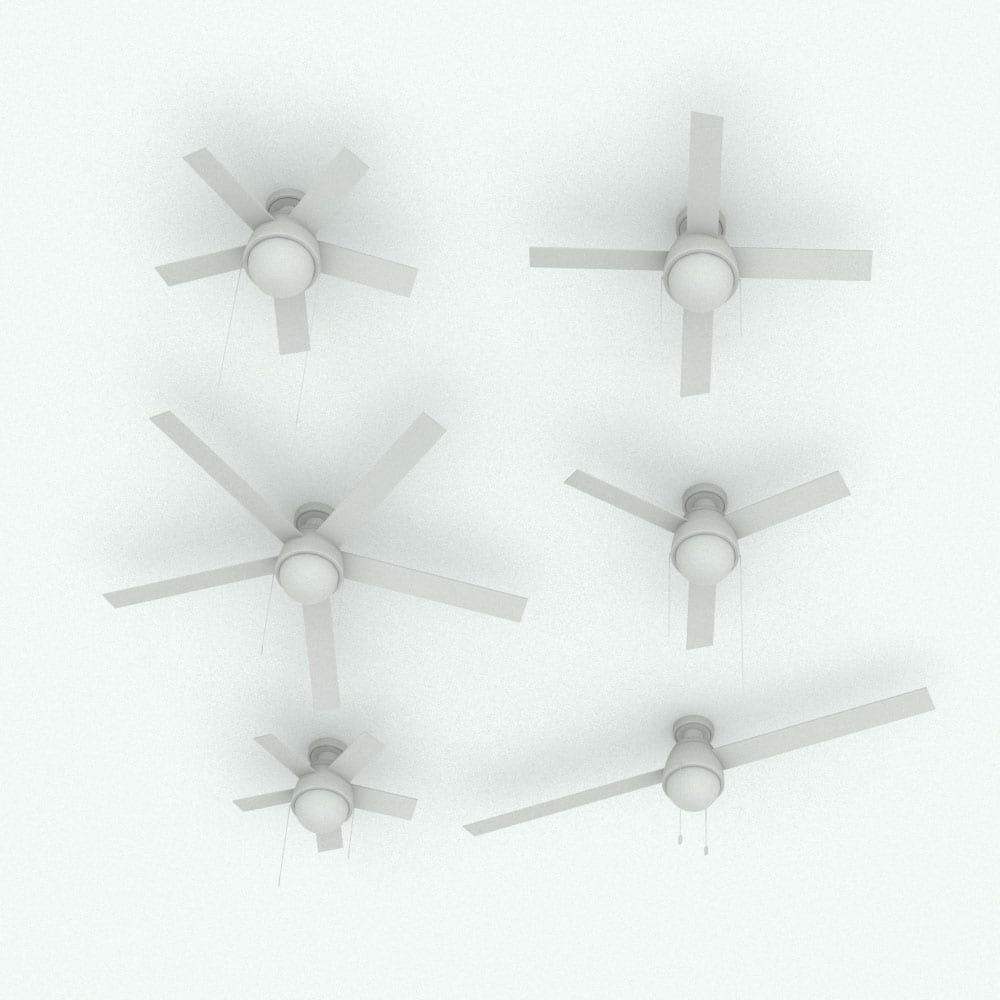

This Revit family modern ceiling fan comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 10″
• Maximum distance: 5′

Blades length:

• Minimum length: 1’3″ (approx)
• Maximum length: 3’9″ (approx)

Number of blades:

• Minimum number of blades: 2
• Maximum number of blades: 7

Lengths of chains (both) can be adjusted independently:

• Minimum length: 6″
• Maximum length: 5′

Material Parameters for:

• Housing
• Blades
• Light+
• Chain
• Chain End

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
