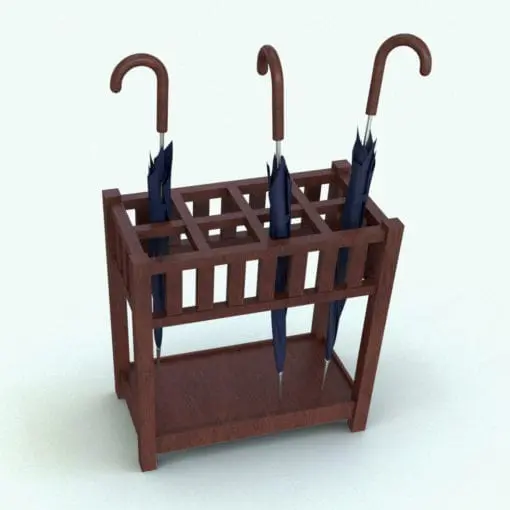

Rectangular Umbrella Revit Family Stand With Divisions

Umbrella Revit Family Stand:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.50 MB
• File format: .rfa

Umbrella Revit Family:

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.97 MB
• File format: .rfa

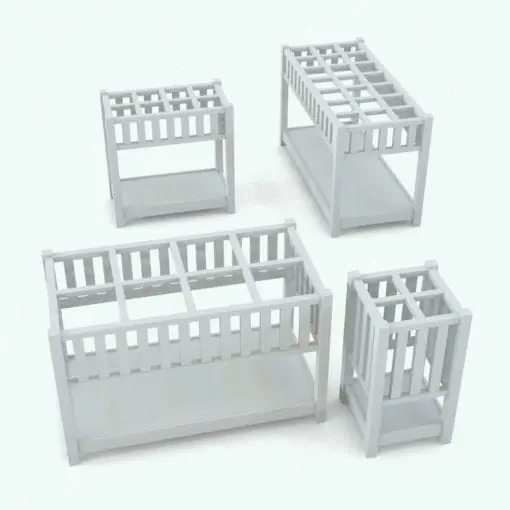

This Rectangular Umbrella Revit Family Stand comes with the following customizable parameters and options:

Umbrella Revit Family Stand:

Cell size:

• Minimum cell size: 3″
• Maximum cell size: 8″

Number of divisions width:

• Minimum number of divisions width: 1 (2 rows)
• Maximum number of divisions width: 8 (9 rows)

Number of divisions depth:

• Minimum number of divisions depth: 1 (2 columns)
• Maximum number of divisions depth: 8 (9 columns)

Aside from these main parameters, this Rectangular Umbrella Revit Family Stand also comes with the additional parameters for added flexibility.

Top portion height:

• Minimum top portion height: 3″
• Maximum top portion height: Total height/2

Material parameter for:

• Stand

Umbrella Revit Family:

Angle:

• Minimum angle: -90
• Maximum angle: 90

This umbrella Revit family comes with material parameters for:

• Umbrella Handle
• Umbrella Structure

Materials (material names) in the Material Editor:

• Generic Umbrella Cloth Material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
