Modern Side Exhaust Fireplace

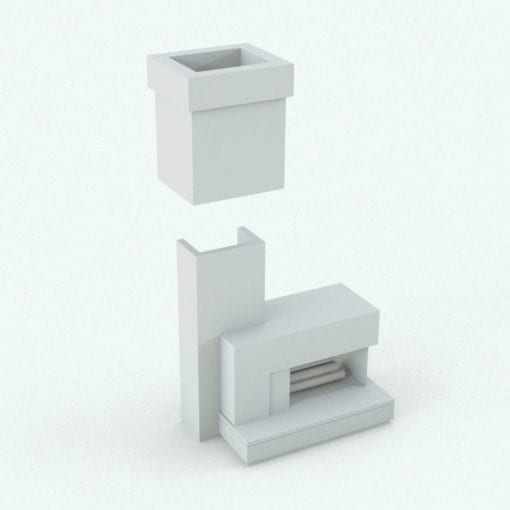

Make your spaces look cozier and more elegant with this fully parametric modern Revit fireplace that includes a log grate for added realism. Change the overall depth, width and height of the fireplace and configure its additional features like the header thickness, the heart depth, the heart height and the exhaust height, width and depth to make it fit to your project. Additionally, this family comes with a fully customizable exterior chimney that includes plenty of parameters like width, height, depth, wall thickness, offset, moulding height and chimney visibility that add up to the flexibility of this family, making it a must have item in your library.

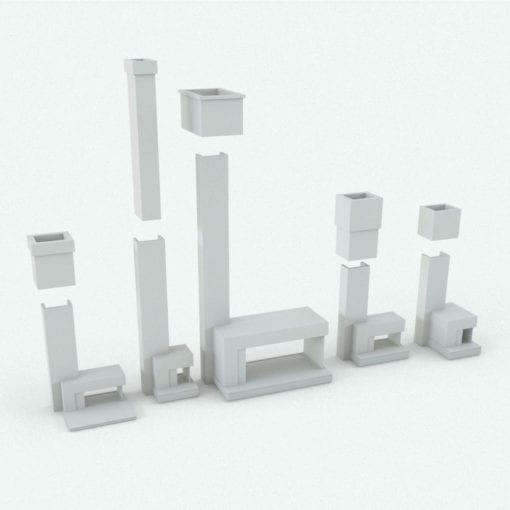

This Revit family modern side exhaust fireplace comes with the following customizable parameters and options:

Fireplace and Chimney

Height, width and depth of fireplace:

• Minimum height: 3′
• Maximum height: (exhaust height/3)*2

• Minimum width: 2′
• Maximum width: 10′

• Minimum depth: 4″
• Maximum depth: 3″

Header thickness, heart depth and heart height:

• Minimum thickness: 6″
• Maximum thickness: header thickness/3

• Minimum heart depth: 4″
• Maximum heart depth: 3′

• Minimum heart height: 4″
• Maximum heart height: header thickness/3

Exhaust height, width and depth:

• Minimum height: 7′
• Maximum height: 30′

• Minimum width: 1′ 6″
• Maximum width: 6′

• Minimum depth: 8″
• Maximum depth: 4′

Chimney height, width, depth and wall thickness:

• Minimum height: 3′
• Maximum height: 30′

• Minimum width: 1′
• Maximum width: 10′

• Minimum depth: 1′
• Maximum depth: 10′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

Chimney offset:

• Minimum offset: 1/4″
• Maximum offset: 30′

Chimney moulding height:

• Minimum moulding height: 3″
• Maximum moulding height: 3′

Chimney and/or moulding can be turned on/off

Material parameters for:

• Exhaust
• Header
• Heart
• Bottom Moulding Heart
• Flap
• Glass
• Chimney

Log Grate

The following parameters:

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

• Logs
• Grate

NOTE: if both objects are turned off, the logs will show up by default.

Material parameters for:

• Grate
• Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
