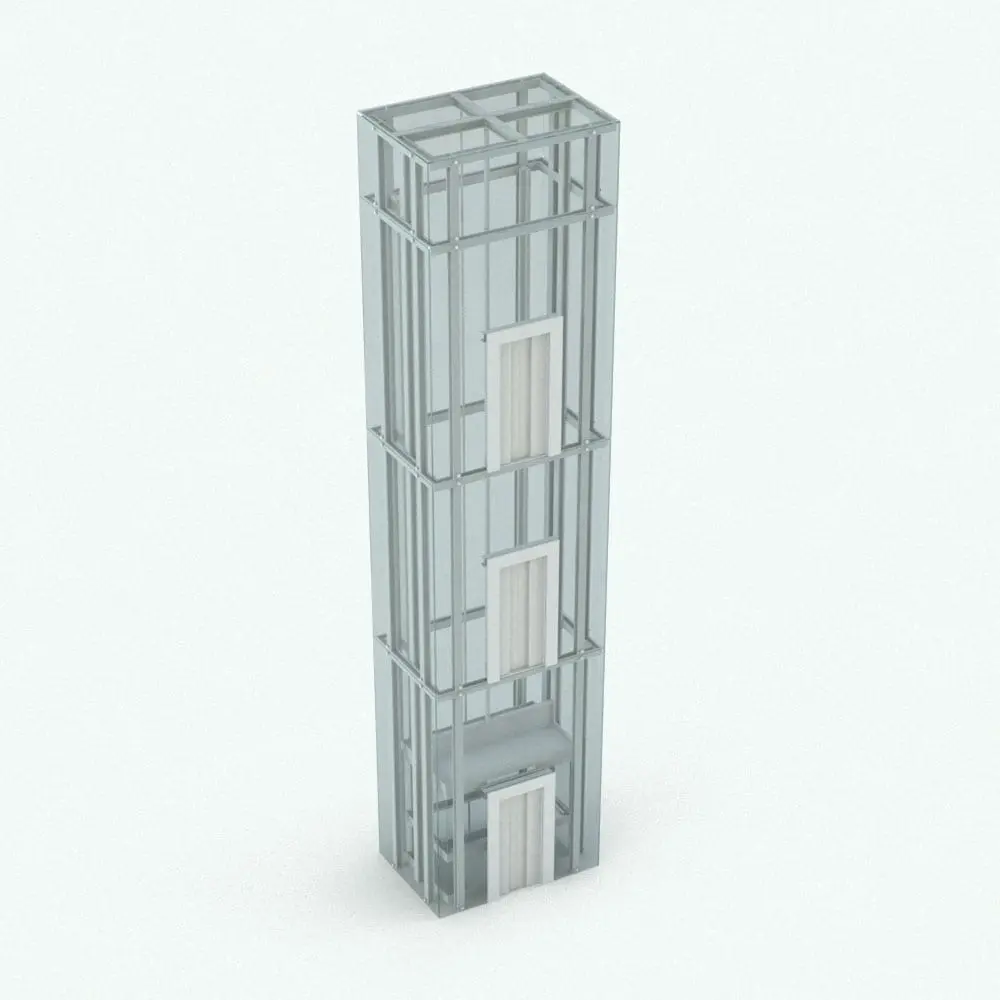

Glass Box Revit Elevator Family rendered in color. This family is fully parametric and ideal for malls, vertical residential buildings, commercial spaces, etc.

Glass Box Revit Elevator Family size variations to showcase its parametric flexibility.

Glass Box Revit Elevator Family rendered in ambient occlusion style.

Glass Box Revit Elevator Family close up of the first level.

Detail of the elevator doors rendered in ambient occlusion mode.

Detail of the buttons of the Revit elevator.

Glass Box Revit Elevator Family

Name: Glass Box Revit Elevator Family
Price: 8.49 USD
Availability: InStock

rfa

$8.49

Categories: Amenities, Elevators Tags: elevador, elevadores, elevator, elevator-escalator, elevators, glass, glass box, glass box elevator, lift, rfa

Enhance your architectural projects with this Glass Box Revit Elevator Family, a modern and sleek vertical transportation solution (elevator family supports up to approximately 1 km – ~3000 ft – in height). Featuring a fully glazed structure with transparent walls, this elevator adds a contemporary and sophisticated touch to commercial buildings, vertical residential projects, or public spaces.

Fully parametric, this Glass Box Revit Elevator Family allows you to customize elevator dimensions, number of floors, materials and more to seamlessly integrate it with your project’s design.

With and exposed structural design of beams, columns, glass panels and the elevator car this Glass Box Revit Elevator Family is an architectural landmark! Get it now and set it up in a few clicks.

Key Benefits of this Revit Elevator:

Modern Glass Design: Transparent walls for a sleek, contemporary aesthetic.
Fully Parametric: Customize dimensions, materials, and many other parameters to fit your project.
Functional Details: Includes structural supports, elevator cars, and doors.
Versatile Applications: Ideal for commercial, residential, or public spaces.

Click HERE if you need an escalator to pair this elevator with, or Click HERE if you want to see other Revit elevator designs.

For a complete list of parameters and materials of this elevator, please read the Revit Family Technical Information section below.

Revit Family Technical Information

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Mechanical Equipment
Materials/textures: Yes
Approximate file size: 3.2 MB
File format: .rfa

This Glass Box Revit Elevator Family comes with the following customizable parameters and options:

Floor heights. The main floor (ground floor) height can be different than the rest of the floors. The rest of the floors all share the same height.

Minimum main floor height: 8′
Maximum main floor height: 40′

Minimum secondary floor height: 8′
Maximum secondary floor height: 20′

Number of floors:

Minimum number of floors: 3
Maximum number of floors: as many as the total height of the elevator (including the main floor and all secondary floors) does not exceed 3000′

Revit elevator car can be positioned in any floor

Doors of the elevator car can be opened by percentage:

Minimum open percentage: 0 percent
Maximum open percentage: 100 percent

Elevator width, depth, doors width, doors height, number of doors and pit height:

Minimum elevator width+: (door width X 2) + 1’4″
Maximum elevator width+: 40′

Minimum elevator depth+: 5′
Maximum elevator depth+: 30′

+ These parameters include all the structure and the glass box.

Minimum doors width: 2’6″
Maximum doors width: 6′

Minimum doors height: 6’8″
Maximum doors height: 7′

Number of doors can ONLY be either 2 or 4

Minimum pit height: 5′
Maximum pit height: 20′

Visibility of the following objects can be turned on/off:

Left call buttons
Right call buttons
Buffer Area
Vertical Beams
Counterweight Structure

This Glass Box Revit Elevator Family comes with material parameters for:

Glass Box
Glass Box Structure
Glass Box Connections
Main Doors
Elevator Car Glass
Elevator Car Floor
Elevator Ceiling
Elevator Interior and Exterior Mouldings
Elevator Interior Rails
Elevator Frame
Call Panel Buttons
Call Panel
Level Door
Structure and Buffer
Top Arrows
Top Floor
Top Panel

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
