Japanese Revit Folding Partition Family rendered in a cherry-colored wood and with white screen. Ideal to softly separate your architectural spaces, this Revit folding partition family not only will achieve that, but also make your spaces look finished and cozier. With parameters to change a lot of its properties, this Japanese Revit Folding Partition Family is definitely a must-have family in your assets.

Japanese Revit Folding Partition Family in different sizes and configurations to showcase its parametric flexibility. Change the angles, the dimensions and the number of panels to make this Revit Folding Partition Family adapt to your project requirements.

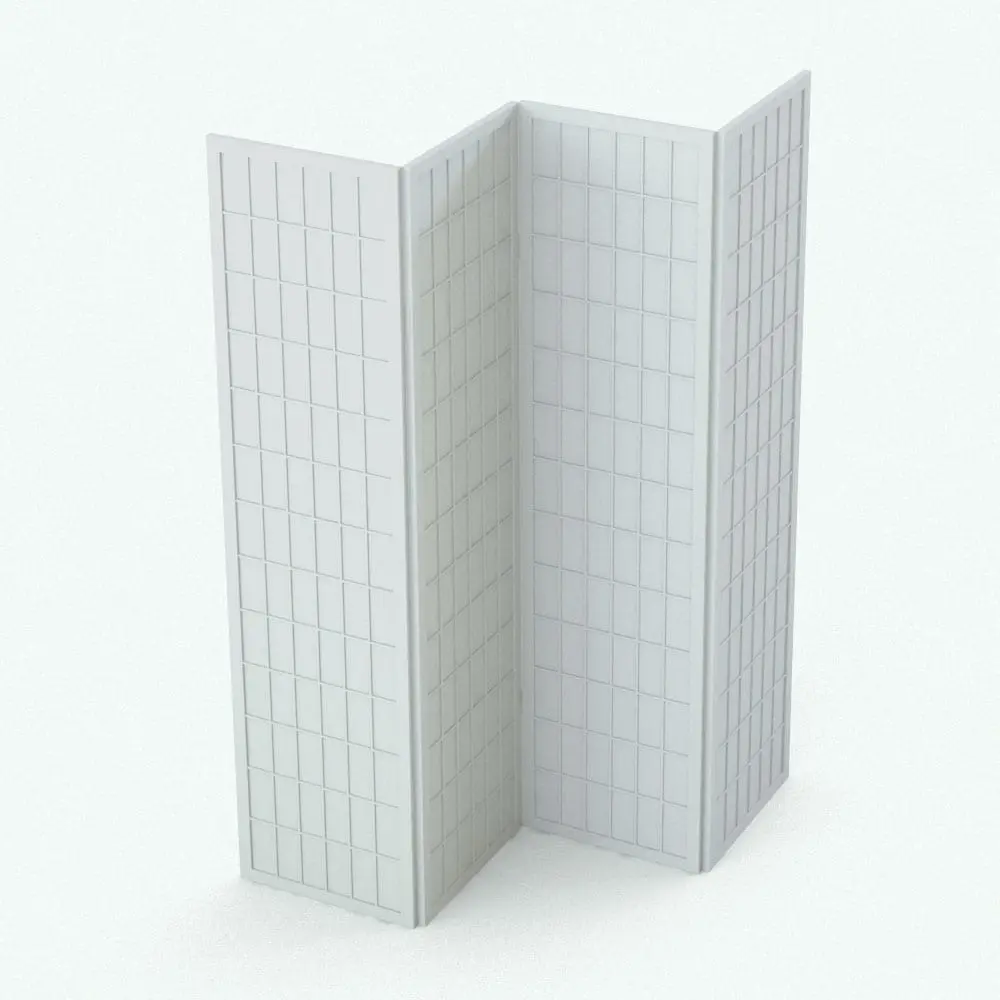

Japanese Revit Folding Partition Family in 3D and rendered without materials (ambient occlusion style) to show the details better. Ideal for residential or hospitality projects, this Revit Folding Partition Family will transform your spaces in a few clicks.

Japanese Revit Folding Partition Family in top view and rendered in black and white (ambient occlusion style) to show the details better. This family is fully parametric and easy to use. Load it into your project, change the dimensions and angles and hit the render button. Don't wait any longer and add this Japanese Revit Folding Partition Family to your cart now!

Japanese Revit Folding Partition Family

Name: Japanese Revit Folding Partition Family
Price: 3.99 USD
Availability: InStock

rfa

$3.99

Categories: Decorative Accents, Screens and Space Dividers Tags: accordion, bifold, biombo, decoration, decorative, dividers, extendable, japanese, japones, mampara, ornamental, panels, quadfold, rfa, room dividers, screen, space dividers, trifold

The Japanese Revit Folding Partition Family brings the charm and functionality of traditional Japanese Shoji screens into modern design workflows. This elegantly crafted partition features a wooden frame paired with translucent panels, offering a delicate balance of privacy and light diffusion.

Its foldable design enhances its adaptability, making this Japanese Revit Folding Partition Family perfect for creating flexible spaces in residential or commercial interiors. With its minimalist aesthetic, this Revit folding partition adds a touch of Zen-inspired beauty to any environment. Thus, seamlessly blending functionality with design elegance.

For a detailed description of parameters and materials, please read the Revit Family Technical Information section below.

Revit Family Technical Information

Parametric: Yes
Hybrid*: No
Compatible with: Revit 2016 and higher.
Family type: Furniture
Materials/textures: Yes
Approximate file size: 0.74 MB
File format: .rfa

This Japanese Revit Folding Partition Family comes with the following customizable parameters and options:

Width, height and thickness of panels (all panels will have the same width, height and thickness when you change it):

Minimum width of panels: 9″

Minimum height: 2′

Minimum thickness: 1/2″
Maximum thickness: 2″

Number of vertical and horizontal bars. The minimum spacing between the bars is 2″ (if the number of bars is too large, it will be adjusted so that the distance between the bars is not smaller than 2″)

Angles of each panel (individually):

Minimum angle: 0
Maximum angle: 135

If the Equal checkbox is on, the angle of all Revit partition panels will be the same (it will take the angle of panel 1 as the angle for all).

After changing the angles of this Revit partition family, it might be necessary to rotate the family to make sure it’s in the right position.

You can turn on/off the hinges

Panels 3 and 4 can be turned on/off to make it a double, triple or quadruple divider

This Japanese Revit Folding Partition Family comes with material parameters for:

Wood frame
Panel
Hinges

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
