Cylindrical Metallic Fireplace

Decorate your living rooms, exterior spaces, restaurants and other spaces with this fully parametric modern Revit fireplace that includes a log grate for added realism. Change the height of the fireplace to match your ceiling height and configure its additional features like the firebox start height, firebox end height, firebox diameter and exhaust diameter. Additionally, this family comes with a fully customizable exterior chimney that includes parameters like width, height, wall thickness, moulding height, offset and visibility, as well as with a parametric log grate with options to change its width, depth and visibility.

This Revit family cylindrical metallic fireplace comes with the following customizable parameters and options:

Fireplace and Chimney

Height of fireplace exhaust:

• Minimum height: 6′
• Maximum height: 35′

Start and end height of firebox:

• Minimum start height: 8″
• Maximum start height: height/2

• Minimum end height: 2′ above the start height
• Maximum end height: 3′ 6″ above the start height

Diameter of firebox and exhaust:

• Minimum firebox diameter: 3′
• Maximum firebox diameter: 6′

• Minimum exhaust diameter: 6″
• Maximum exhaust diameter: 1′

Chimney height, width, wall thickness and top moulding height:

• Minimum height: 3′
• Maximum height: 30′

• Minimum width: 1′
• Maximum width: 6′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

• Minimum moulding height: 3″
• Maximum moulding height: 3′

Chimney offset from top of fireplace exhaust:

• Minimum offset: 1/4″
• Maximum offset: 30′

Chimney can be turned on/off

Material parameters for:

• Fireplace
• Grill
• Chimney

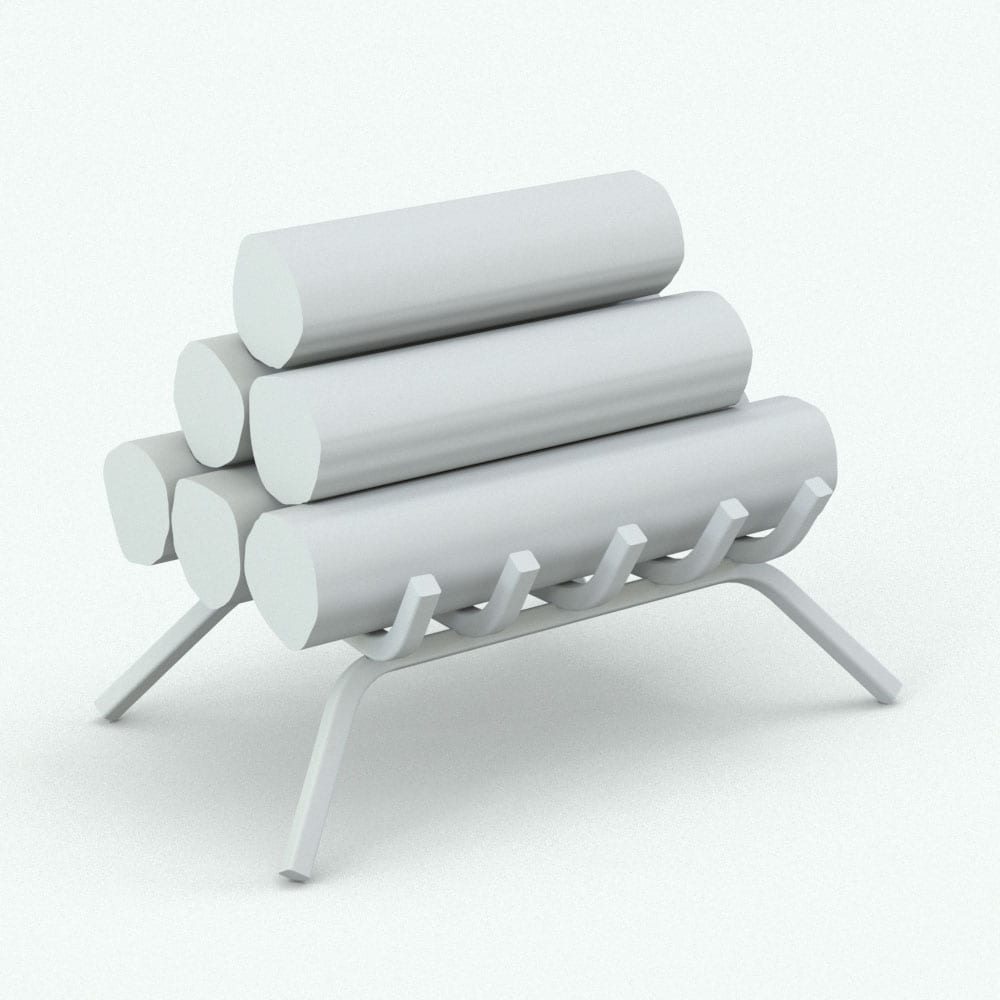

Log Grate

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

• Logs
• Grate

NOTE: if both objects are turned off, the logs will show up by default.

Material parameters for:

• Grate
• Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
