Curves Wall Panels

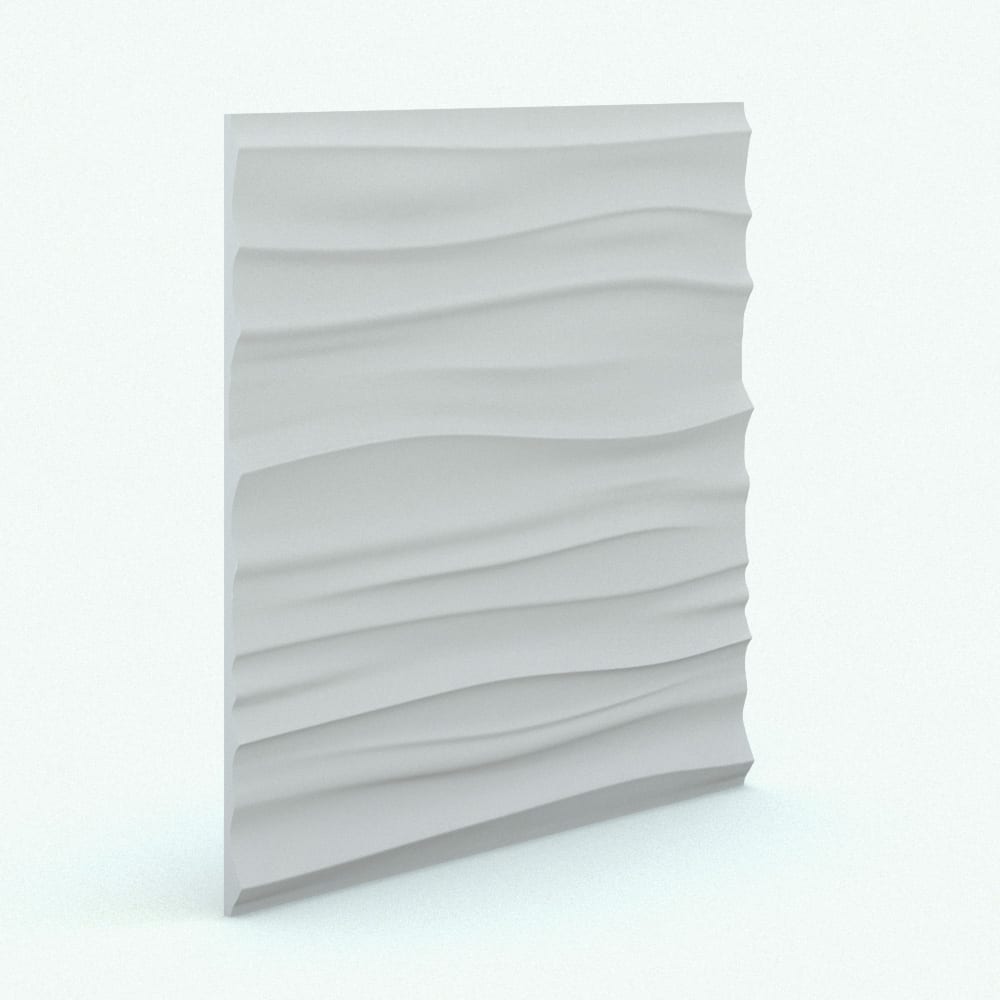

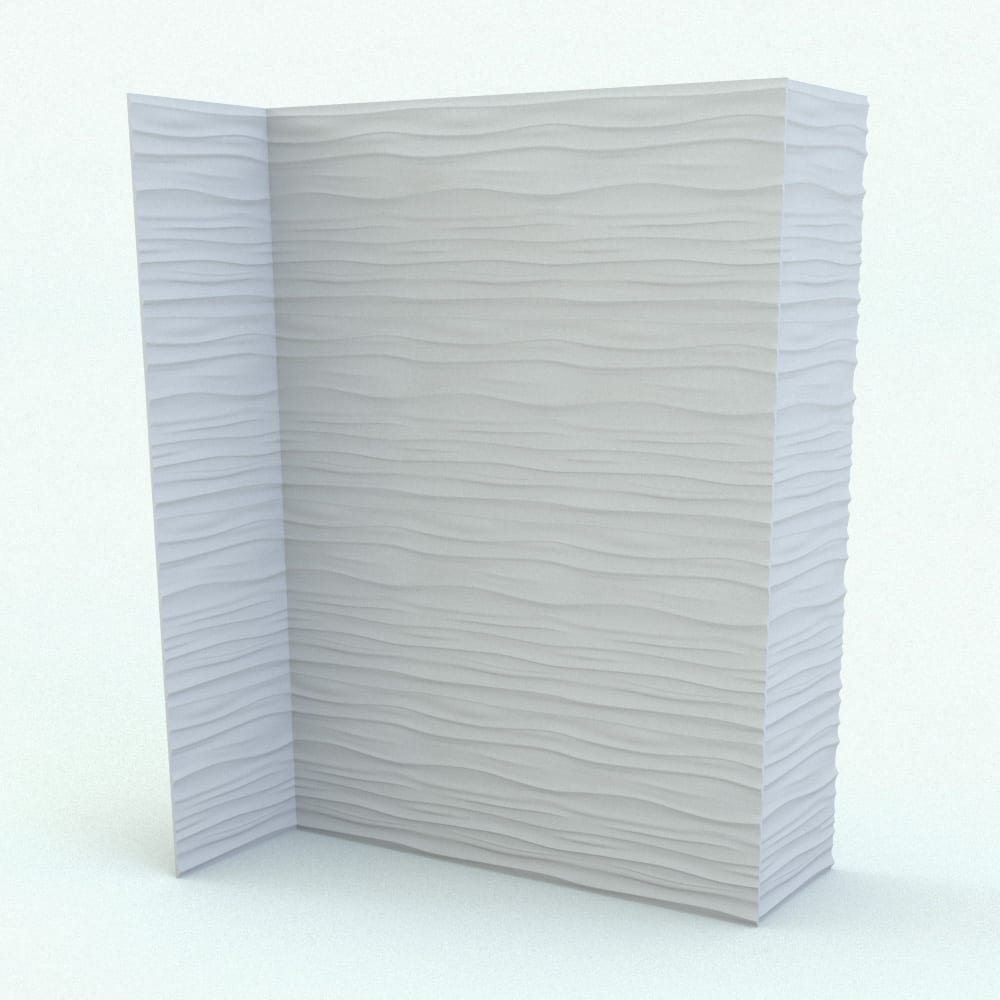

This fully parametric modern Revit paneling system family is ideal for turning a room into an eye-catching space that will certainly stand out from the rest. Customize this family and make your spaces unique by setting the sizes of the square panels to match your wall height and width. Your renders will certainly look a lot more interesting and your spaces a lot more inviting with this family.

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes (only basic material for the panels)
• Approximate file size: 0.88 MB
• File format: .rfa

This Revit family wall paneling system comes with the following customizable parameters and options:

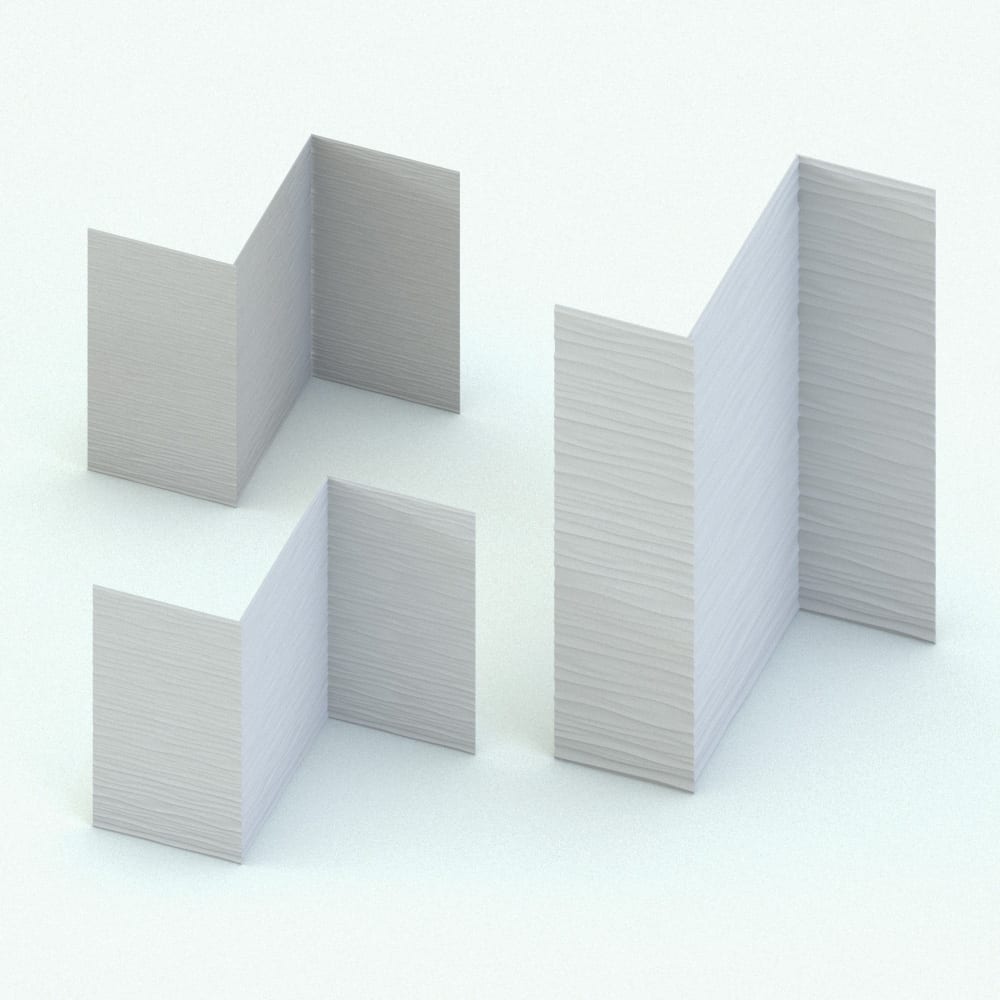

Panel size:

• Minimum size: 1′
• Maximum size: Not limited

Number of panels horizontally:

• Minimum number of panels: 2
• Maximum number of panels: Not limited

Number of panels vertically:

• Minimum number of panels: 2
• Maximum number of panels: Not limited

NOTES:

• After being loaded into a project, it can be placed through the Component Tool.
• This family might display long lines in plan view, so you might have to hide it in that view.

Material can be found in the Materials Browser. Name of the material in the browser:

• Curves Panel Wall Trim

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
