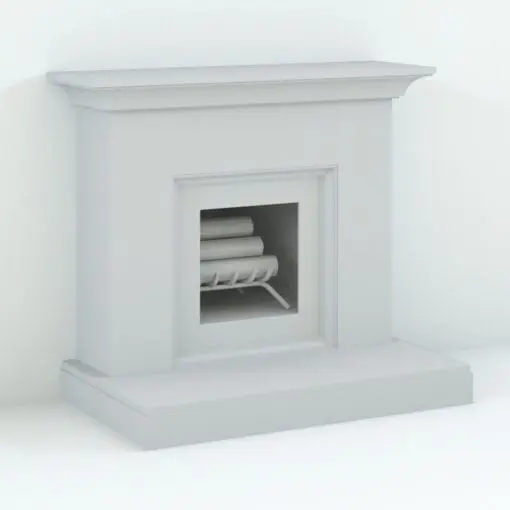

Classic Revit Fireplace Family

Classic Revit Fireplace Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.78 MB
• File format: .rfa

Log Grate Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 0.70 MB
• File format: .rfa

This Classic Revit Fireplace Family comes with the following customizable parameters and options:

Fireplace Family

Width and height of fireplace:

• Minimum width: 4′
• Maximum width: 10′

• Minimum height: 3′
• Maximum height: 8′

Header, inner trim thicknesses and fireplace top moulding height:

• Minimum header thickness: 6″
• Maximum header thickness: fireplace width/4

• Minimum inner trim thickness: 4″
• Maximum inner trim thickness: (fireplace width-(header*2))/4

• Minimum top moulding height: 2″
• Maximum top moulding height: 1′ 6″

Fireplace heart depth and height:

• Minimum heart depth: 3″ (approx)
• Maximum heart depth: 2′ 3″ (approx)

• Minimum heart height: 1″
• Maximum heart height: 7″

Chimney height, depth, wall thickness and chimney top moulding height:

• Minimum height: double of the firebox opening height
• Maximum height: 50′

• Minimum depth: 1′
• Maximum depth: 8′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

• Minimum top moulding height: 6″
• Maximum top moulding height: 4′

Start, end and offsets (sides and back) of the tapered part of the chimney:

• Minimum start height: height of firebox opening height
• Maximum start height: chimney height/3

• Minimum end height: minimum start + 1/128″
• Maximum end height: (chimney height/3)*2

• Minimum side offset: 0′
• Maximum side offset: width of chimney/2.5

• Minimum back offset: 0′
• Maximum back offset: (depth of chimney/4)*3

Chimney and top moulding on chimney can be turned on/off in case another chimney wants to be used.

This Revit wood stove includes material parameters for:

• Header and legs
• Inner trim
• Mantle
• Heart
• Firebox base
• Chimney
• Interior of chimney
• Chimney top moulding

Log Grate Family

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

• Logs
• Grate

NOTE: if both objects are turned off, the logs will show up by default.

Material parameters for:

• Grate
• Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
