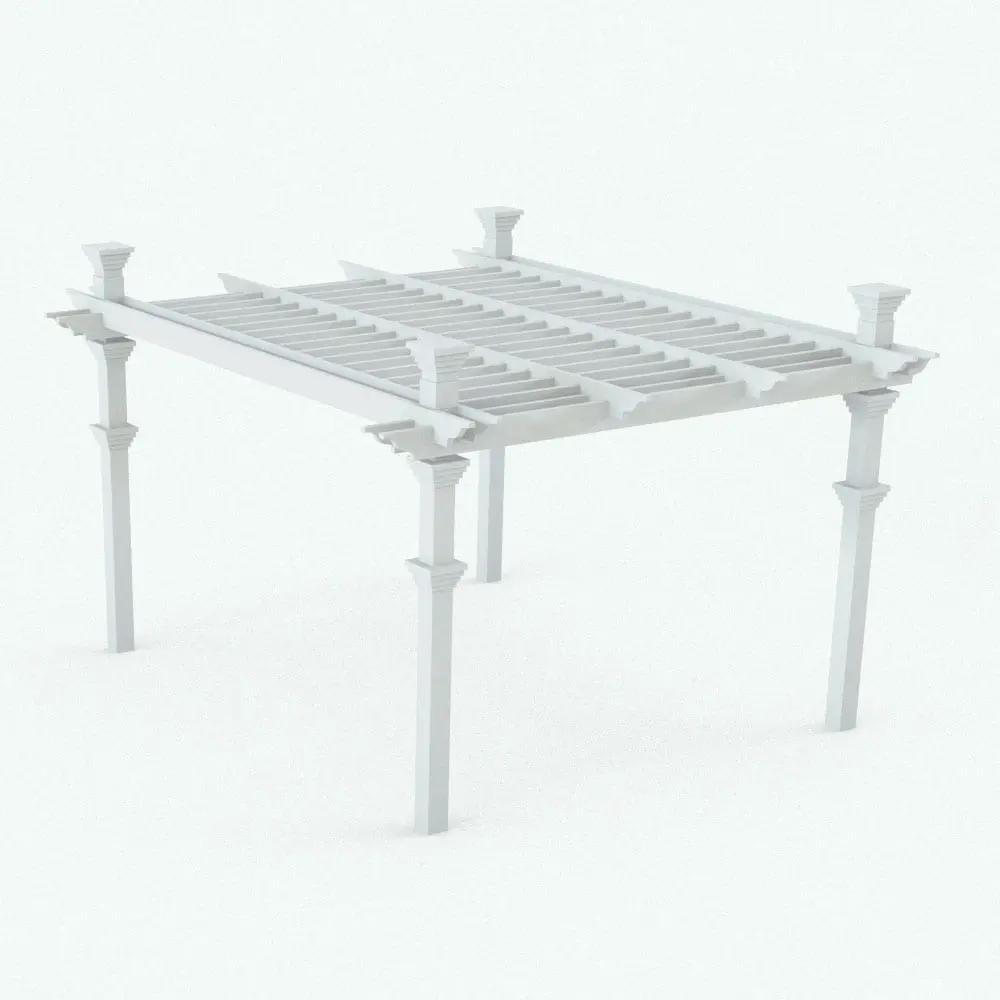

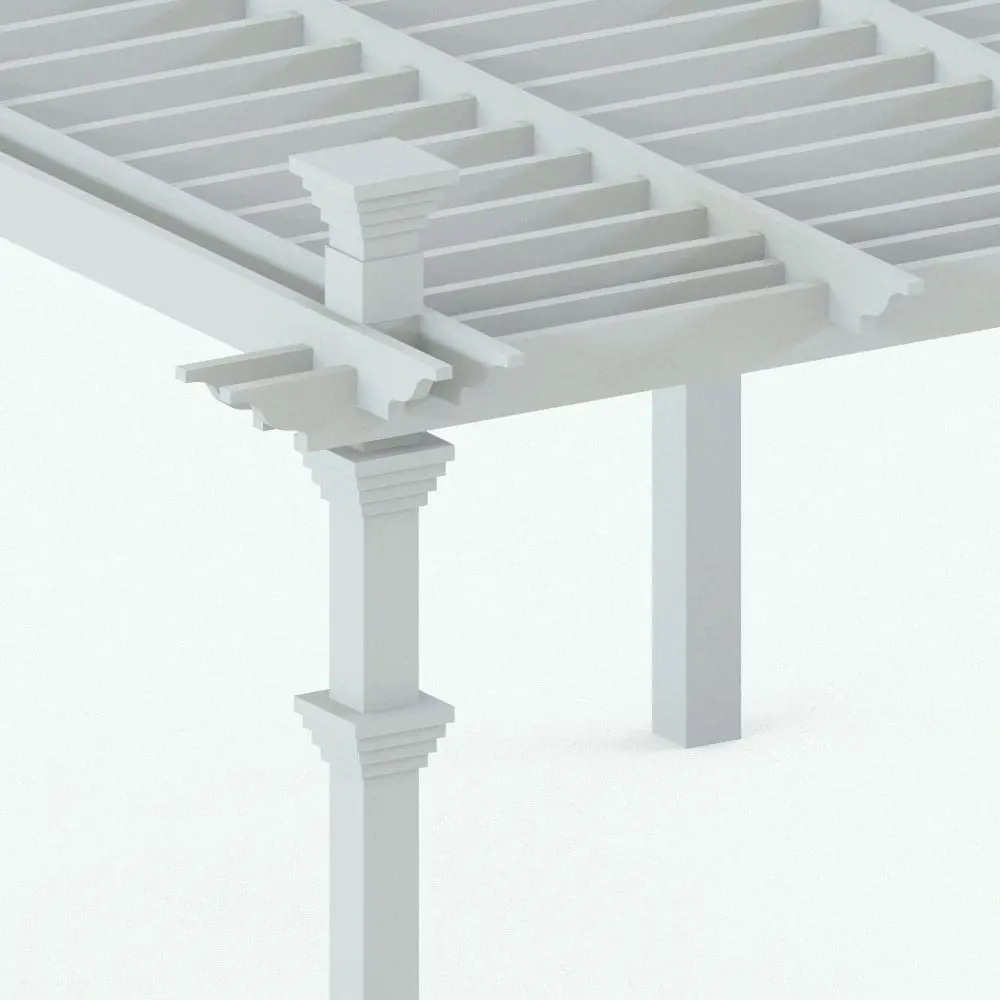

Classic Pergola Revit Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Entourage
• Materials/textures: Yes
• Approximate file size: 0.62 MB
• File format: .rfa

This Classic Pergola Revit Family comes with the following customizable parameters and options:

Width, depth, clearance height, thickness of beams and thickness of columns:

• Minimum width: 4′
• Maximum width: 40′

• Minimum depth: 4′
• Maximum depth: 40′

• Minimum clearance height: 6’5″
• Maximum clearance height: 30′

• Minimum thickness of beams: 4″
• Maximum thickness of beams: the minimum value between a fixed value of 1’2″ and (the minimum value between width/8 and depth/8)

• Thickness of columns: 1″ less than beams

Number of middle beams and top beams:

• Minimum number of middle beams: 2
• Maximum number of middle beams: width/1′

• Minimum number of top beams: 4
• Maximum number of top beams: depth/3″

Topmost beams of this Classic Pergola Revit Family can be turned off.

Materials for:

• Wood
• Wood 1 (topmost beams)

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
