Ameba Multiple Curves Pool

With many options to choose from and many parameters to change, this ameba-shaped Revit pool family is ideal for residences, hotels, community centers, gyms, etc. Five types of handrails, three types of ladders and three types of diving boards are some of the features that are included in this parametric family. Additionally, this pool features drains, returns and skimmers with hatches. The customizable size of the pool, along with the customizable width of the pool frame and the visibility of several parts of it (middle shallow platform, pool ladder, diving board, handrail and skimmer hatch) will make this pool fit to any exterior space in your project and a must-have family in your library. This family attaches to faces (floor for example) and it creates a hole in it automatically for ease of use.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 2.46 MB
• File format: .rfa

This ameba-shaped Revit family comes with the following customizable parameters and options:

Size (size is measured in the longest direction of the pool and it is approximate):

• Minimum size: 30′ (size doesn’t include wall thickness)
• Maximum size: 150′ (size doesn’t include wall thickness)

Pool frame width:

• Minimum frame width: 1/5th of the smallest radius of the curves
• Maximum frame width: the smallest radius of the curves minus a 10% of it.

Pool comes with the following objects:

• Pool Ladder
• Diving Board
• Handrail
• Skimmer with Hatch
• Drains
• Returns

Pool ladder comes in three different types (shapes)

Number of steps on ladder:

• Minimum number of steps: 2
• Maximum number of steps: 4

Diving board base comes in three different types (shapes)

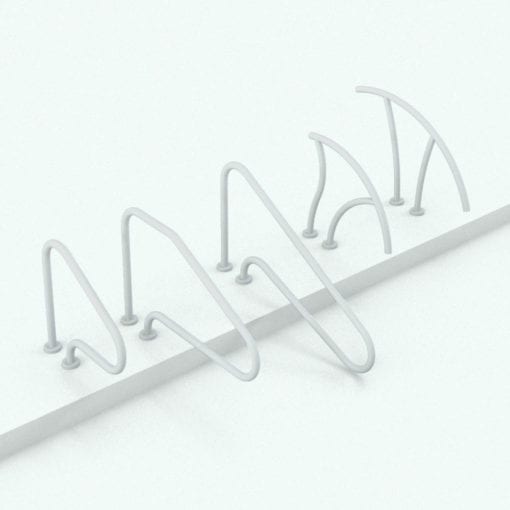

Handrail comes in five different types (shapes)

The following objects can be turned on/off (visibility):

• Middle Shallow Platform
• Pool Ladder
• Diving Board
• Handrail
• Skimmer Hatch

Materials parameters for:

• Pool Concrete
• Pool Frame
• Pool Water
• Pool Ladder
• Diving Board Base
• Diving Board
• Handrail
• Pool Drain Inside
• Pool Drain
• Pool Return
• Skimmer Hatch
• Skimmer

NOTE: Pool needs to be placed on a face. It will automatically create the hole on it. It won’t create a hole on toposurfaces though.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
