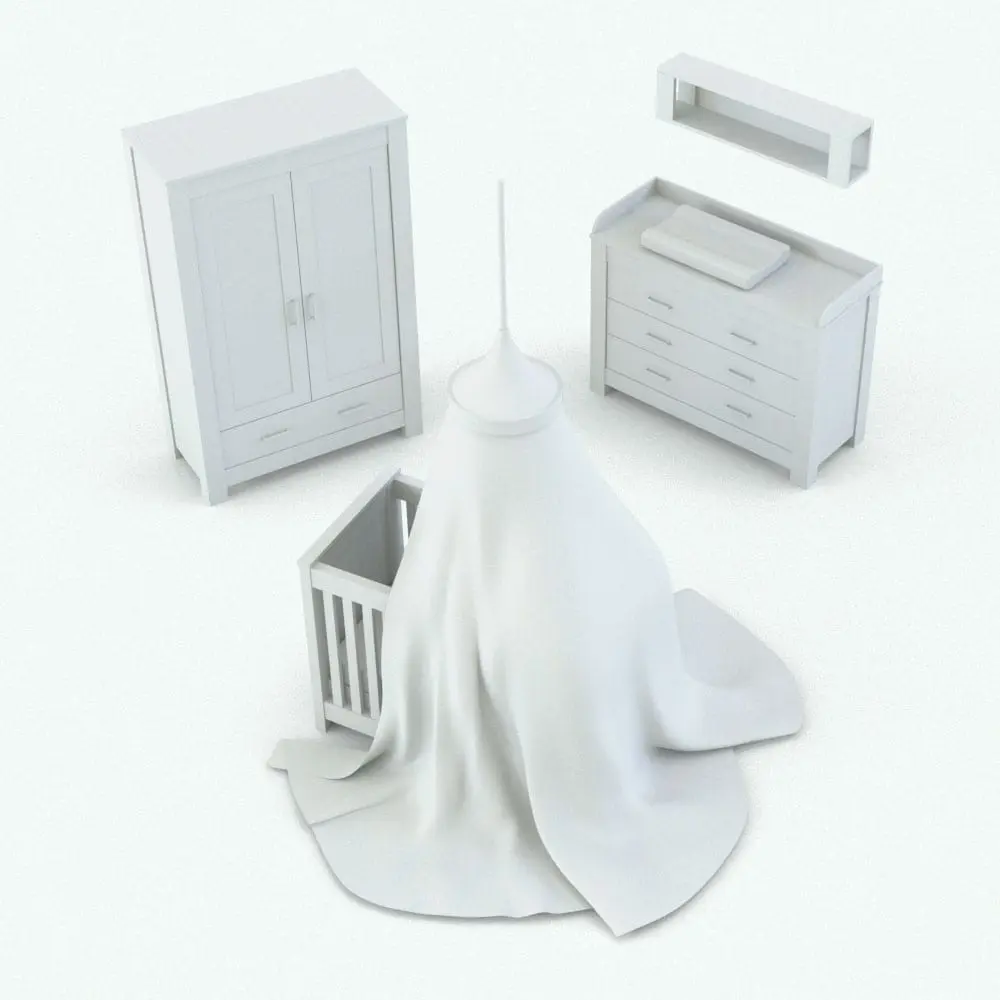

Wooden Nursery Revit Furniture Set With Canopy

Crib With Canopy Revit Furniture Family:

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.71 MB
• File format: .rfa

Changing Station Revit Furniture Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.57 MB
• File format: .rfa

Revit Wardrobe Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.56 MB
• File format: .rfa

Pad Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.40 MB
• File format: .rfa

This Wooden Nursery Revit Furniture Set With Canopy comes with the following customizable parameters and options:

Crib With Canopy Revit Furniture Family:

NOTE: If the canopy is on (visible), only the width of the crib can be changed (the depth and height of the crib will be set to standard values). Also, if the canopy is visible, the Ceiling Height parameter will be available to connect the canopy wire to the ceiling

Width:

• Minimum width: 4′
• Maximum width: 6′

Ceiling height:

• Minimum ceiling height: 7’9″
• Maximum ceiling height: 20′

If canopy is turned off, depth and height can be changed (width can also be changed within the ranges specified above):

Depth of this Revit furniture family:

• Minimum depth: 2’4″
• Maximum depth: 4′

Height:

• Minimum height: 3′
• Maximum height: 5′

Canopy can be turned on/off

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Material Browser.

This crib, which is part of the Wooden Nursery Revit Furniture Set comes with material parameters found in the Properties:

• Crib
• Mattress
• Canopy Top

Materials (material names) found in the Material Browser:

• Wooden Crib With Canopy – Canopy Cloth

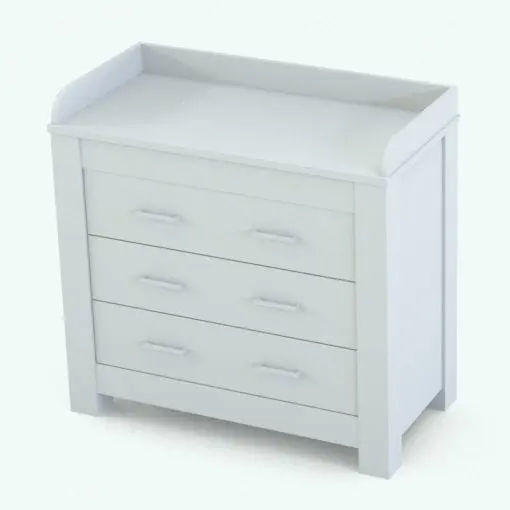

Changing Station Revit Furniture Family:

Width:

• Minimum width: 2’6″
• Maximum width: 12′

Depth:

• Minimum depth: 1’6″
• Maximum depth: 4′

Height of this Revit furniture family:

• Minimum height: 2’6″
• Maximum height: 5′

Number of drawers:

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as their height is not less than approximately 6″

Shelves distance to chest:

• Minimum shelves distance: 6″
• Maximum shelves distance: 6′

Shelves width:

• Minimum shelves width: 1’2″
• Maximum shelves width: 12′

Shelves depth of this Revit furniture family:

• Minimum shelves depth: 4″
• Maximum shelves depth: 4′

Shelves height:

• Minimum shelves height: 6″
• Maximum shelves height: 6′

Shelves can be turned off

The changing station part can be removed

This changing station, which is part of the Wooden Nursery Revit Furniture Set With Canopy comes with material parameters for:

• Changing Station
• Handles

Revit Wardrobe Family:

Width:

• Minimum width: 2’6″
• Maximum width: 12′

Depth:

• Minimum depth: 1’6″
• Maximum depth: 4′

Height:

• Minimum height: 4’8″
• Maximum height: 15′

This wardrobe (armoire), which is part of the Wooden Nursery Revit Furniture Set comes with material parameters for:

• Armoire
• Handles

Pad Revit Family:

Width:

• Minimum width: 1′
• Maximum width: 15′

Depth:

• Minimum depth: 1′
• Maximum depth: 2′

Height:

• Minimum height: 2 1/2″
• Maximum height: 1′

This pad, which is part of the Wooden Nursery Revit Furniture Set comes with material parameter for:

• Changing Pad

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
