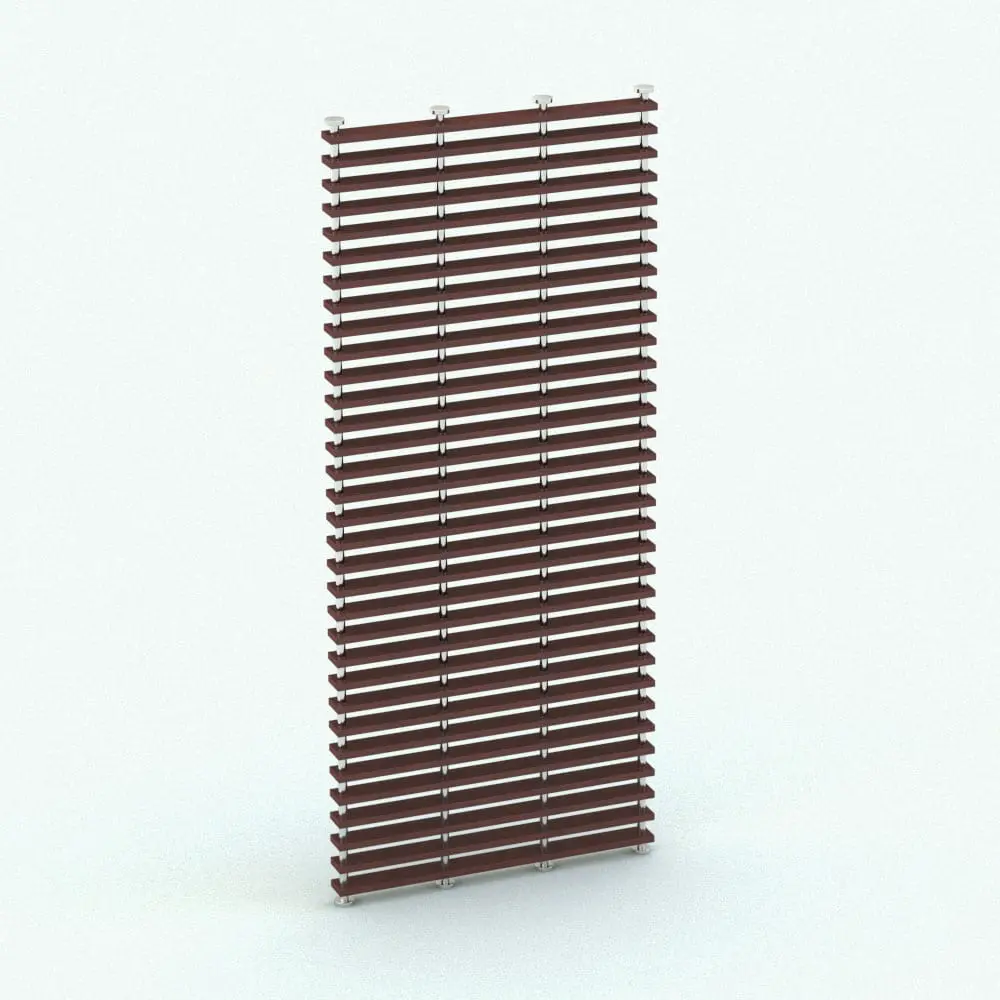

Wood Slats Partition Wall Revit Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model
• Materials/textures: Yes
• Approximate file size: 0.75 MB
• File format: .rfa

This Wood Slats Partition Wall Revit Family comes with the following customizable parameters and options:

Length, height and depth (width of wall):

• Minimum length: 6″
• Minimum Height: 1′
• Minimum depth: 1″

Number of Slats and posts:

• Minimum number of slats: 2
• Maximum number of slats: defined by height of space divider and height of individual slat

• Minimum number of posts: 2
• Maximum number of posts: defined by length of space divider and individual post diameter

Aside from these main parameters listed above, this Wood Slats Partition Wall Revit Family comes with even more parameters to further personalize it. See below.

Start and end position of slats and posts:

• Minimum start/end of slats (vertically): 2″
• Maximum start/end of slats (vertically): screen height/3
• Minimum start/end of posts (horizontally): 3/8″
• Maximum start/end of posts (horizontally): minimum value between the space divider depth and space divider length/3

Diameter of posts:

• Minimum diameter of posts: 3/8″
• Maximum diameter of posts: minimum value between the space divider depth and space divider length/4

Height of individual slats:

• Minimum slat height: 1/4″
• Maximum slat height: ++screen height/2

++This value of screen height = (total screen height – (start end position of slats*2)/2) – 1/4″

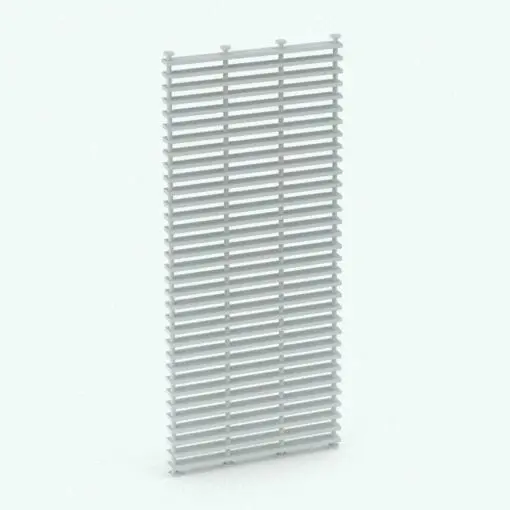

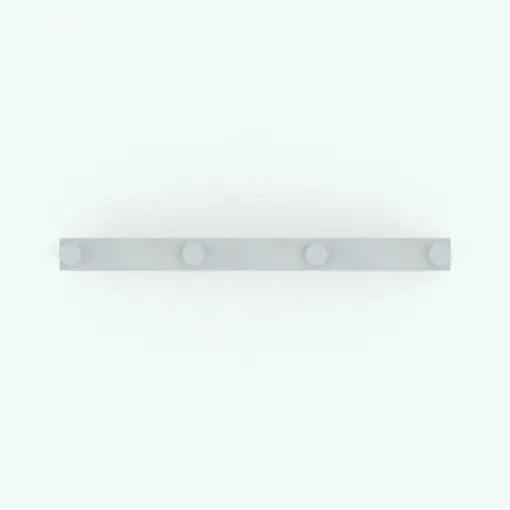

Posts can be swapped between cylindrical posts and square posts.

This Wood Slats Partition Wall Revit Family comes with material parameters for:

• Slats
• Posts

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
