Wall Mirror Waves 2

This modern mirror Revit family is ideal for houses, offices, stores/commercial spaces, hotels, and more. Its diameter can be changed to fit any space. The thickness of the outer frame can be changed  to make it look different and the outer frame can be turned on/off. The mirror comes in two options: beveled and regular.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Wall Based
• Materials/textures: Yes
• Approximate file size: 1.76 MB
• File format: .rfa

This 3D mirror comes with the following customizable parameters and options:

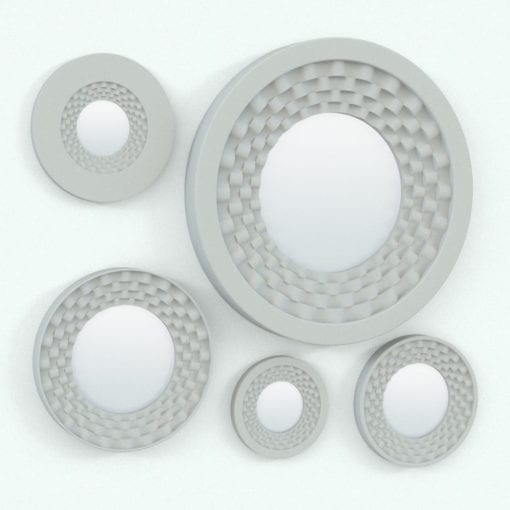

Diameter. The diameter is of the mirror only (does not include the frame – frame is extra):

• Minimum diameter: 6″
• Maximum diameter: no limit

Outer frame thickness:

• Minimum outer frame thickness: diameter of mirror/48
• Maximum outer frame thickness: no limit

There are two types of mirror: beveled and regular (they can be toggled on/off)

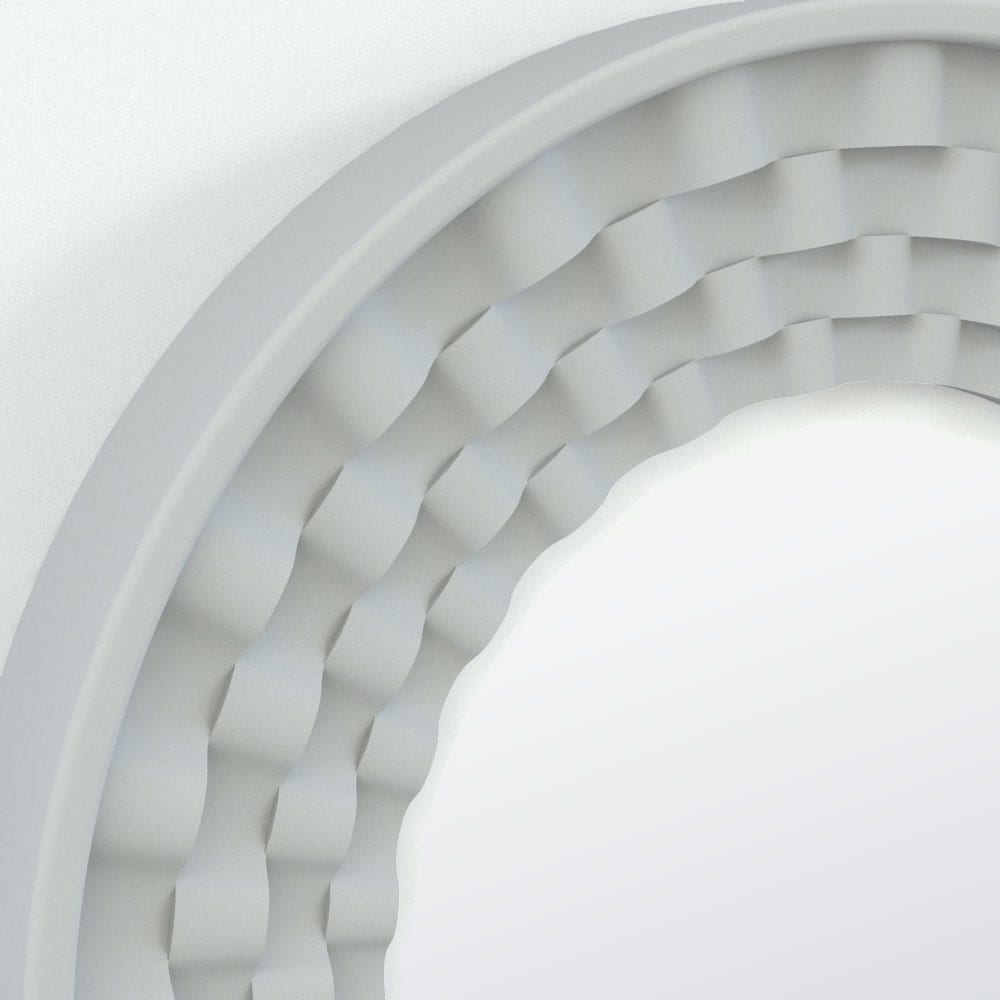

The outer frame (not the waves) can be turned on/off

Materials for:

• Mirror
• Frame (waves)
• Outer frame

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
