Wall Frame Multiple Frame Profiles 2

Liven up your living room, bedroom, hallways, office or any other space with this fully parametric picture frame Revit family that includes 5 frame options. Change the width, the height, the width of the inset, the width of the frame and the visibility of the glass and inset to create infinite variations of this family that will make your projects look unique. The combinations are endless. The frame attaches to faces so it is easier to place in your project.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes (except painting of sunflowers)
• Approximate file size: 3.34 MB
• File format: .rfa

This Revit family comes with the following customizable parameters and options:

Picture width:

• Min picture width: 4″
• Max picture width: no limit

Picture height:

• Min picture height: 4″
• Max picture height: no limit

Inset width:

• Min glass inset width: 1/4″
• Max glass inset width: no limit

Frame width:

• Min frame width: 1/2″
• Max frame width: no limit

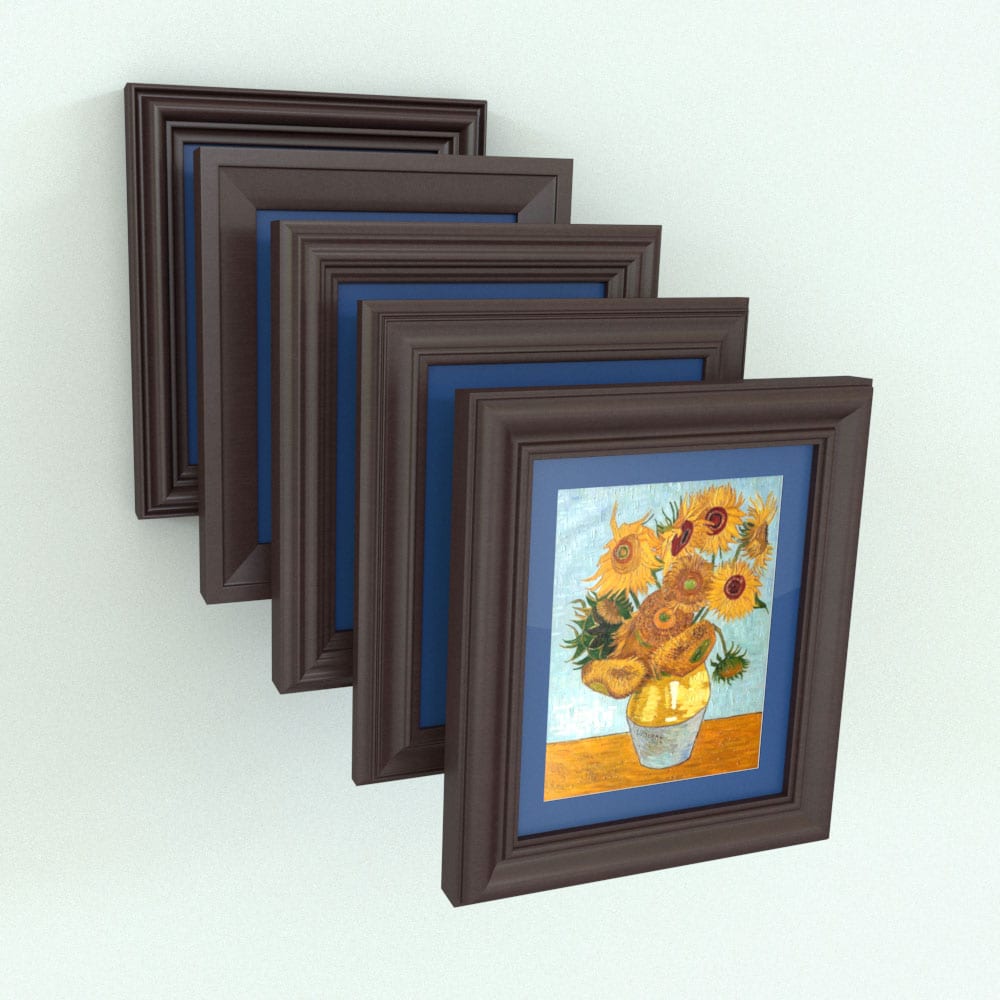

Includes 5 different types of frames

The following objects can be turned off:

• Glass
• Inset

Material parameters for:

• Glass
• Frame
• Inset
• Picture

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
