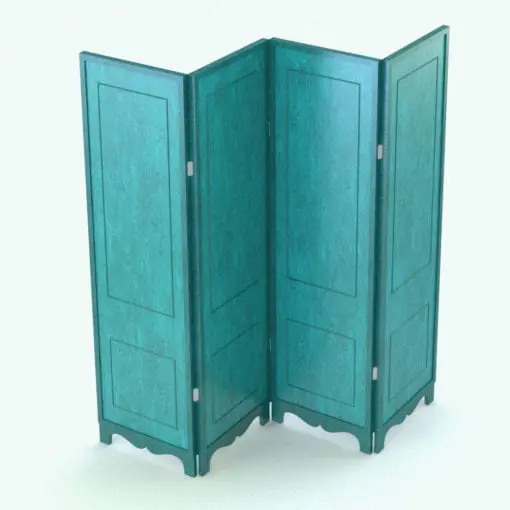

Victorian Revit Folding Partition Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.61 MB
• File format: .rfa

This Victorian Revit Folding Partition Family comes with the following customizable parameters and options:

Panel width and height:

• Minimum panel width (each one): 1′ 4″
• Maximum panel width (each one): 2′ 4″

• Minimum panel height (each one): 3′
• Maximum panel height (each one): 16′

Angles of each panel (individually):

• Minimum angle: 0
• Maximum angle: 135

If the Equal checkbox is on, the angle of all panels will be the same (it will take the angle of panel 1 as the angle for all).

This Victorian Revit Folding Partition Family comes with material parameters for:

• Details-mouldings
• Panel 1
• Panel 2
• Panel 3
• Panel 4
• Hinges

Panels 3 and 4 can be turned on/off to make it a double, triple or quadruple divider

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
