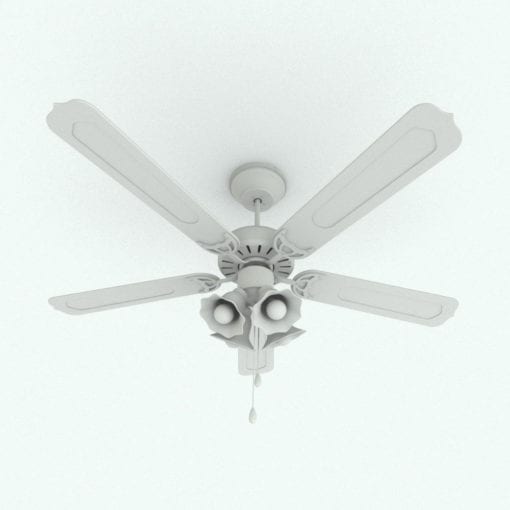

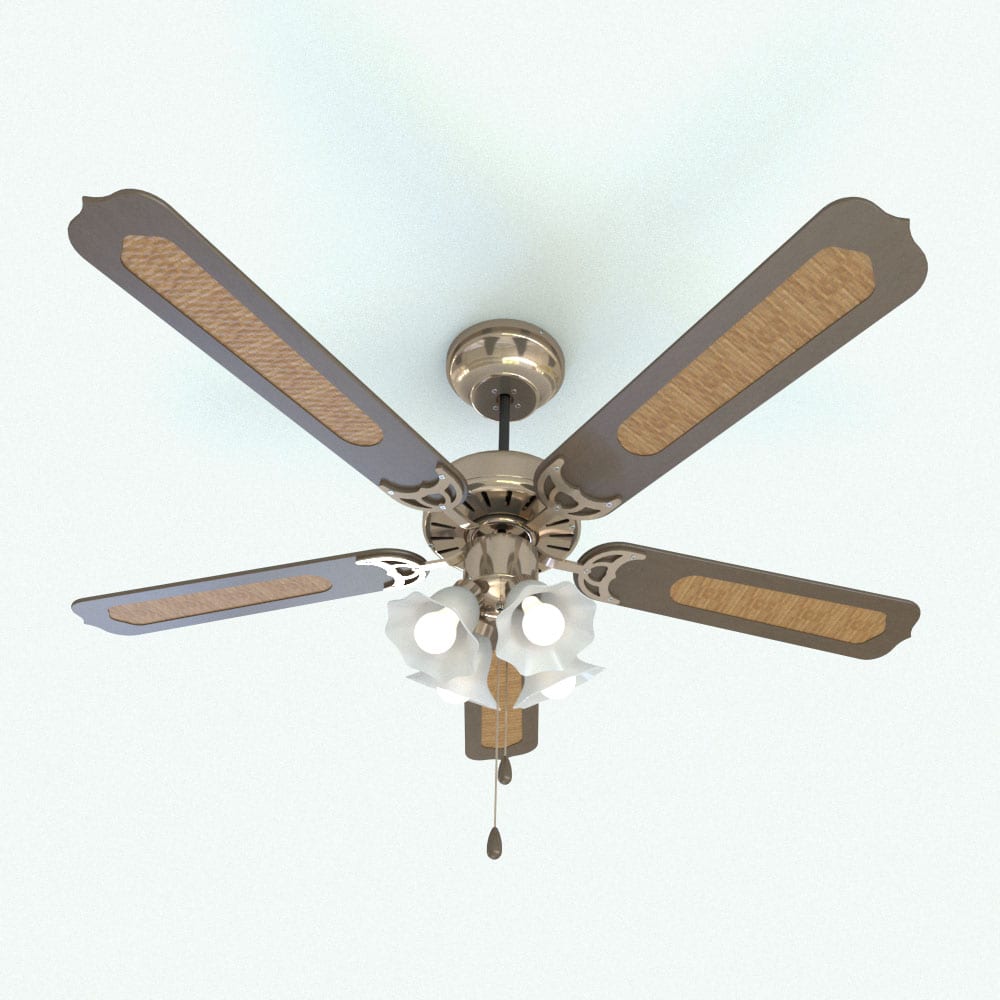

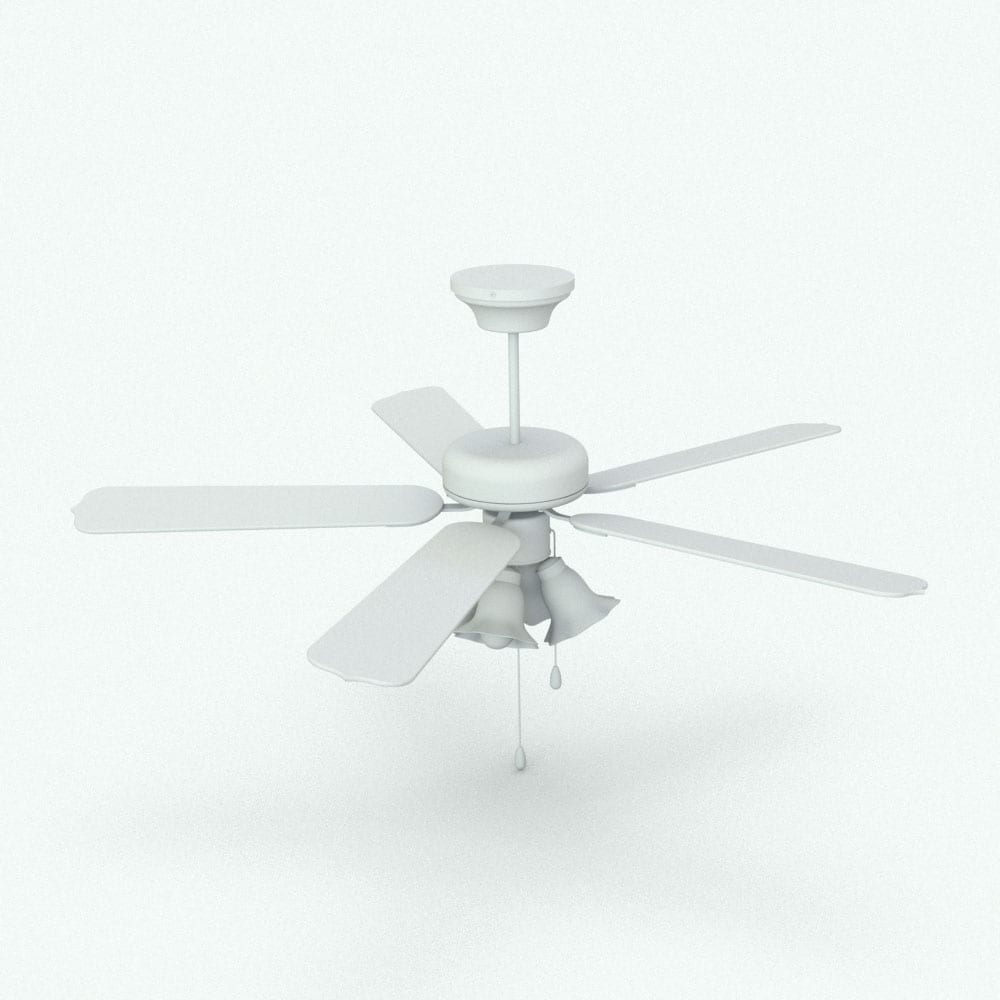

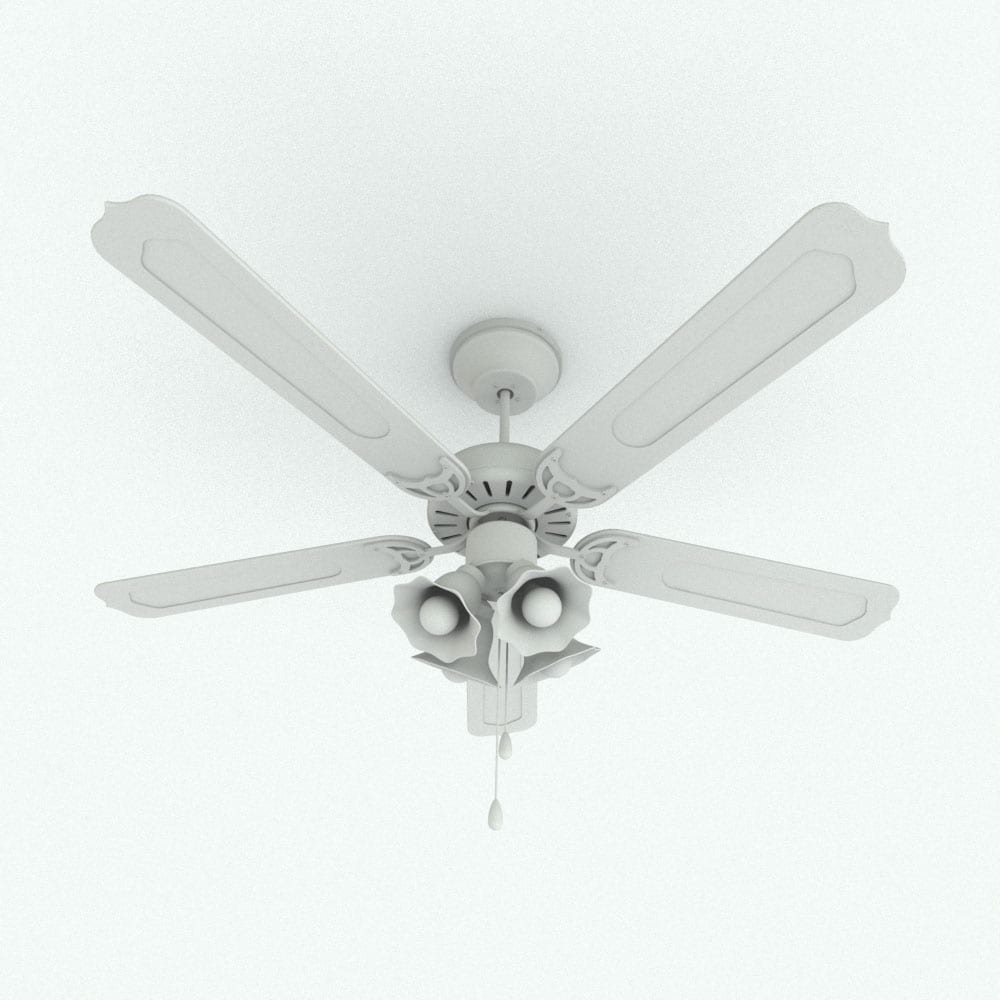

Traditional Ceiling Fan 4 Lights

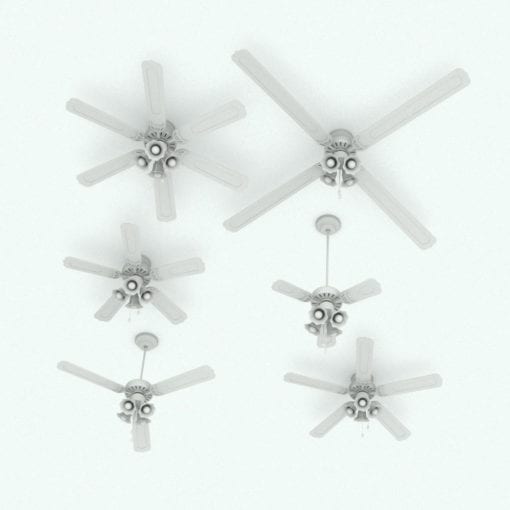

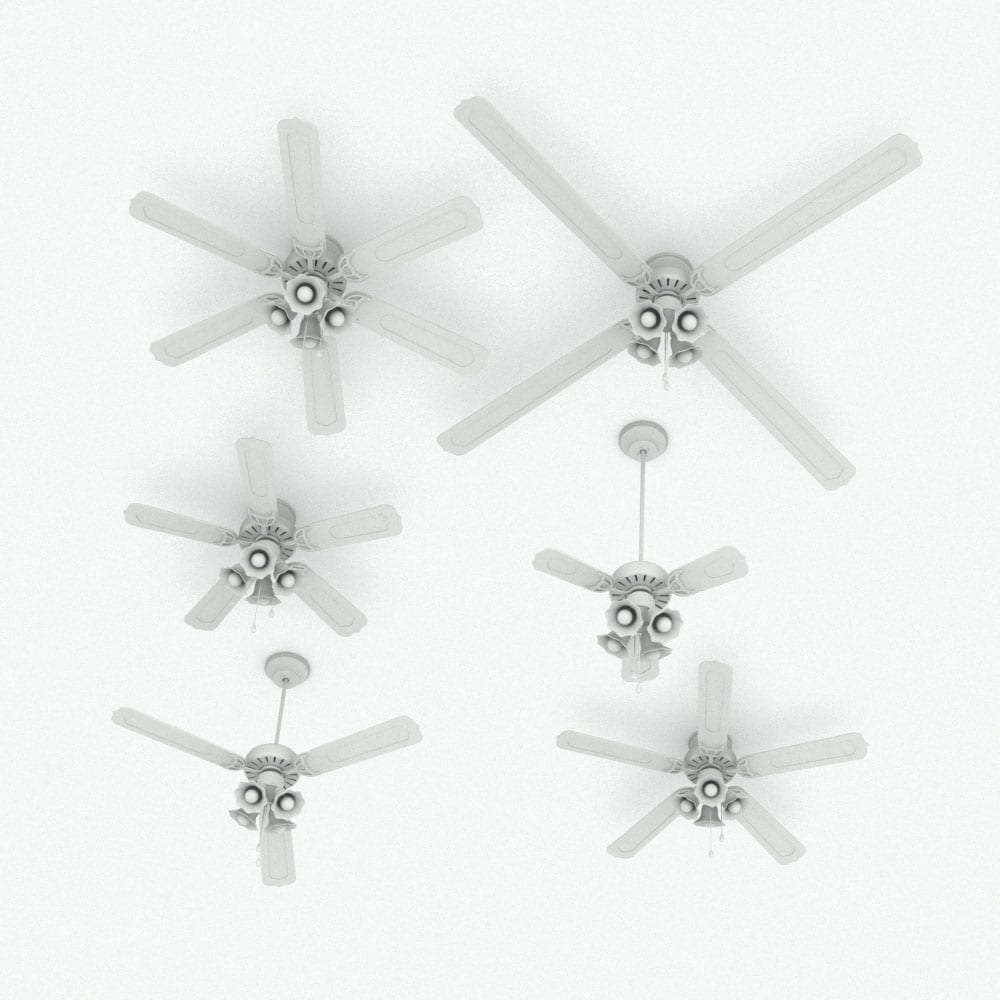

Improve the look and quality of your renders with this highly detailed parametric traditional Revit ceiling fan family. Ideal for interior as well as for exterior spaces, this fan is perfect for any room size thanks to its built-in parameters. Make it drop more or less from the ceiling, change the number of blades or their lengths and customize the length of each chain individually to create your own version of this classic ceiling fan.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 1.33 MB
• File format: .rfa

This Revit family traditional ceiling fan with 4 lights comes with the following customizable parameters and options:

Distance from ceiling:

• Minimum distance: 4″
• Maximum distance: 15′

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chains can be changed individually:

• Minimum length: 6″
• Maximum length: 8′

Material parameters for:

• Housing
• Light Fixture
• Light+
• Blades
• Blades 2
• Blades Details
• Downrod
• Chain
• Handles
• Bulb Screw
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
