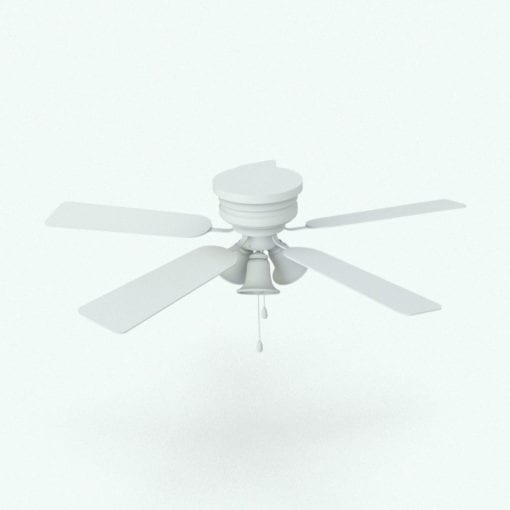

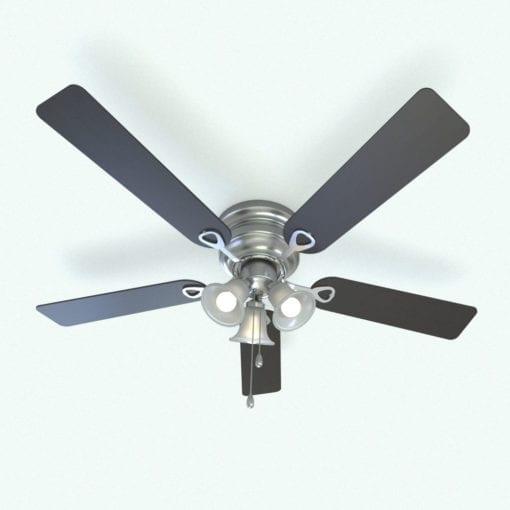

Traditional Ceiling Fan 3 Lights 2

This parametric Revit ceiling fan family, ideal for interior and exterior spaces, is the perfect choice for any room size due to its built-in flexibility. With many parameters to change, like the number of blades, the blades length and the chains lengths, this family will give you plenty of options to choose from so your projects don’t look the same.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Ceiling Based
• Materials/textures: Yes
• Approximate file size: 1.02 MB
• File format: .rfa

This Revit family traditional ceiling fan with 3 lights comes with the following customizable parameters and options:

Number of blades:

• Minimum number of blades: 3
• Maximum number of blades: 6

Blades length:

• Minimum length: 1′
• Maximum length: 3’6″

Length of chains can be changed individually:

• Minimum length: 6″
• Maximum length: 8′

Material parameters for:

• Housing
• Bulb
• Glass
• Light Fixture Base
• Light+
• Blades
• Blades Details
• Downrod
• Chains
• Handles
• Screws

+ There is not an actual light in this family, but a material parameter where you can add an emissive material

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
