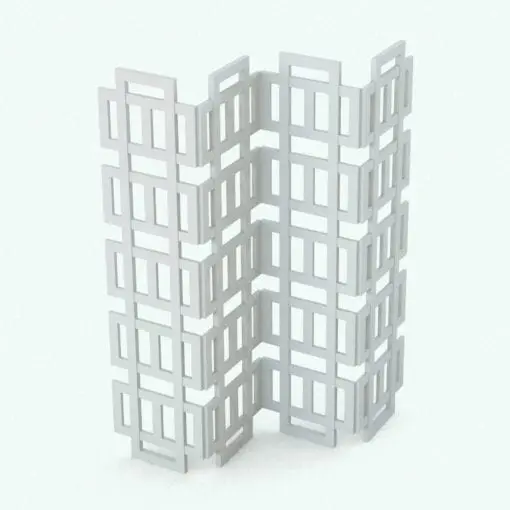

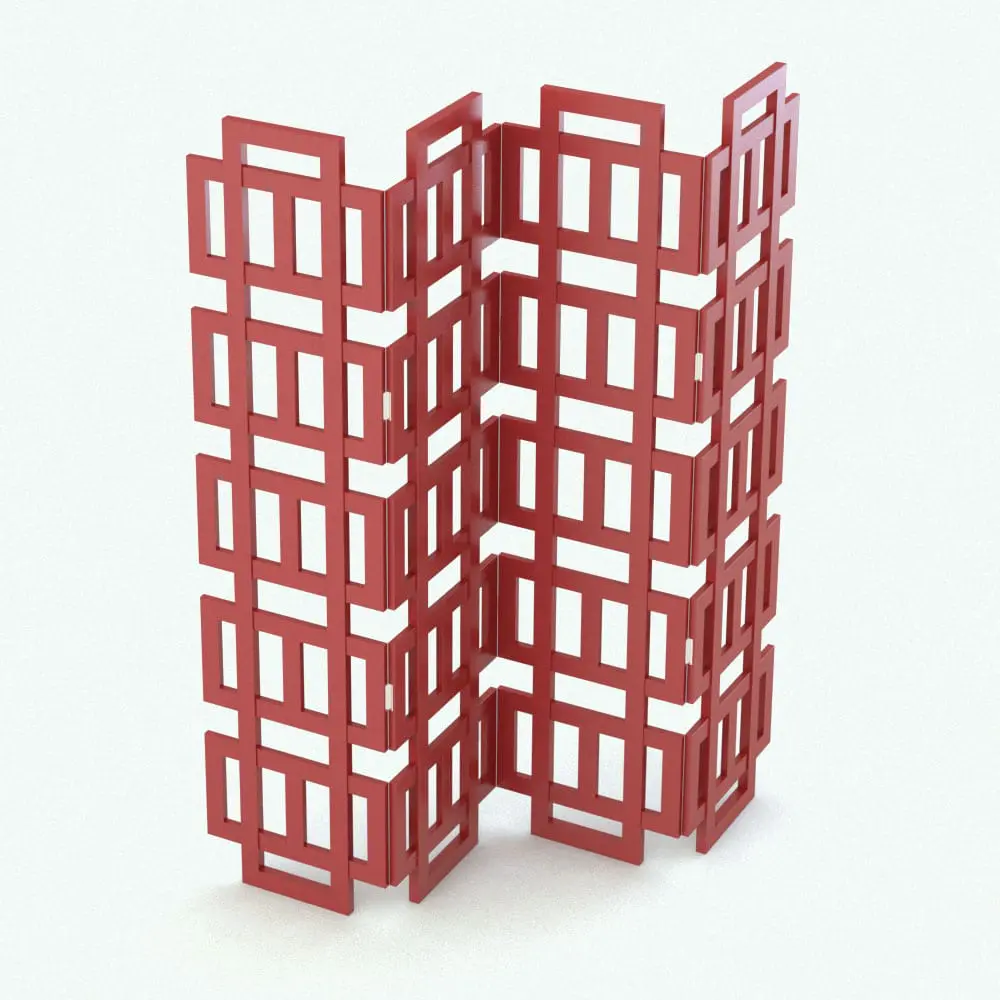

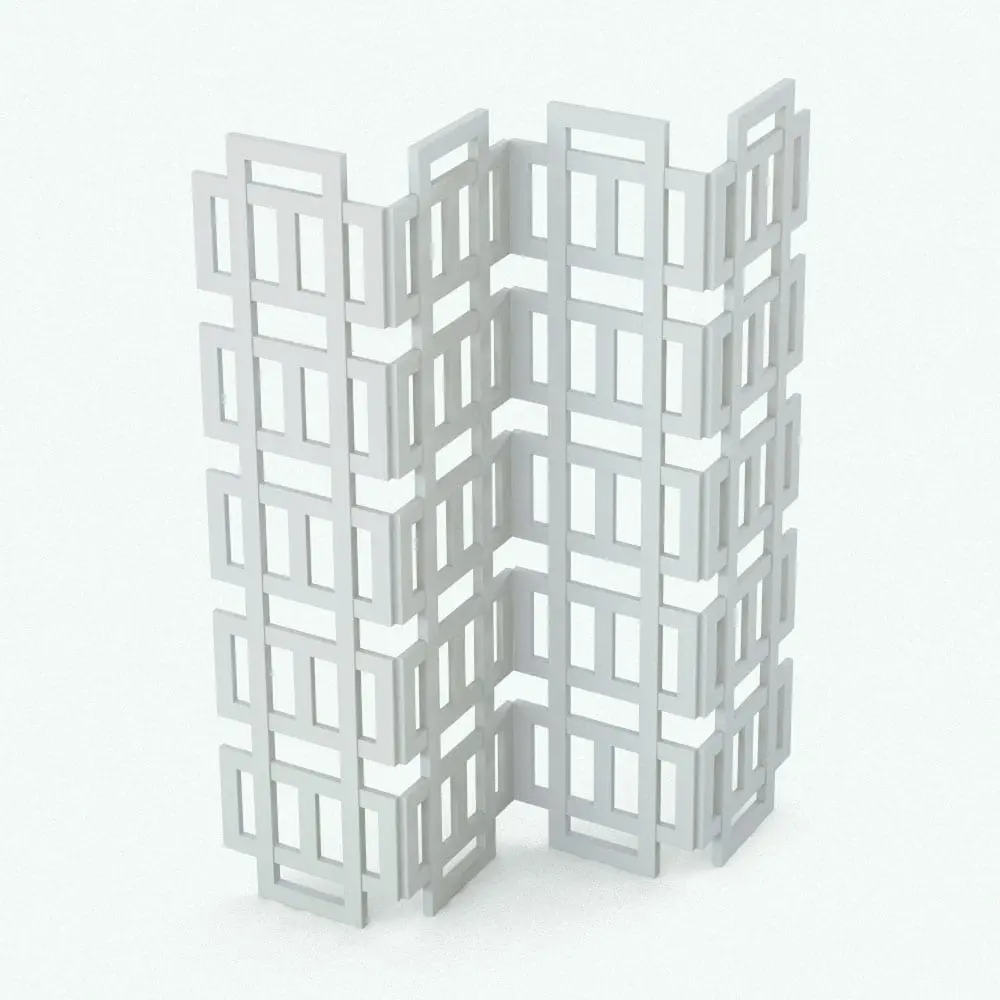

Modern Squares Revit Folding Partition Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.79 MB
• File format: .rfa

This Modern Squares Revit Folding Partition Family comes with the following customizable parameters and options:

Width and height of panels:

• Minimum Height: 3′
• Minimum Width: 1′

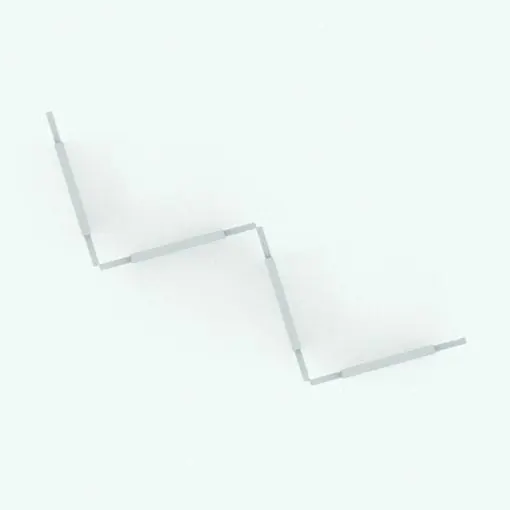

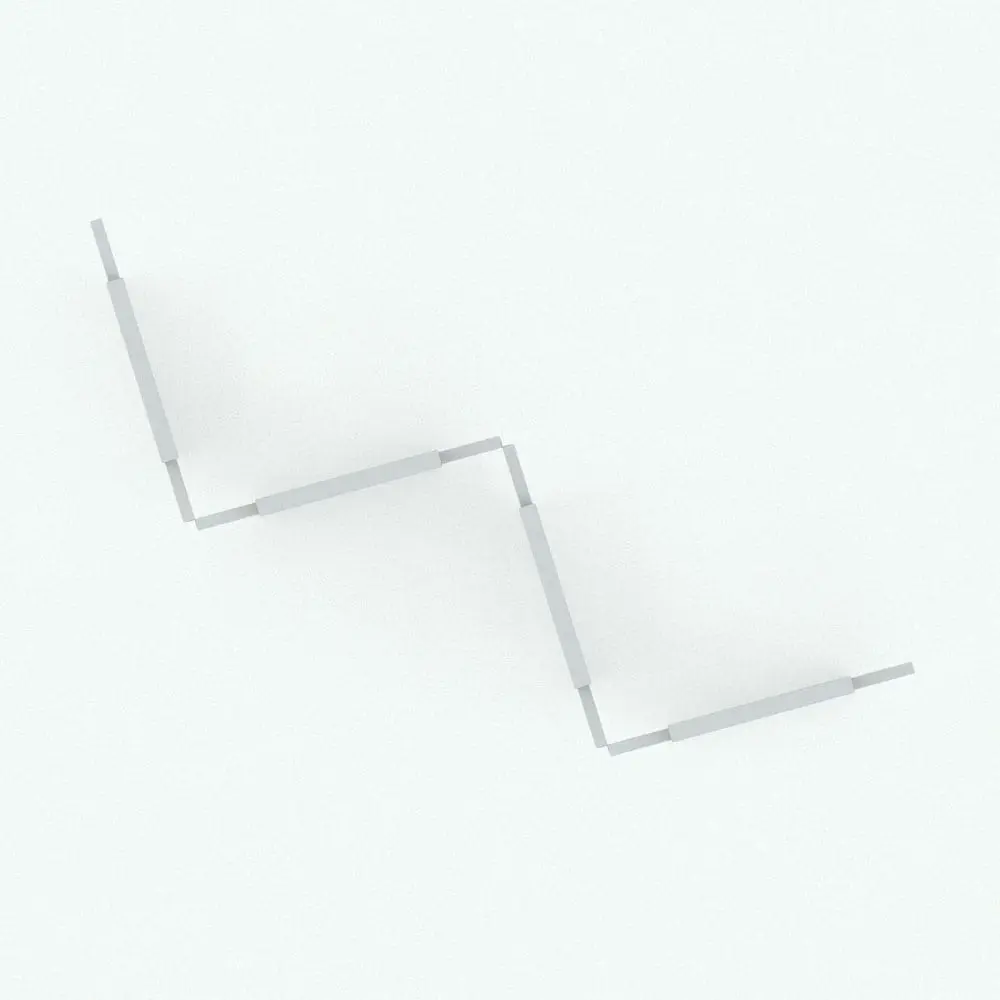

Angles of each panel (individually):

• Minimum angle: 0
• Maximum angle: 135

Additionally, this Revit partition family comes with the following parameters for additional customization.

If the Equal checkbox is on, the angle of all panels will be the same (it will take the angle of panel 1 as the angle for all).

Hinges can be turned on/off

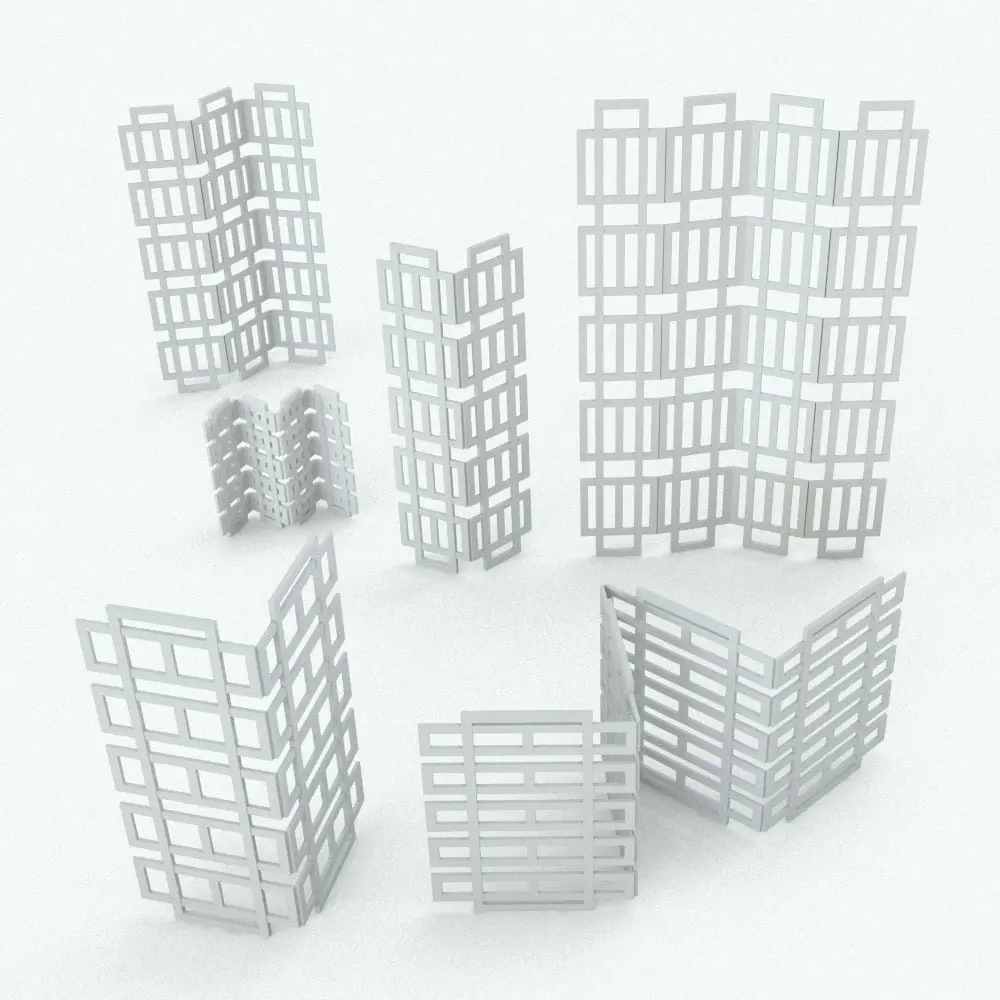

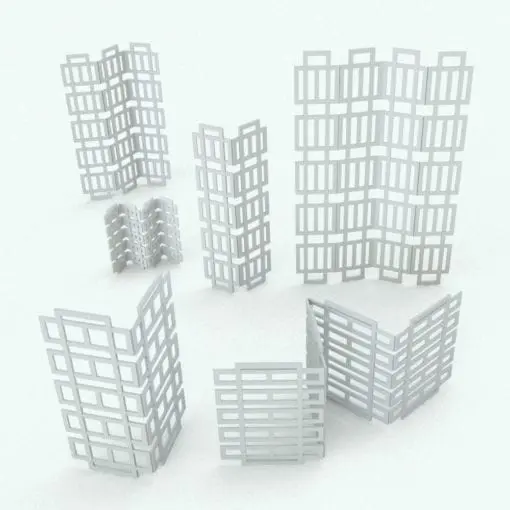

Panels 3 and 4 can be turned on/off to make it a double, triple or quadruple divider

After changing the angles it might be necessary to rotate the family to make sure it’s in the right position.

This Modern Squares Revit Folding Partition Family comes with material parameters for:

• Space divider
• Hinges

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
