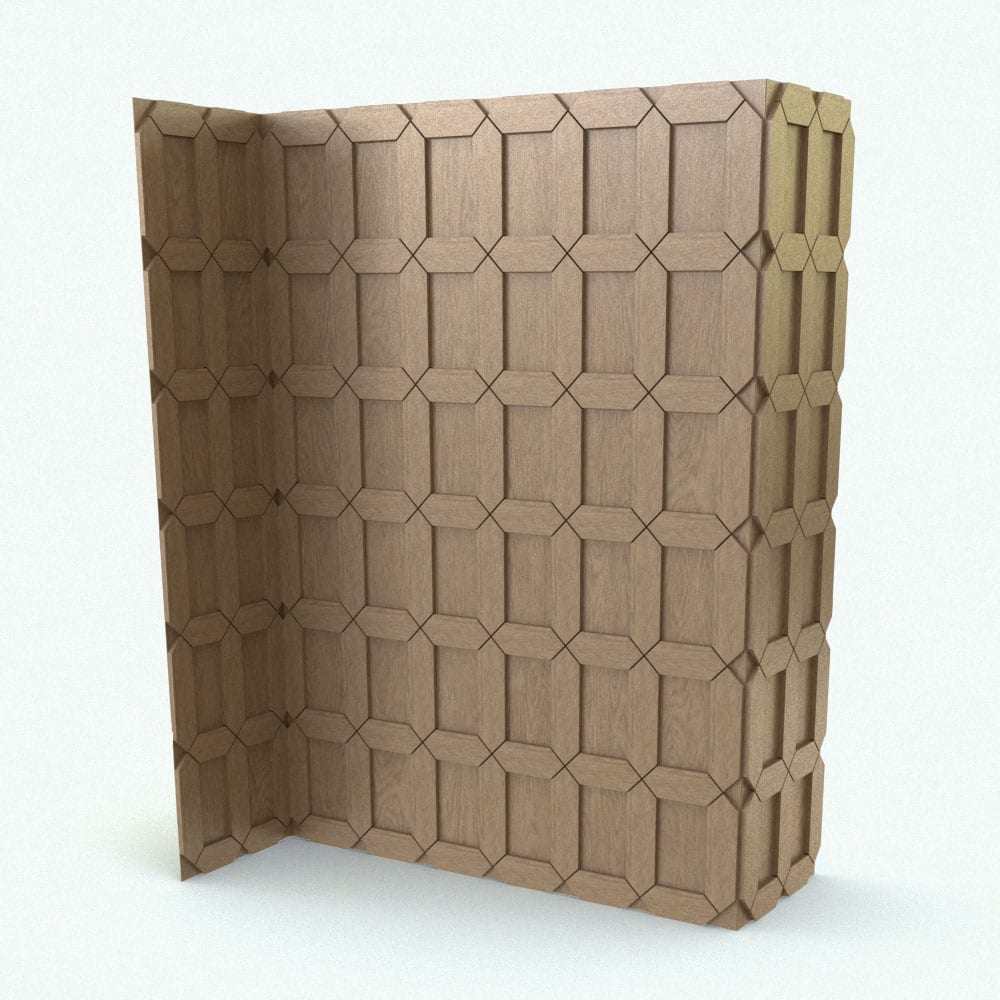

Modern Geometric Wall Molding Revit Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Line Based
• Materials/textures: Yes
• Approximate file size: 0.66 MB
• File format: .rfa

This geometric wall molding Revit family comes with the following customizable parameters and options:

Height of the paneling:

• Minimum height: 5’6″
• Maximum height: 20′

Number of squares can:

• Minimum number of squares horizontal: 2
• Maximum number of squares horizontal: Length/(Bars Thickness*2)
• Minimum number of squares vertical: 2
• Maximum number of squares vertical: Height/(Bars Thickness*2)

Bars Thickness:

• Minimum bars thickness: 1″
• Maximum bars thickness: Length/6

Bars Depth:

• Minimum bars depth: 1/2″
• Maximum bars depth: 5′

Backdrop can be removed.

NOTE: After loading this modern geometric wall molding Revit family into a project, you can place it in your model through the Component Tool.

Additionally, there are material parameters for:

• Panel
• Backdrop

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
