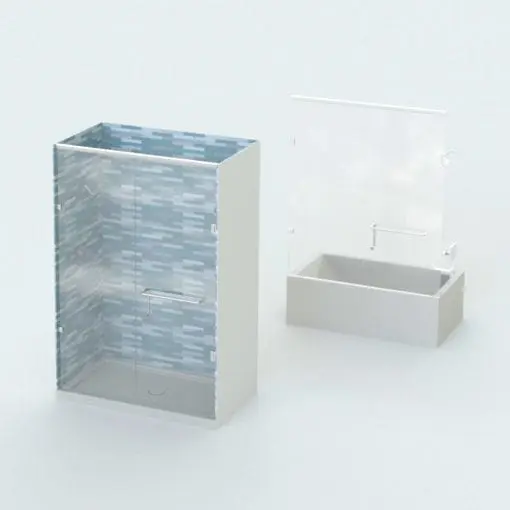

Modern Dual-Single Shower

This Revit family shower can adapt to any space. With options to convert it from shower to bathtub, and with many other parameters to change the size, the materials, the look and the number of faucets, this shower Revit family is ideal for any type of project.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Plumbing Fixtures
• Materials/textures: Yes
• Approximate file size (set): 1.13 MB
• File format: .rfa

This 3D shower comes with the following customizable parameters and options:

Width, depth and height of shower, as well as door height can be changed:

• Minimum width: 3′
• Maximum width: 20′

• Minimum height: 6′
• Maximum height: 20′

• Minimum depth: 2″
• Maximum depth: 10′

• Minimum door height: 6′
• Maximum door height: 20′

Door height can be matched to shower height by turning the Door Match Height checkbox on.

Shower can be changed to a bathtub.

Visibility of each of the three surrounding walls, as well as the faucets and heads can be turned on/off.

Material parameters for:

• Glass
• Handles
• Plastic
• Shower Base
• Wall 1
• Wall 2
• Wall 3

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
