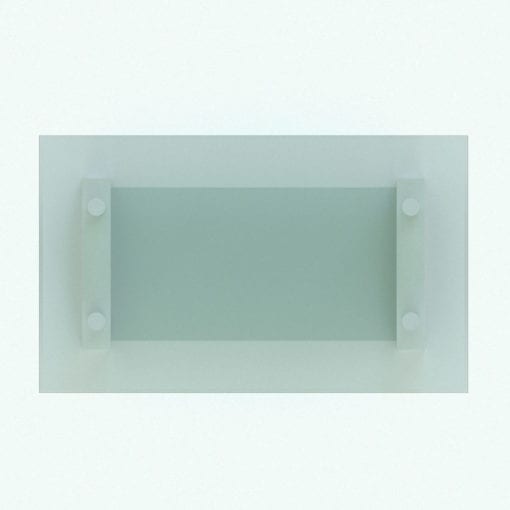

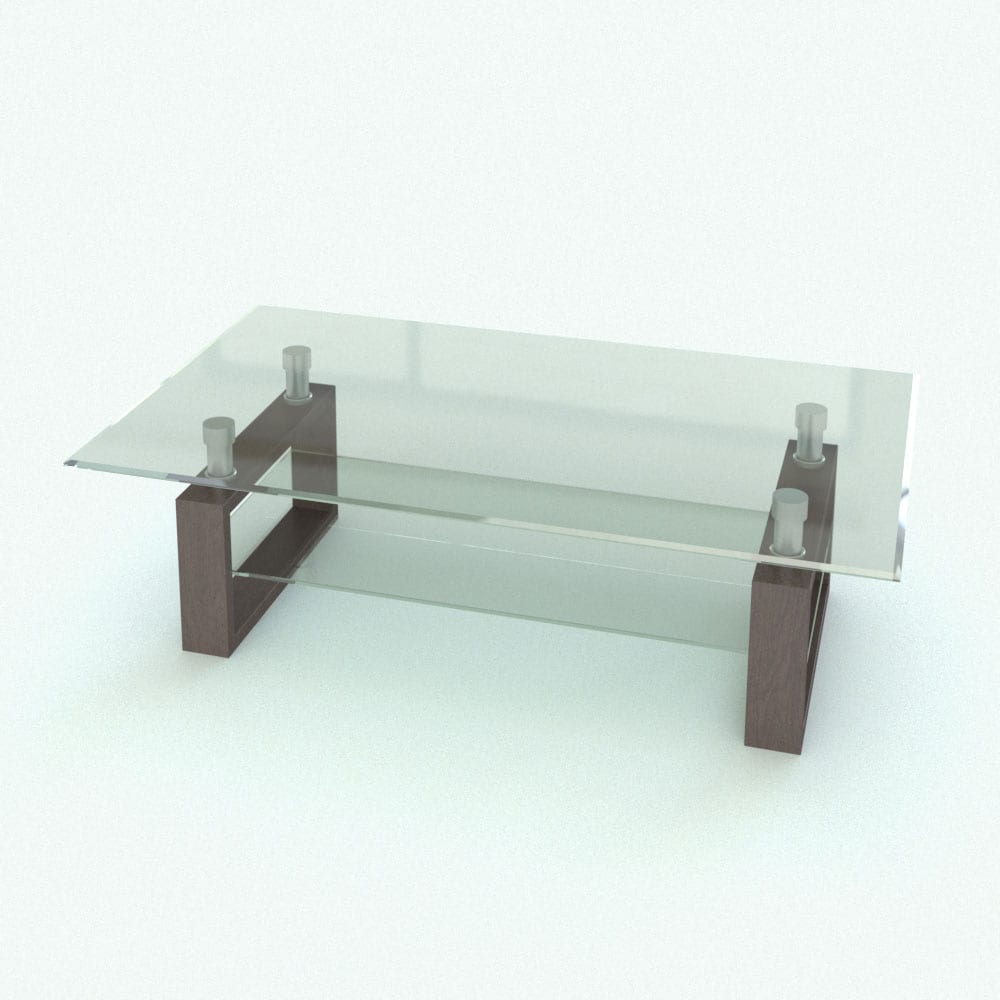

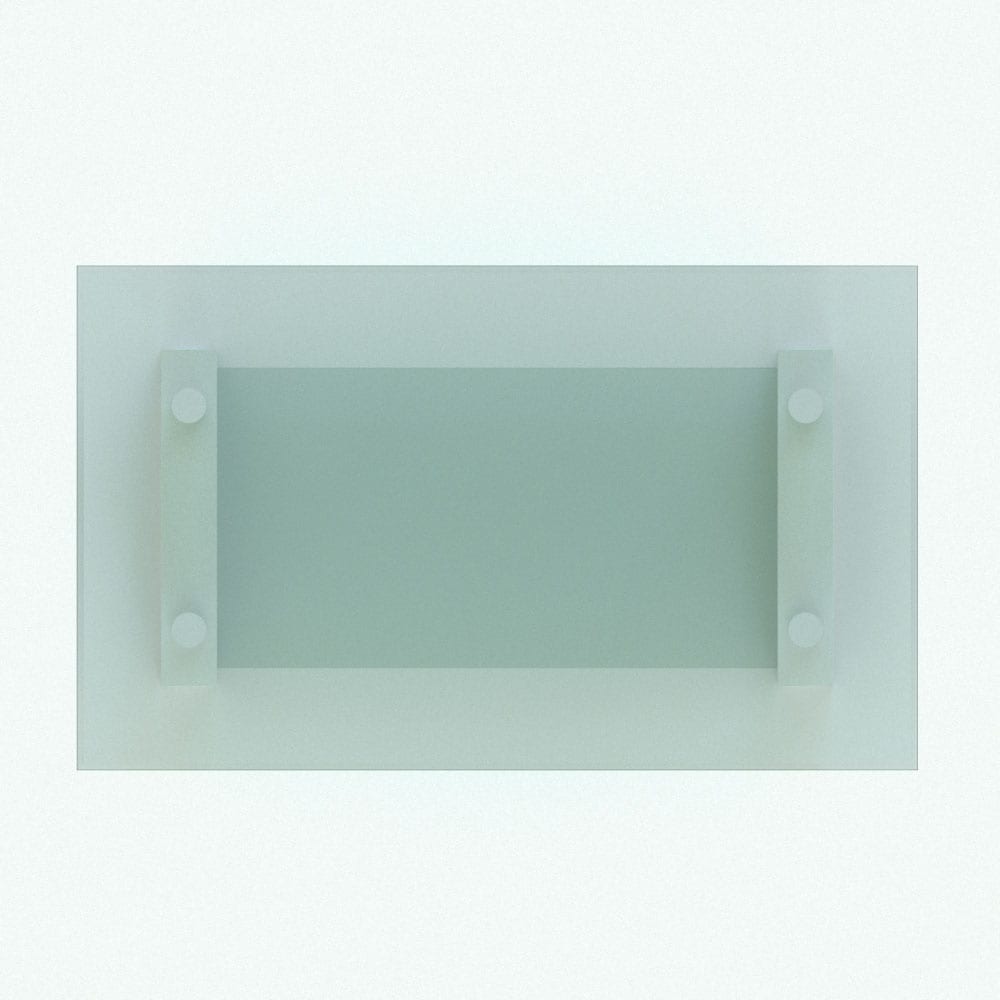

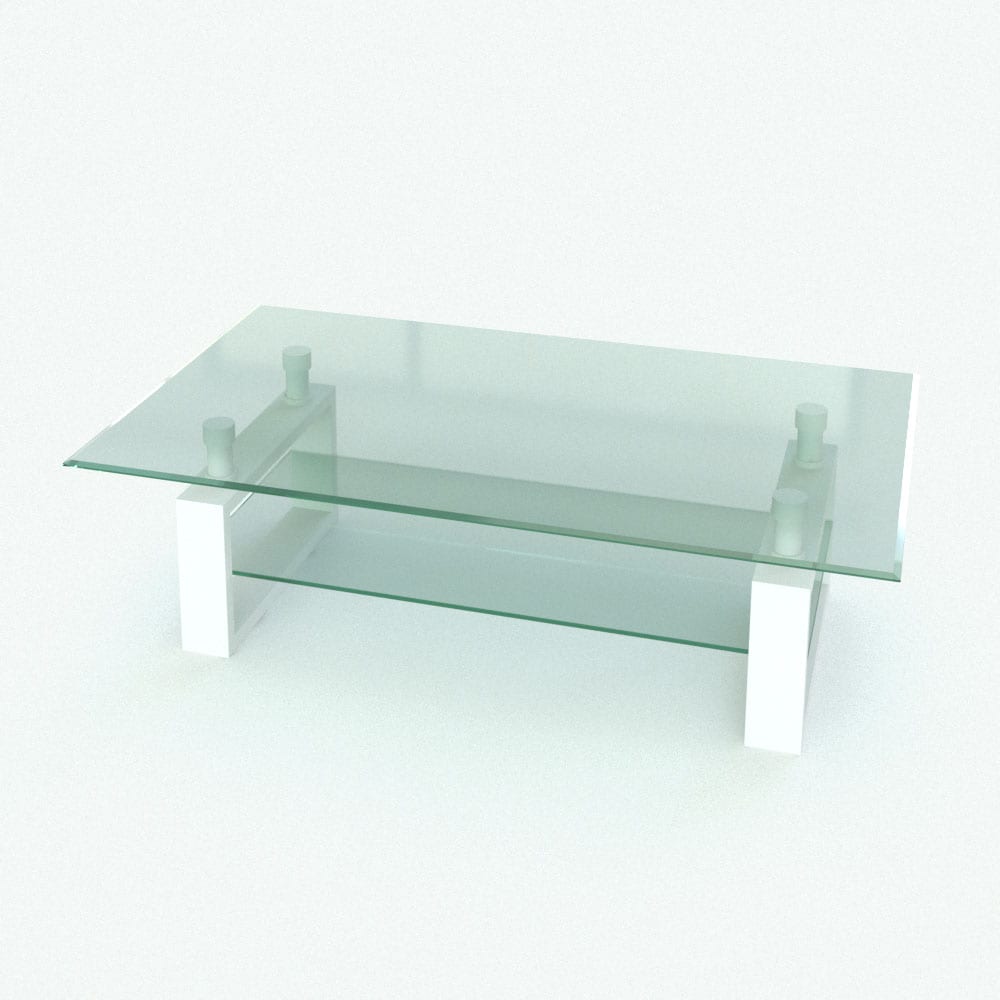

Modern Double Glass Coffee Table

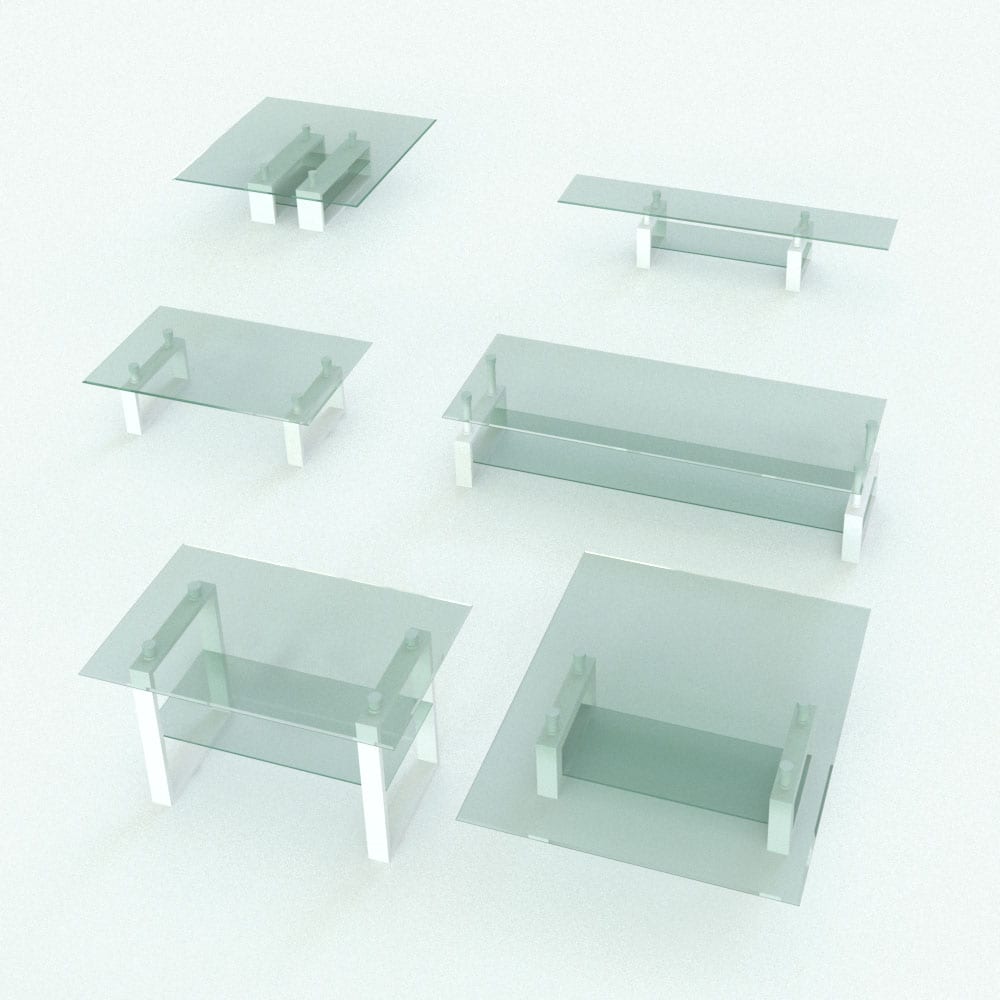

This parametric coffee table Revit family can be used as a side/end table, a coffee table or a stand for sculptures or flower arrangements.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.48 MB
• File format: .rfa

This BIM object comes with the following customizable parameters and options:

Overall width, depth and height of the coffee table (measured to the edges of the tabletop):

• Minimum width: 2’6″
• Maximum width: 30′

• Minimum depth: 1’6″
• Maximum depth: 30′

• Minimum height: 1′
• Maximum height: 5′

Legs separation, width, depth, thickness and height:

• Minimum legs separation: 1’6″
• Maximum legs separation: not greater than the overall width of the coffee table

• Minimum legs width: 2″
• Maximum legs width: legs separation/3

• Minimum legs depth: 1’2″
• Maximum legs depth: not greater than the overall depth of the coffee table

• Minimum legs thickness: 1/2″
• Maximum legs thickness: 3″

• Minimum legs height: 8″
• Maximum legs height: not greater than overall height of coffee table – 3″

Supports diameter:

• Minimum supports diameter: 1″
• Maximum supports diameter: the smallest value between the Leg Width and the Leg Depth/4

Bottom glass height:

• Minimum glass height: Leg Thickness + 1/32″
• Maximum glass height: Leg Height – Leg Thickness – 1″

Bottom glass can be automatically centered by turning on the “Bottom Glass Centered Vertically” checkbox.

Bottom glass can be turned on/off

Material parameters for:

• Bottom Glass
• Legs
• Supports
• Top Glass

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
