Modern Crib Revit Furniture Set

Crib Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.96 MB
• File format: .rfa

Armoire Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.56 MB
• File format: .rfa

Chest With Drawers Revit Family:

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.49 MB
• File format: .rfa

This Modern Crib Revit Furniture Set comes with the following customizable parameters and options:

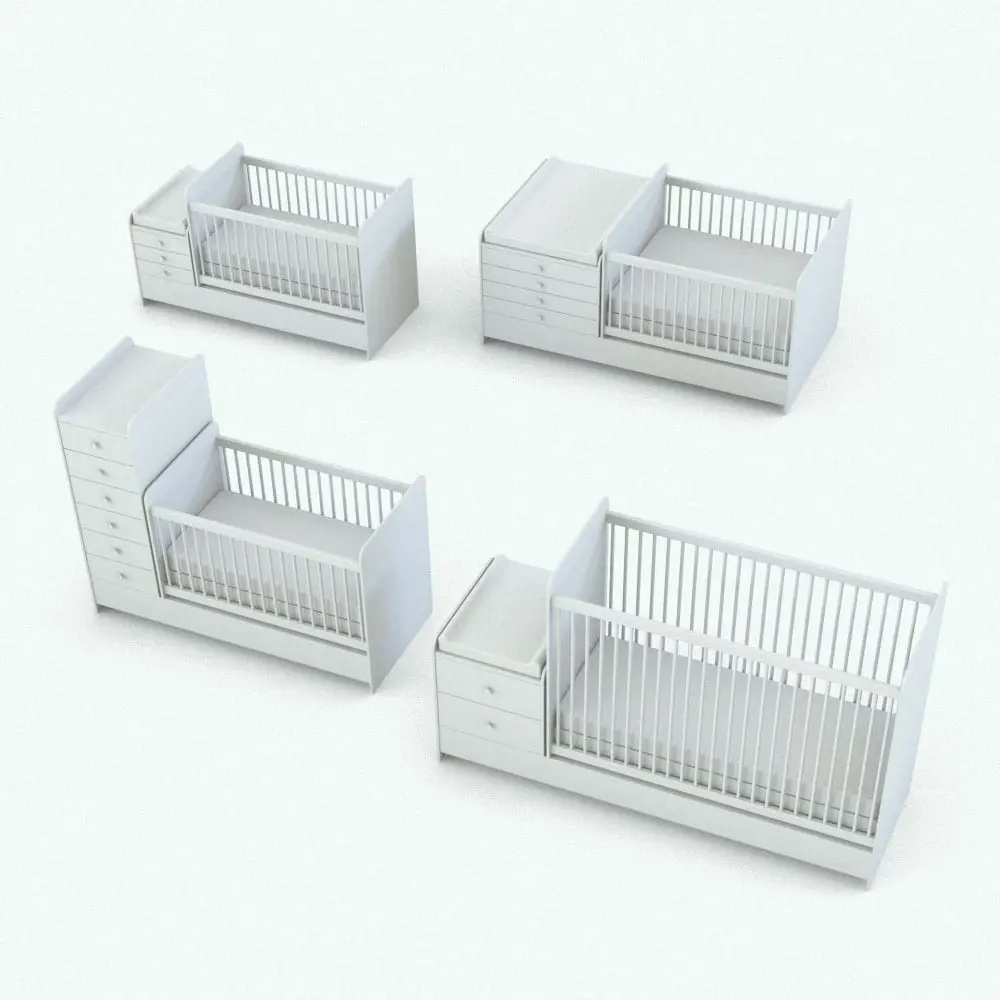

Crib With Integrated Changing Station Revit Family:

Crib and drawers widths:

• Minimum crib width: 4′
• Maximum crib width: 6′

• Minimum drawers width: 1′
• Maximum drawers width: 4′

Depth of this Revit furniture family:

• Minimum depth: 2’4″
• Maximum depth: 4′

Crib height+:

• Minimum crib height: 1’10”
• Maximum crib height: 4′

Drawers section height+:

• Minimum drawers section height: 1’6″
• Maximum drawers section height: 5′

+ Measured from 11″ off the ground all the way up to the top of the curved parts

Number of drawers in this Revit furniture family:

• Minimum number of drawers: 2
• Maximum number of drawers: as many as long as their height is not less than approximately 5″

Pad can be removed

This crib, which is part of the Modern Crib Revit Furniture Set comes with material parameters for:

• Crib
• Drawers
• Mattress
• Guardrails
• Pad
• Box
• Knobs
• Bolt Caps

Armoire Revit Family:

Drawers-double doors width:

• Minimum drawers-double doors width: 1′
• Maximum drawers-double doors width: 12′

Single door width:

• Minimum single door width: 1′
• Maximum single door width: 6′

Depth of this Revit furniture family:

• Minimum depth: 1′
• Maximum depth: 4′

Height:

• Minimum height: 5′
• Maximum height: 12′

This armoire, which is part of the Modern Crib Revit Furniture Set comes with material parameters for:

• Armoire
• Double doors
• Single Door
• Drawers
• Knobs

Chest With Drawers Revit Family:

Width:

• Minimum width: 1′
• Maximum width: 12′

Depth of this Revit furniture family:

• Minimum depth: 1′
• Maximum depth: 4′

Height+:

• Minimum height: 2’6″
• Maximum height: 6′

+ Includes the curved section at the top

This chest of drawers, which is part of the Modern Crib Revit Furniture Set comes with material parameters for:

• Chest
• Drawers
• Knobs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
