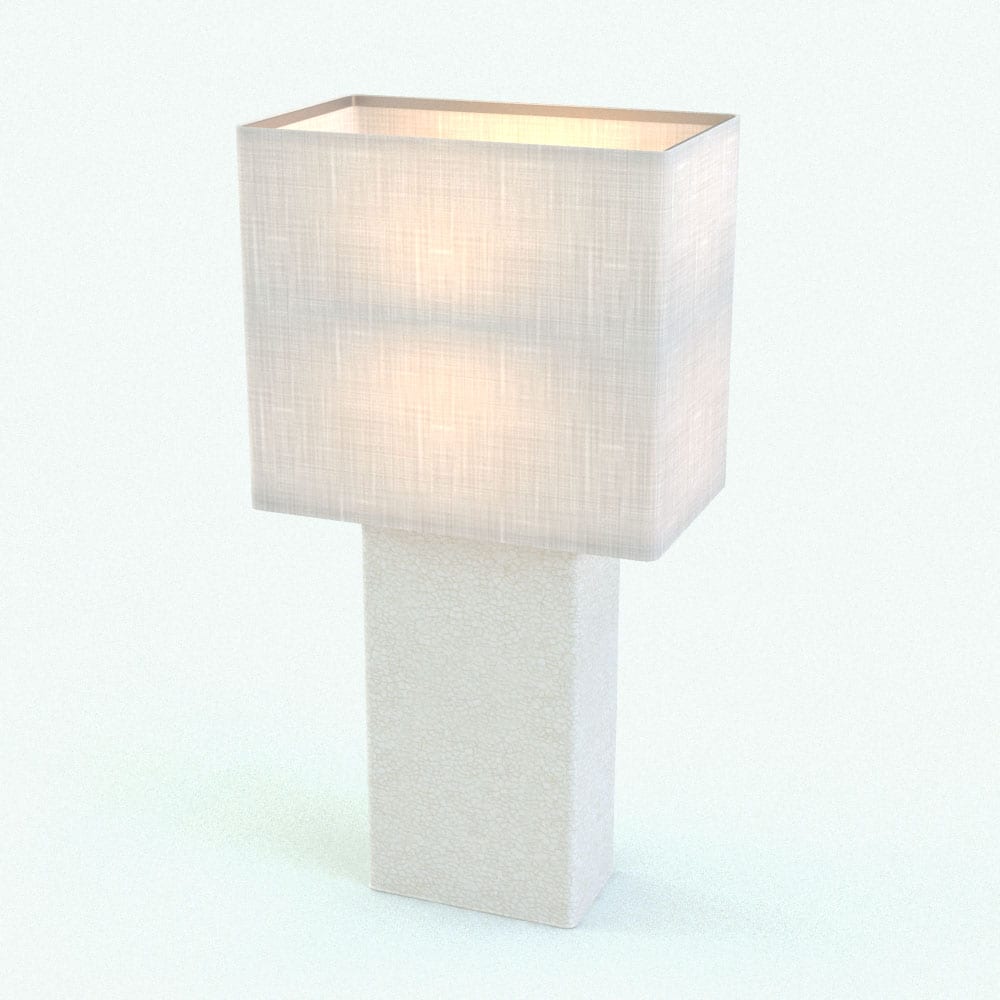

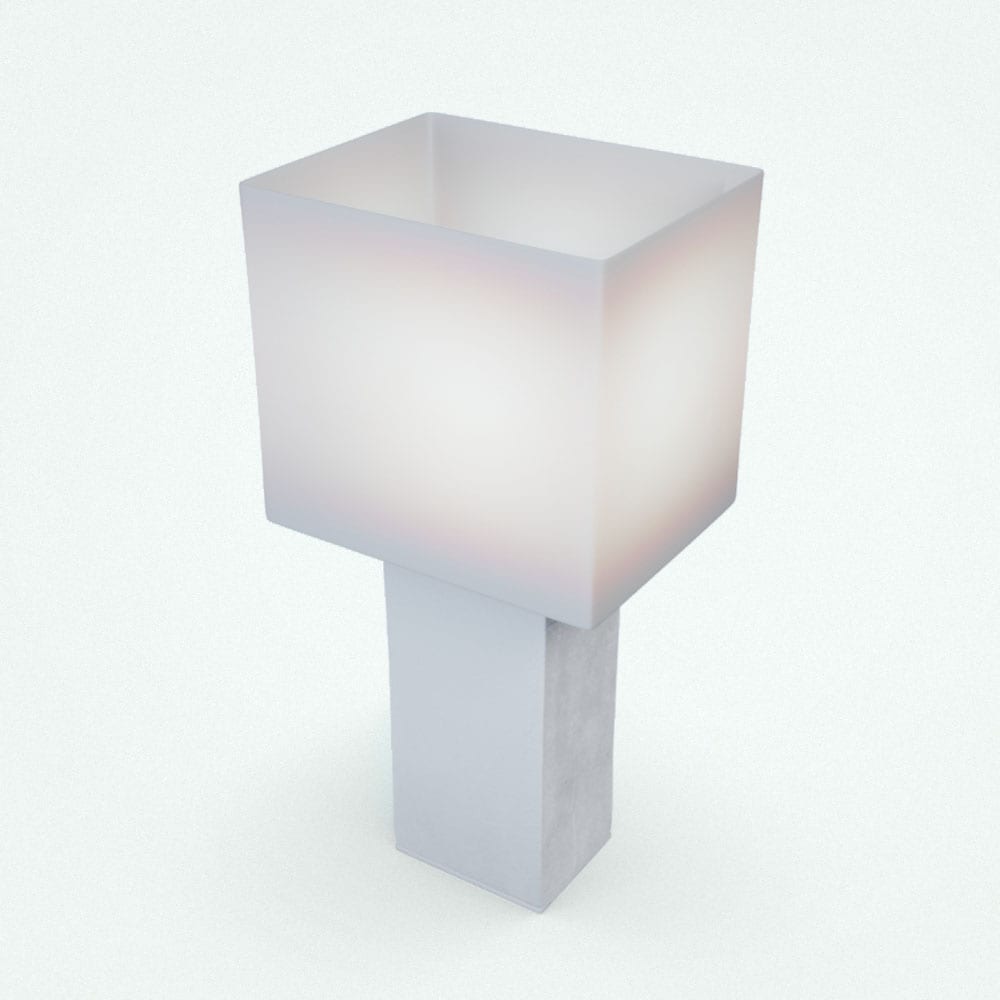

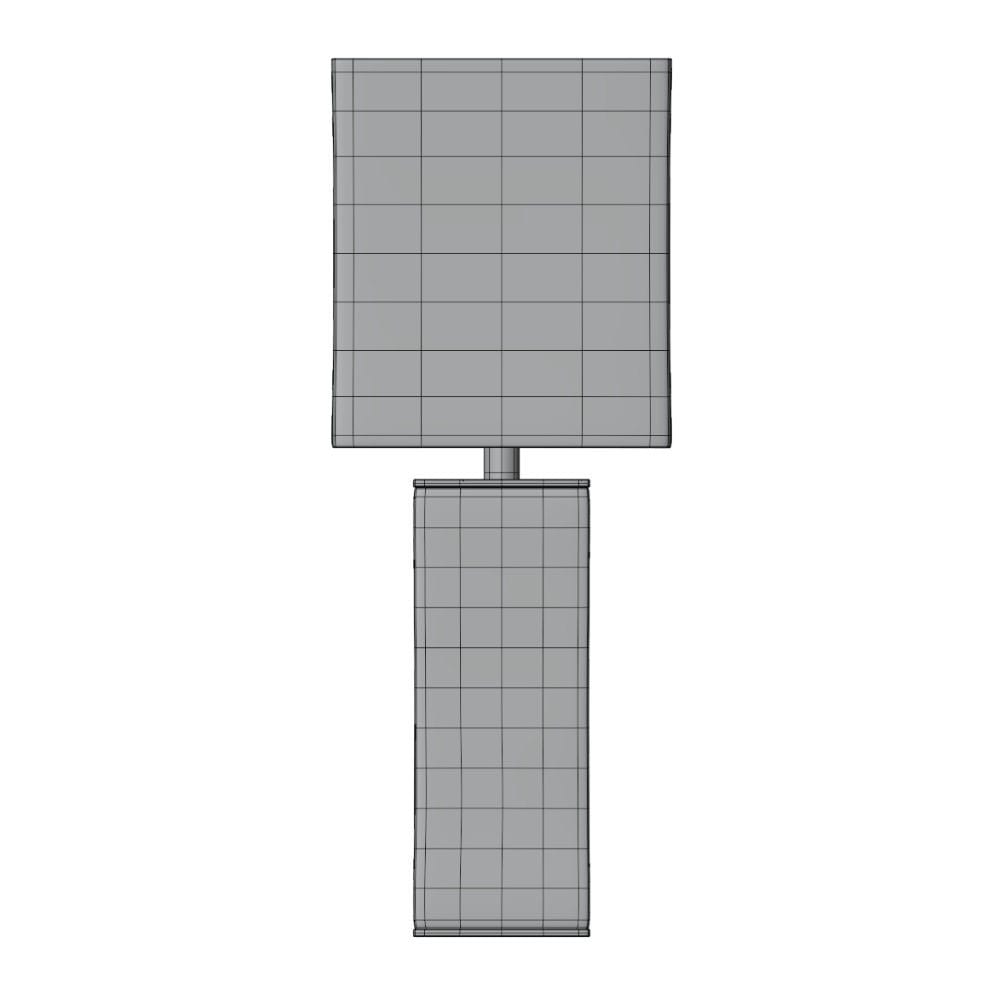

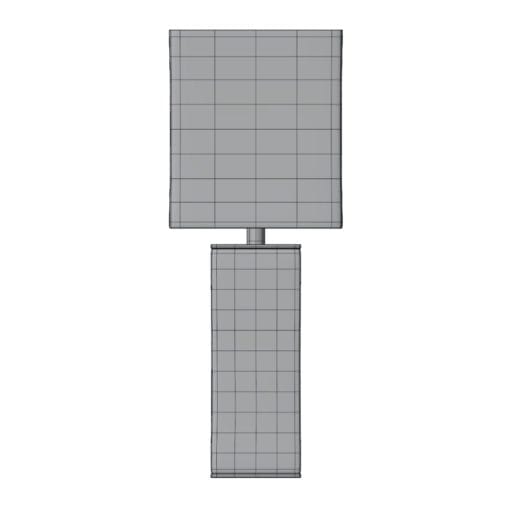

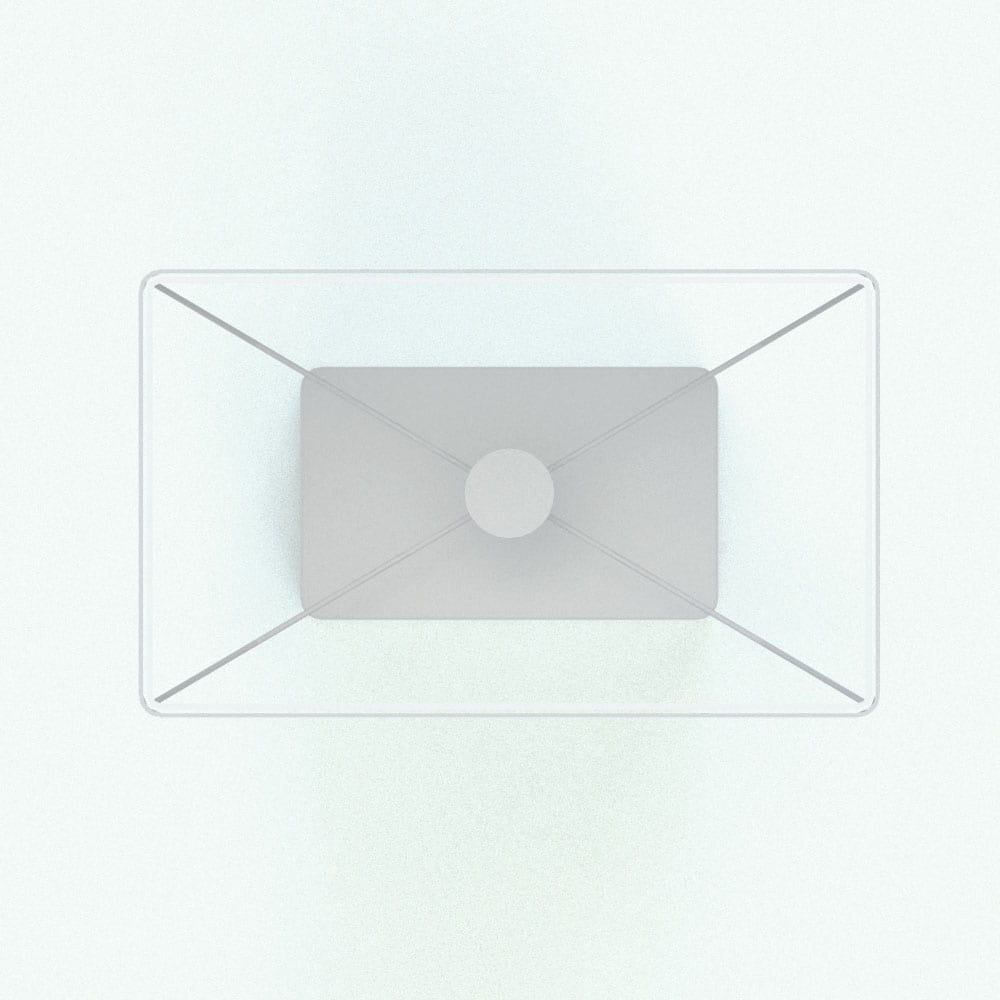

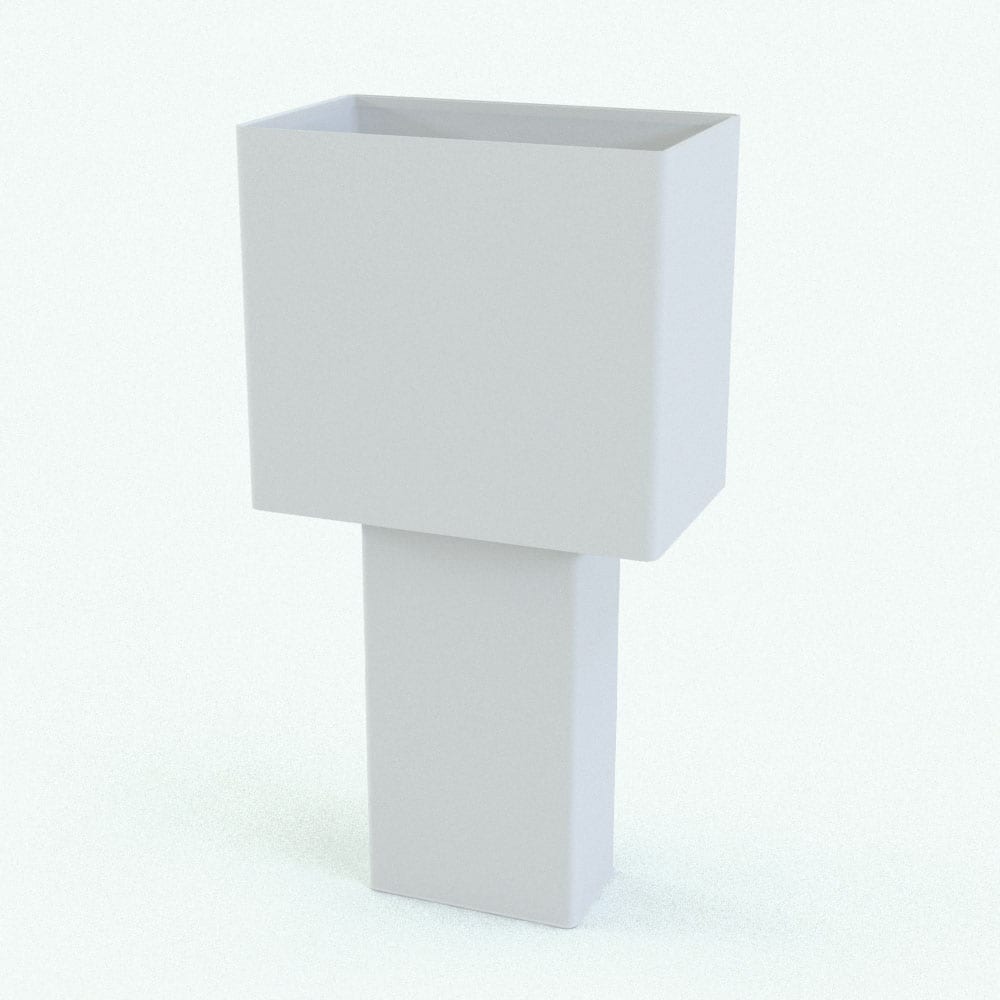

Leather Square Lamp

This Revit family square lamp is ideal to make any space in your project look photoreal. It comes in three pre-configured family sizes, each with two different light softness (harsh shadows and soft shadows). Create additional lamp sizes by duplicating the family (Edit Type) and changing any of the multiple parameters that it offers, like width, depth, height, etc.

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Lighting
• Materials/textures: Yes
• Approximate file size (set): 0.54 MB
• File format: .rfa

This family comes with the following customizable parameters and options:

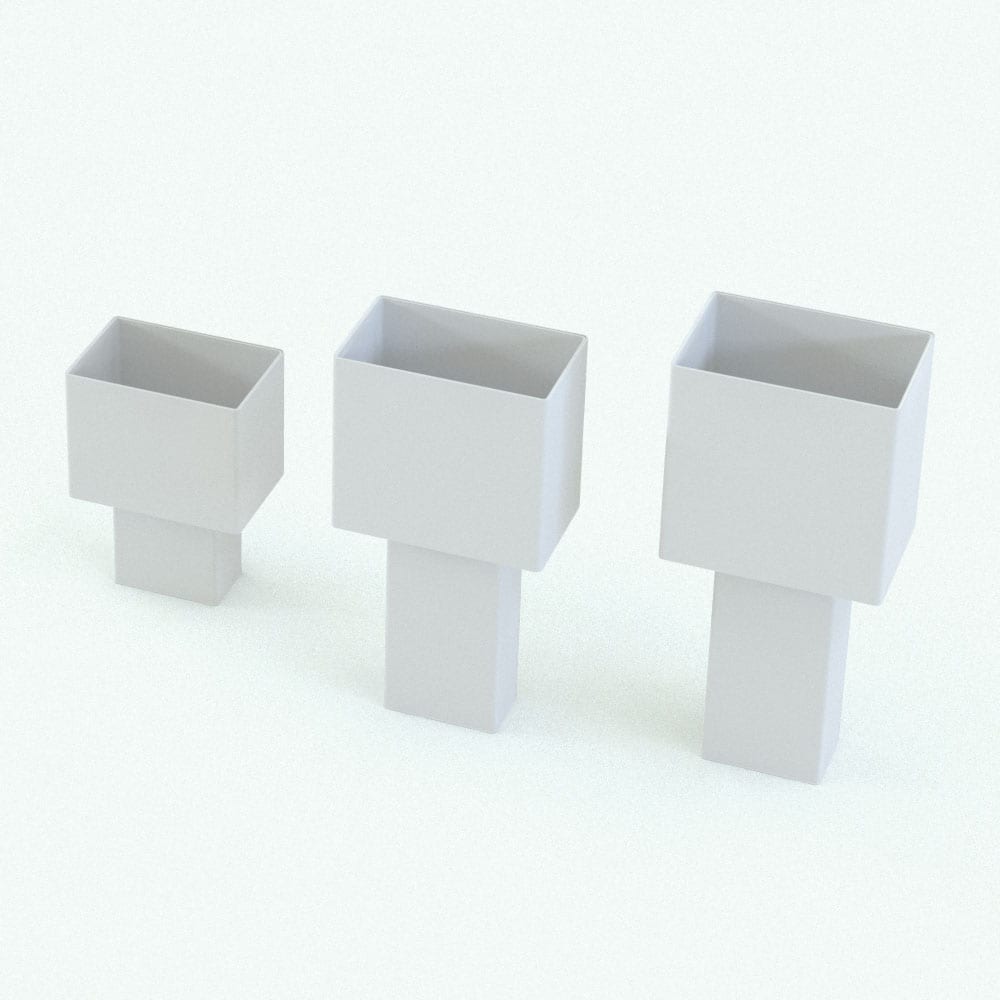

Lamp comes in three pre-configured sizes, each size with either soft or harsh shadows:

• Short Lamp – Harsh Shadows
• Short Lamp – Soft Shadows
• Standard Lamp – Harsh Shadows
• Standard Lamp – Soft Shadows
• Tall Lamp – Harsh Shadows
• Tall Lamp – Soft Shadows

Additional sizes can be created in Edit Type by Duplicating and changing the width, depth and height of the base and screen as well as the softness of the light:

• Minimum base width: 4″
• Maximum base width: 1′

• Minimum base depth: 3″
• Maximum base depth: 1′

• Minimum base height: 3″
• Maximum base height: 4′

• Minimum screen width: base width + 1″
• Maximum screen width: 2′

• Minimum screen depth: base depth + 1″
• Maximum screen depth: 2′

• Minimum screen height: 6″
• Maximum screen height: 3′

• Minimum light softness: 1/32″
• Maximum light softness: smallest size between the screen width and depth – 1″

Internal structure can be turned off.

Material parameters for:

• Base
• Metal
• Screen

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
