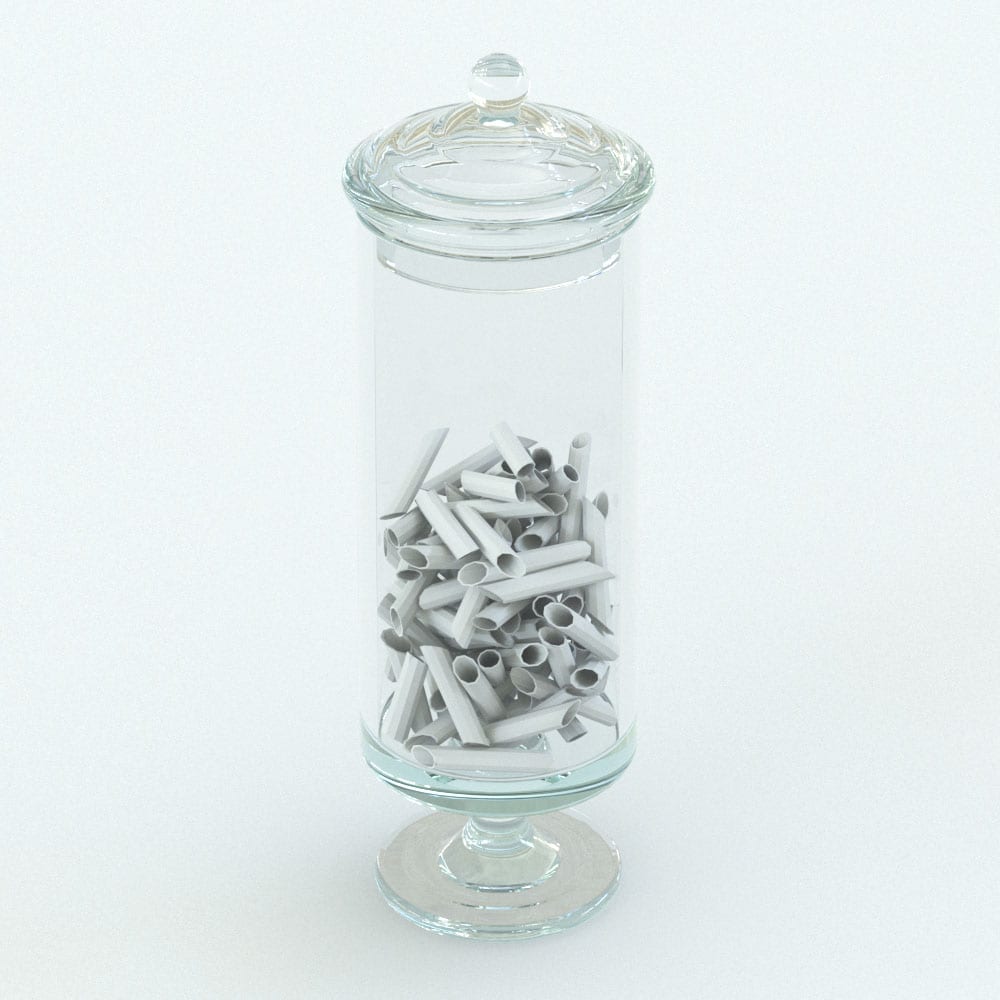

Glass Pasta Containers

With this hybrid parametric pasta container Revit family you can bring your kitchen renders to life. By changing the height of the container and turning the lid and/or the pasta on or off, you can create several variations that will make this family look different in every project. Additionally, this family comes with three different pasta types: spaghetti, fusilli and penne, which will give you more options to choose from.

• Parametric: Yes
• Hybrid*: Yes
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 1.06 MB
• File format: .rfa

This glass pasta container Revit family comes with the following customizable parameters and options:

Height of the container+:

• Minimum height++: 1′
• Maximum height: 4′

+ Measured to the bottom of the lid (does not include the height of the mouth of the jar)

++ Depends on the type of pasta. For certain types of pasta, the minimum height can be taller.

Pasta type can be changed between spaghetti, fusilli and penne.

Lid and/or pasta can be removed

Part of the materials can be found in the Properties, while the rest of the materials can be found in the Material Browser.

Material parameters for:

• Container

Materials (material names) found in the Material Browser:

• Glass Pasta Container – Pasta

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
