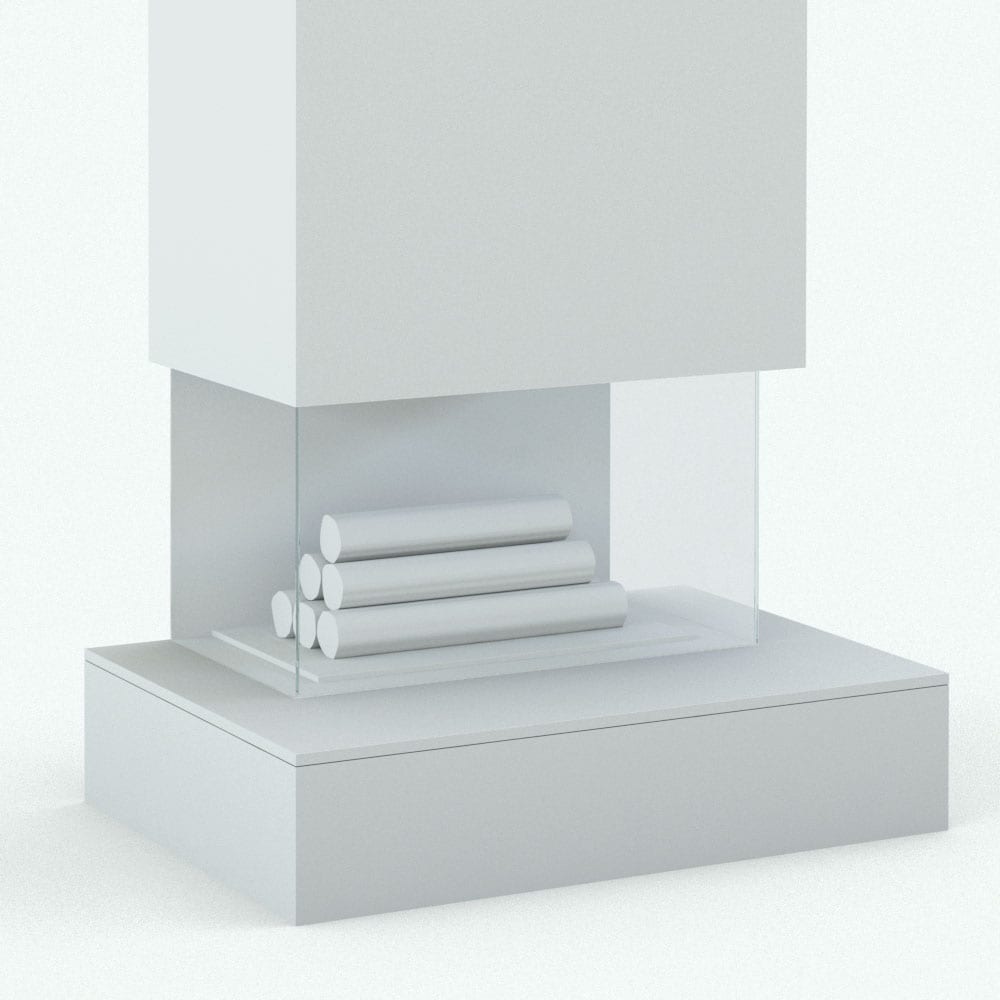

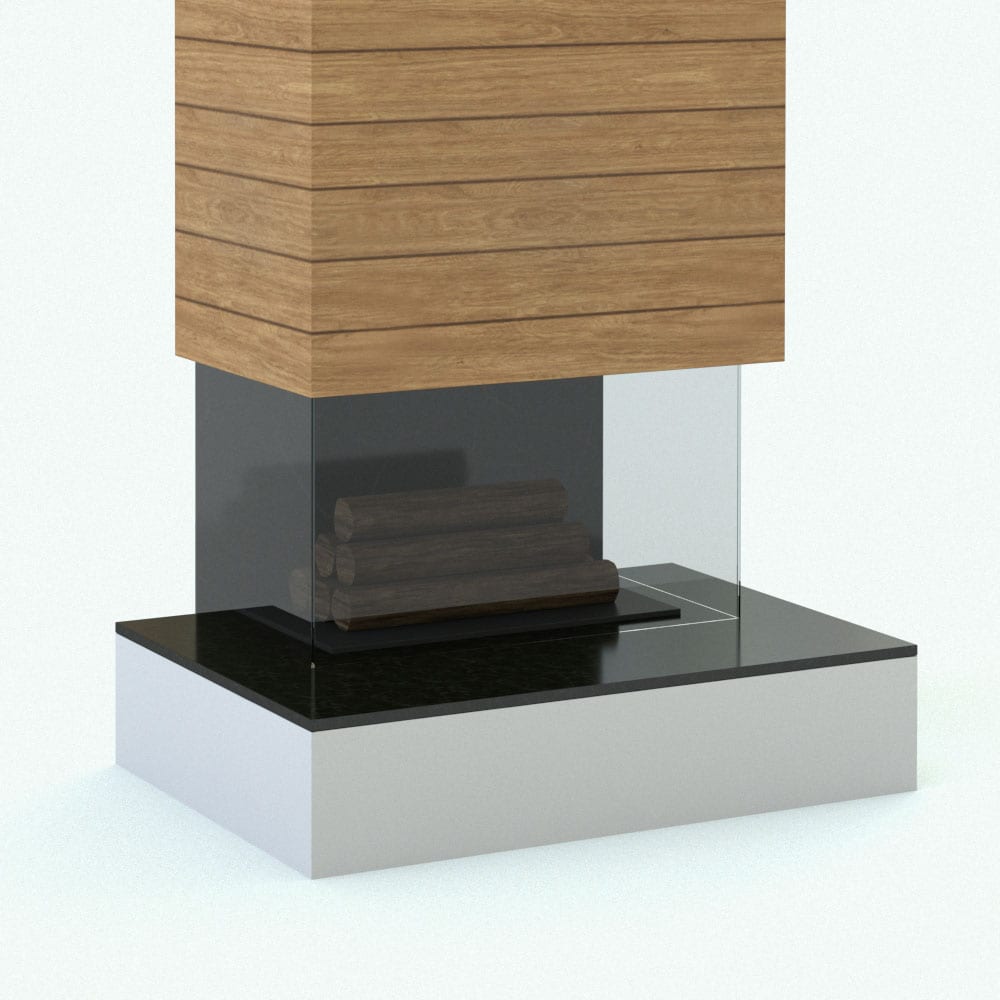

Glass Enclosed Fireplace

This modern Revit fireplace family with chimney and a log grate is ideal to decorate your living rooms, exterior spaces, restaurants and other spaces. Change the height of the fireplace to match your ceiling height and configure its additional features like the overall width, the firebox depth and opening height and the heart height, width and depth. Additionally, this family comes with a fully customizable exterior chimney that includes parameters like width, height, wall thickness, offset from the top of the fireplace and visibility of the chimney moulding, as well as with a parametric log grate with options to change its width, depth and visibility.

This Revit family glass enclosed fireplace comes with the following customizable parameters and options:

Fireplace and Chimney

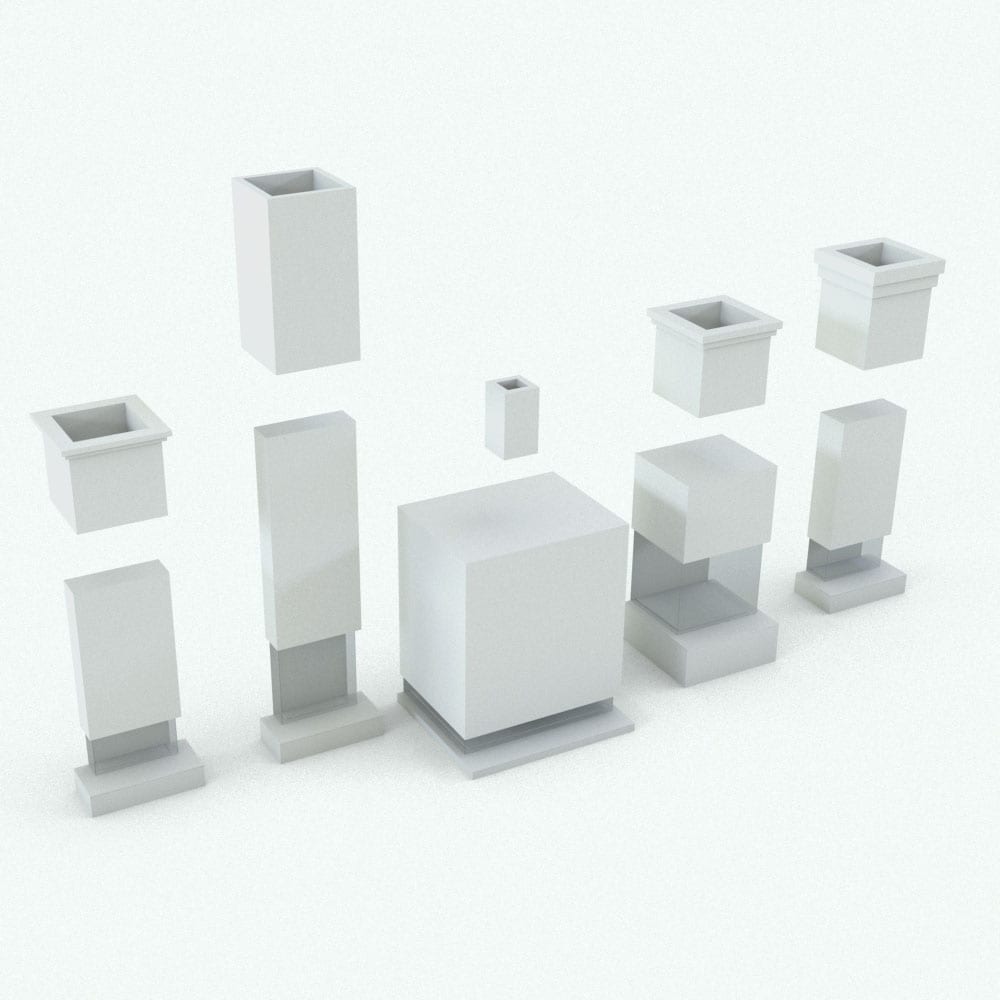

Total height and width of fireplace:

• Minimum height: 7′ 6″
• Maximum height: 35′

• Minimum width: 1′ 4″
• Maximum width: 12′

Firebox depth and Opening height:

• Minimum depth: 1′
• Maximum depth: 6′

• Minimum opening: 1′
• Maximum opening: 4′

Heart height, width and depth:

• Minimum height: 4″
• Maximum height: 2′

• Minimum width: 3′ 4″
• Maximum width: 14′

• Minimum depth: 4″ (past the fireplace)
• Maximum depth: 3′

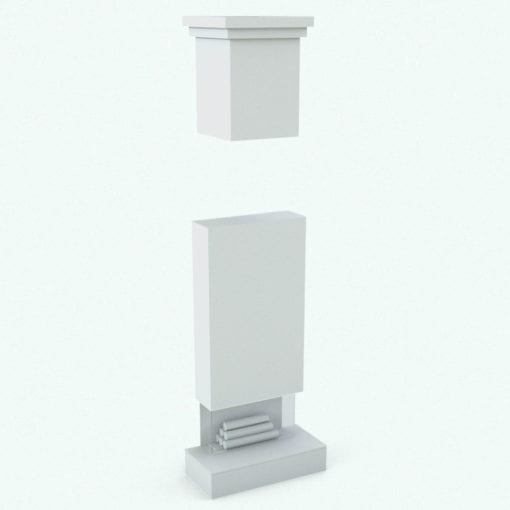

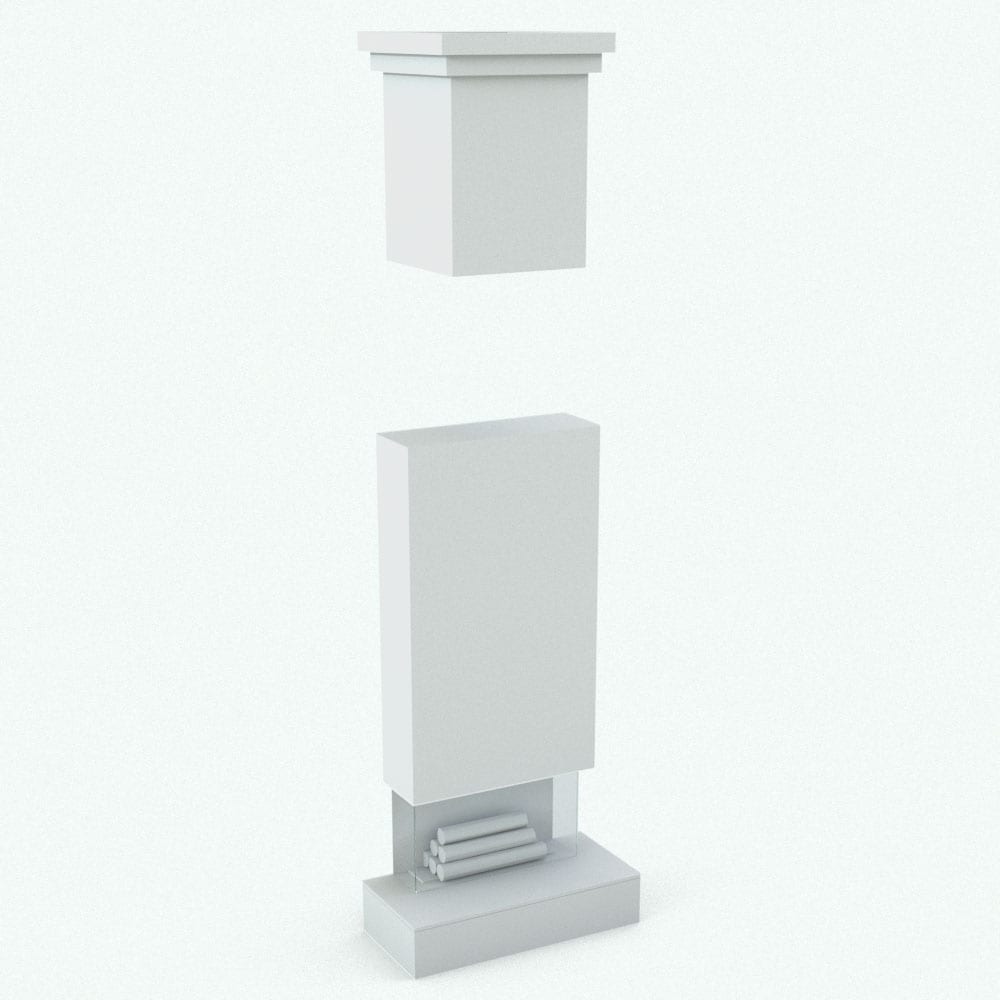

Chimney height, width and wall thickness:

• Minimum height: 3′
• Maximum height: 30′

• Minimum width: 1′
• Maximum width: 6′

• Minimum wall thickness: 1″
• Maximum wall thickness: 1′

Chimney offset (distance from the top of the fireplace to the bottom of the chimney):

• Minimum offset: 1/4″
• Maximum offset: 30′

Chimney moulding can be turned on/off

Material parameters for:

• Fireplace
• Glass
• Heart
• Grill
• Trim
• Firebox Back
• Chimney

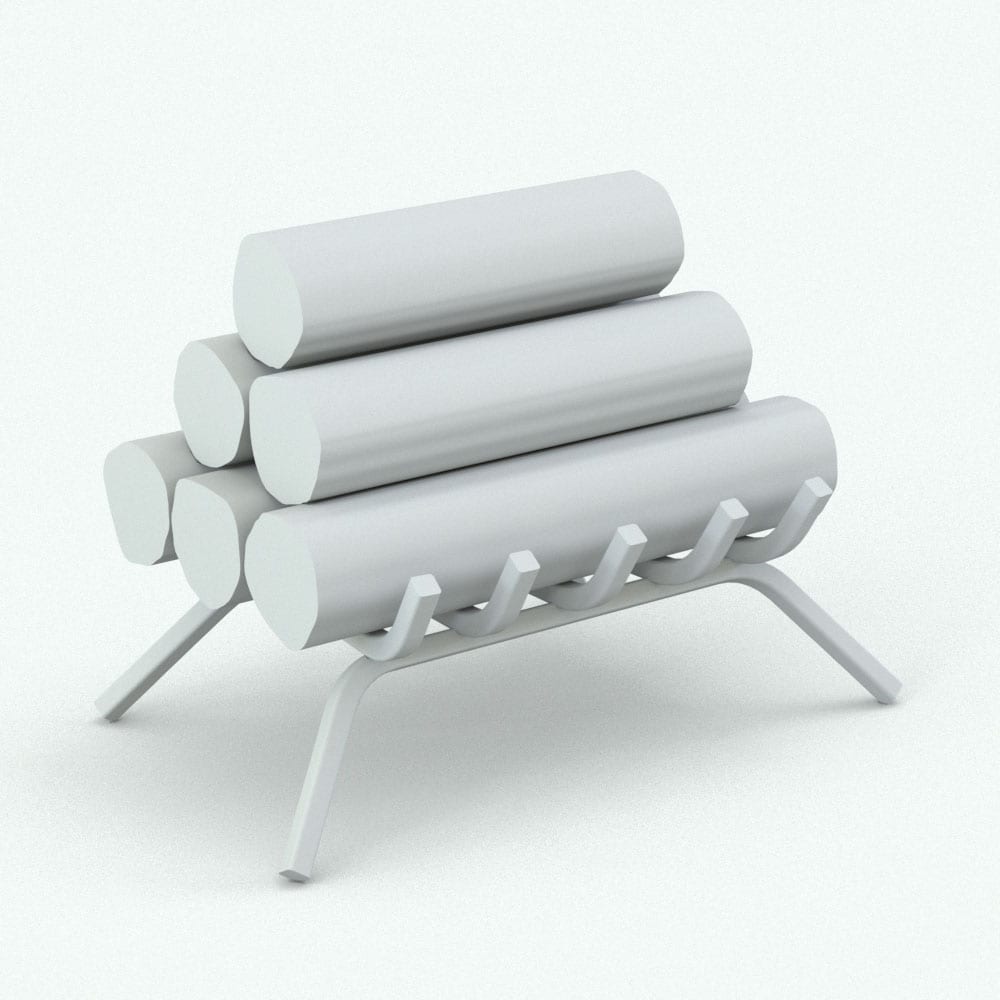

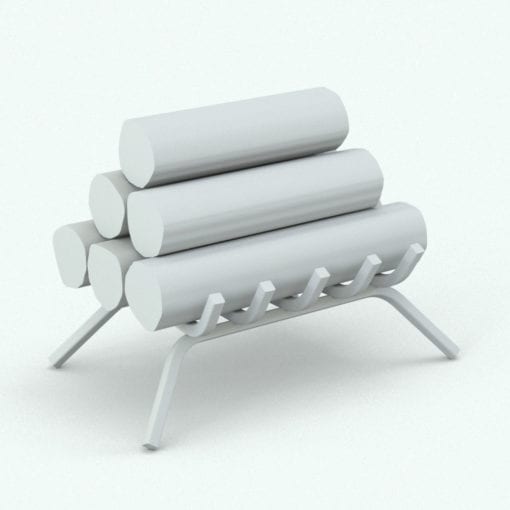

Log Grate

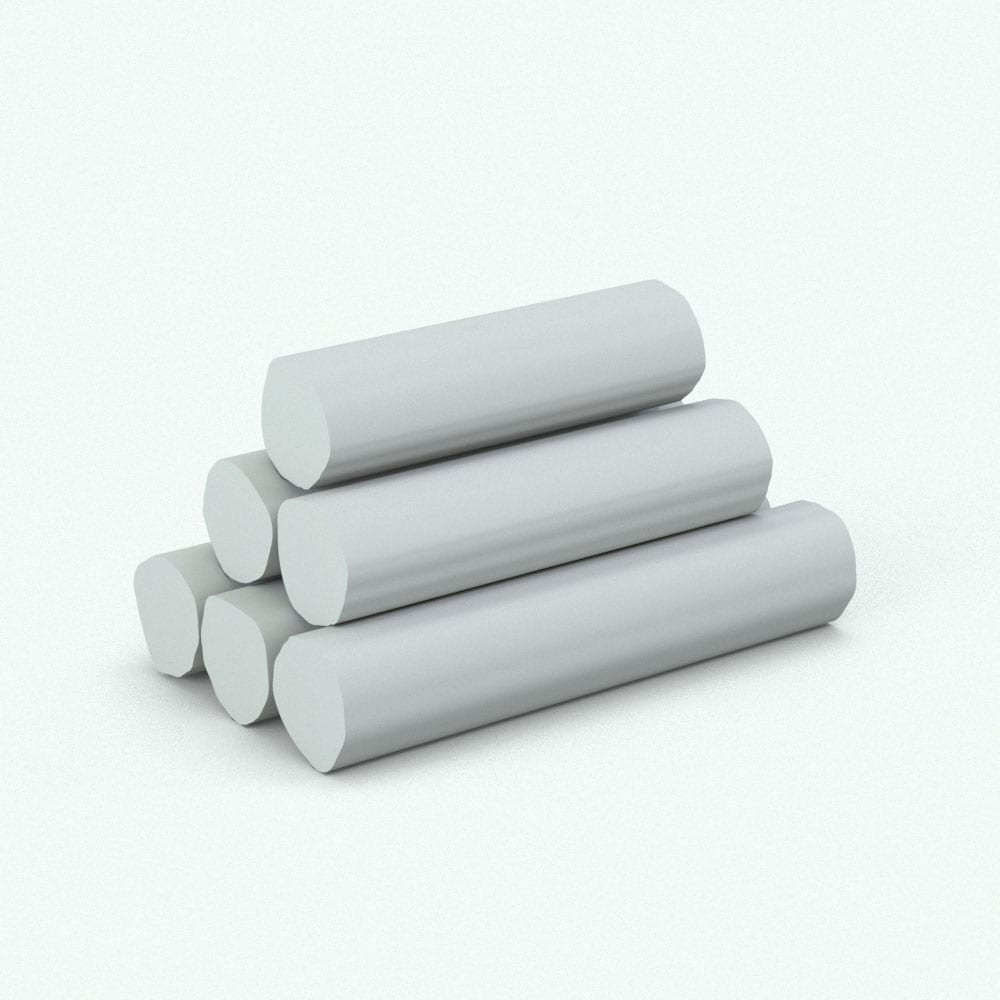

Logs Size: This value depends on the overall grate width. The value ranges from 0-2

Grate Overall Width:

• Minimum grate overall width: 1’6″
• Maximum grate overall width: 4′

Grate Overall Depth:

• Minimum grate overall depth: 6″
• Maximum grate overall depth: 1’1″

The following objects can be turned on/off:

• Logs
• Grate

NOTE: if both objects are turned off, the logs will show up by default.

Material parameters for:

• Grate
• Logs

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
