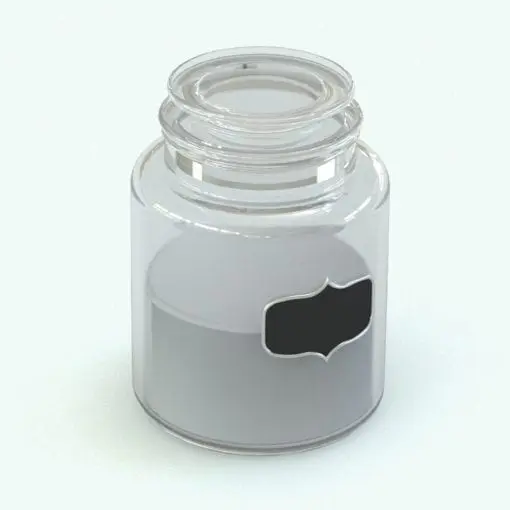

Glass Container Revit Kitchen Accessory Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Work Plane Based
• Materials/textures: Yes
• Approximate file size: 0.54 MB
• File format: .rfa

This Glass Container Revit Kitchen Accessory Family comes with the following customizable parameters and options:

Body radius, mouth radius and body height++:

• Minimum body radius: 2 1/4″
• Maximum body radius: 11″

• Minimum mouth radius: 1 1/2″
• Maximum mouth radius: body radius-3/4″

• Minimum body height: 3″
• Maximum body height: 2′

++Does not include the lid and it is measured up to a little below the top curved part of the main body of the Glass Container Revit Kitchen Family.

You can turn off the lid, the contents or the main body (container). If lid and container are both off, the container will automatically turn on.

Fill percentage of the contents:

• Minimum fill percentage: 20 percent
• Maximum fill percentage: 100 percent

This Revit kitchen accessory family comes with material parameters for:

• Container
• Label
• Label Border
• Contents

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
