Transform your interiors with this French-style wall molding Revit family, which is a fully parametric, classic-style paneling system designed to bring sophistication and timeless elegance to any space. Perfect for creating luxurious wall detailing, this family includes intricately designed corner flowers and adjustable panels to fit your project’s specific needs.
Whether you’re an architect, interior designer, or contractor, this versatile Revit family allows you to effortlessly enhance your projects. Adjust the height and spacing of the panels to fit your unique design, while maintaining a professional and polished look.
Why settle for the Revit wall sweep tool when you can elevate your designs with this sophisticated wall molding French-style Revit family? Unlike simple Revit sweep elements, this family offers unparalleled elegance and customization, allowing you to create truly standout walls that exude luxury and refinement. With its advanced parametric features, you can easily achieve seamless integration and bring your vision to life with stunning, high-quality details that ordinary sweeps simply can’t match.
Key Features of this French-style wall molding Revit Family:
- Fully customizable and line-based for ease of use.

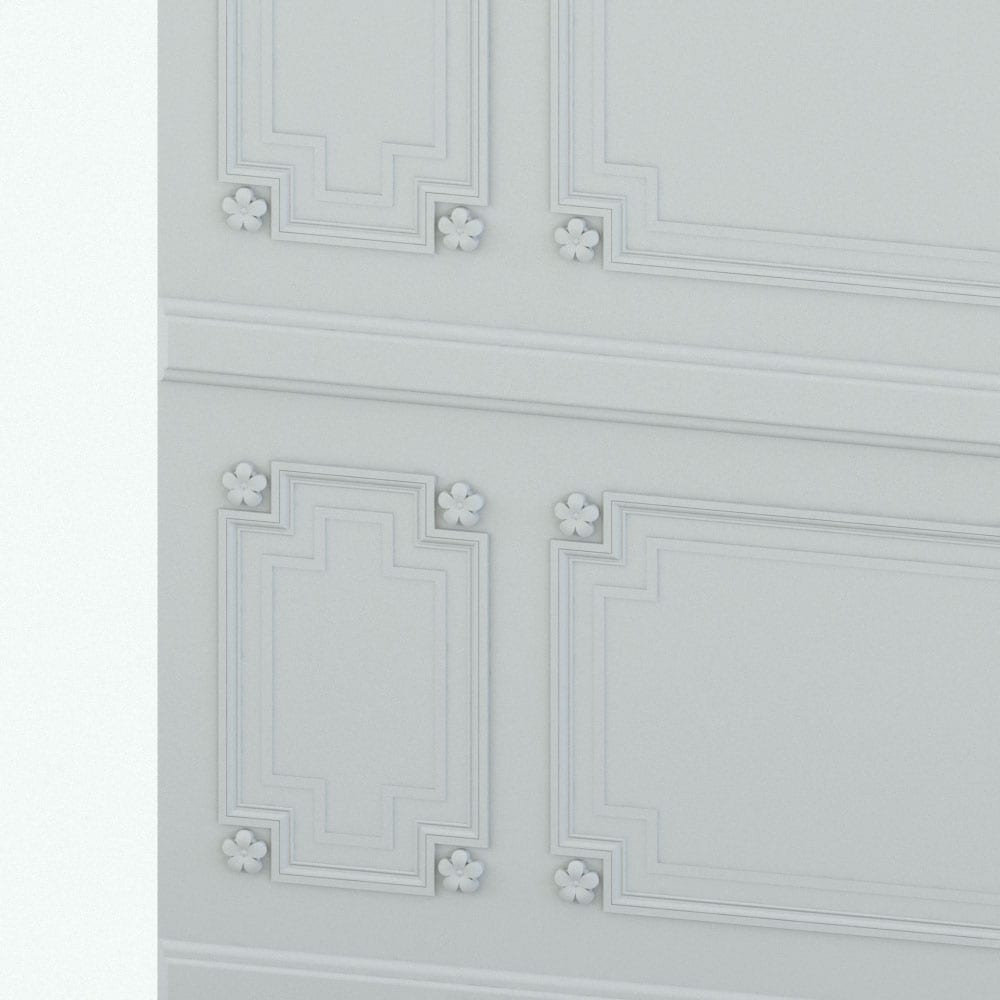

- Includes detailed corner flowers for added elegance.
- Seamlessly integrates with your projects to deliver elegant, custom Revit wall molding designs.
- Perfectly suited for French-style wall molding applications, bringing a touch of timeless sophistication to any space.
Don’t think twice and take your designs to the next level with this essential Revit molding family, crafted for excellence in detail and performance.
Want to dive into the details? Expand the Technical Information section to explore everything you need to know about this Revit family. From value ranges for each parameter to Revit version compatibility and more, you’ll find all the essential specs to ensure this Revit family fits perfectly into your project. We highly encourage you to check it out, as it contains crucial information to help you get the most out of this product!
- Parametric: Yes
- Hybrid*: No
- Compatible with: Revit 2016 and higher.
- Family type: Generic Model Line Based Family
- Materials/textures: Yes
- Approximate file size: 1.21 MB
- File format: .rfa
This wall molding French-style Revit family comes with the following customizable parameters and options:
Height of the paneling:
- Minimum height: 8′
- Maximum height: 20′
Change the start and end cuts using the Start and End Angle values in the properties. For example, you can set the value (of Start or End) to 0 if you want 90 degree angles. Or, you can set the value (of Start or End) to 1 if you want an inwards 45 degree cut, but if what you need is 45 degree outward angle cuts, go ahead and set the value (of Start or End) to 2. Finally, you can set it to any other number in case you have an angle that is different than 45 or -45 and change the Manual Start Angle or Manual End Angle to the desired angle. Positive angles go inwards while negative angles go outwards.
- Maximum inward angle: 60 degrees
- Maximum outward angle: -60 degrees
Panel can have multiple or single squares.
Minimum panel size: 1’6″
NOTES:
- After being loaded into a project, it can be placed through the Component Tool.
- Needs to be in Fine quality mode to see the flowers. Coarse and Medium qualities substitute the flower for a much simpler shape. Make sure you switch to Fine quality before rendering to display the flowers properly.
Also, there are material parameters for:
- Backdrop
- Wall Trim
* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.
All files are delivered in zip format. Before using your 3D models, you will need to unzip the downloadable file using a 3rd party software like Winzip or Peazip. Make sure you have a software to unzip files before purchasing 3D models.
| Format | rfa |
|---|
