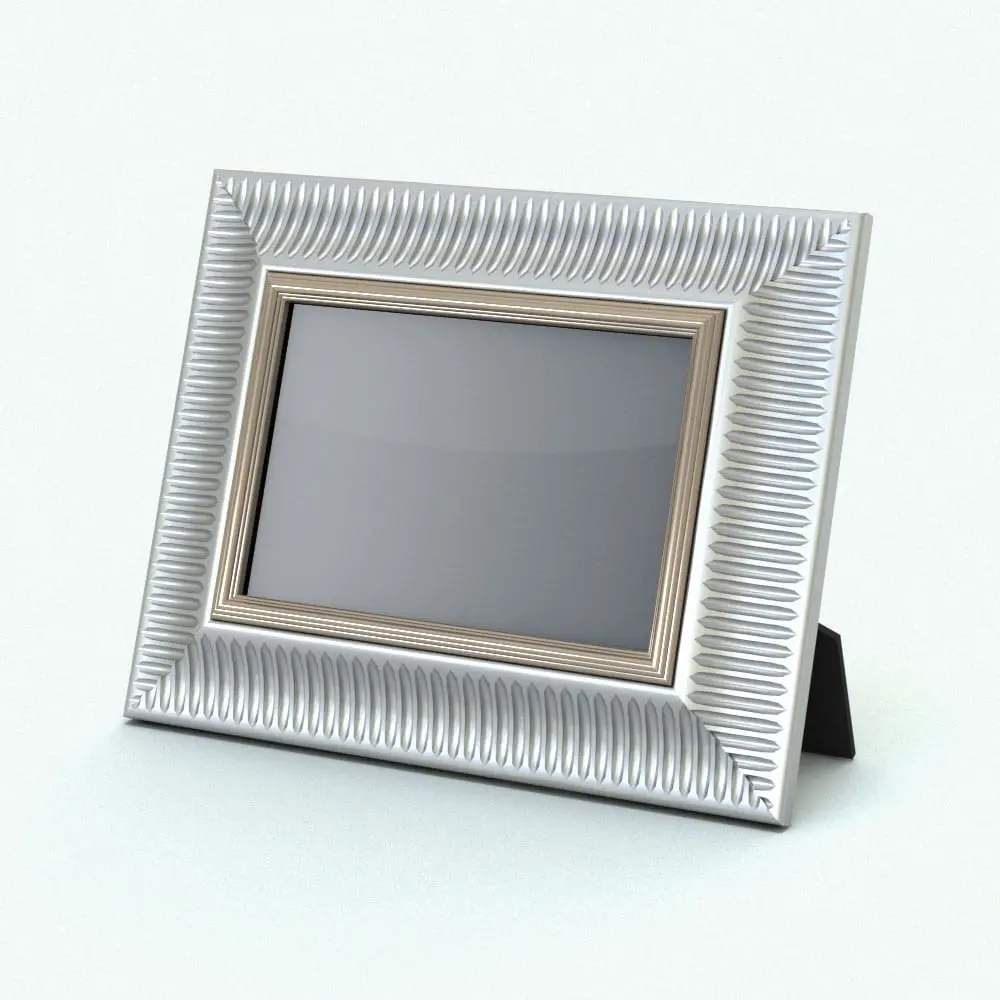

Classic Revit Picture Frame Family

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Generic Model Face Based
• Materials/textures: Yes
• Approximate file size: 1.81 MB
• File format: .rfa

This classic Revit picture frame family comes with the following customizable parameters and options:

Width and height of picture:

• Minimum picture width: 3″
• Maximum picture width: as big as you computer can handle (this is a heavy family, so be cautions when creating sizes of more than 5′)

Frame is always 1 7/8″ thick regardless of the size of the picture

You can turn on/off the glass and back stand of this frame 3D model.

Angle of the Revit picture frame (the back stand will automatically adjust to make it stand properly).

• Minimum angle: 0 degrees
• Maximum angle: 90 degrees

Material parameters for:

• Frame
• Inner Moulding
• Picture
• Back Panel Material
• Glass Material
• Metal Material (Pegs in the back)

NOTE: This classic Revit picture frame 3d model is slow to update due to the voids on the frame (they need to be computed every time the size changes). Once the voids are calculated, it is not slow anymore.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since all our files are delivered in zip format.
