Revit Bookshelf Family With Doors-Drawers-Desk

• Parametric: Yes
• Hybrid*: No
• Compatible with: Revit 2016 and higher.
• Family type: Furniture
• Materials/textures: Yes
• Approximate file size: 0.67 MB
• File format: .rfa

This Revit Bookshelf Family With Doors-Drawers-Desk comes with the following customizable parameters and options:

Width:

• Minimum width: 1’6″
• Maximum width: 10′

Depth of shelves:

• Minimum depth of shelves: 6″
• Maximum depth of shelves: 4′

Depth of bottom part of this Revit Bookshelf Family With Doors-Drawers-Desk :

• Minimum depth of bottom part+: 0′
• Maximum depth of bottom part+: 5′

+ Additional to the depth of shelves value

Total height:

• Minimum height of bookshelf++: 4’6″
• Maximum height of bookshelf++: 15′

++ Includes the bottom part which has a fixed height of 30″

Aside from these main parameters listed above, this Revit Bookshelf Family With Doors-Drawers-Desk comes with the following parameters listed below for further customization:

The bottom part type can be changed between:

• 1 door
• 2 doors
• 2 drawers
• 3 drawers
• Desk

Number of shelves on this Revit Bookshelf Family With Doors :

• Minimum number of shelves+++: 2
• Maximum number of shelves+++: as many as long as the vertical separation between them is not less than approximately 7″

+++ Includes the bottom most shelf (right above the bottom part)

The shape of the top of the bookshelf can be changed between straight or curved

In case the bottom type is set to the desk option, the length of the desk can be changed:

• Minimum desk length: 2′
• Maximum desk length: 30′

This Revit Bookshelf Family comes with material parameters for:

• Bookshelf
• Knobs

IMPORTANT NOTE about this Revit Bookshelf Family:

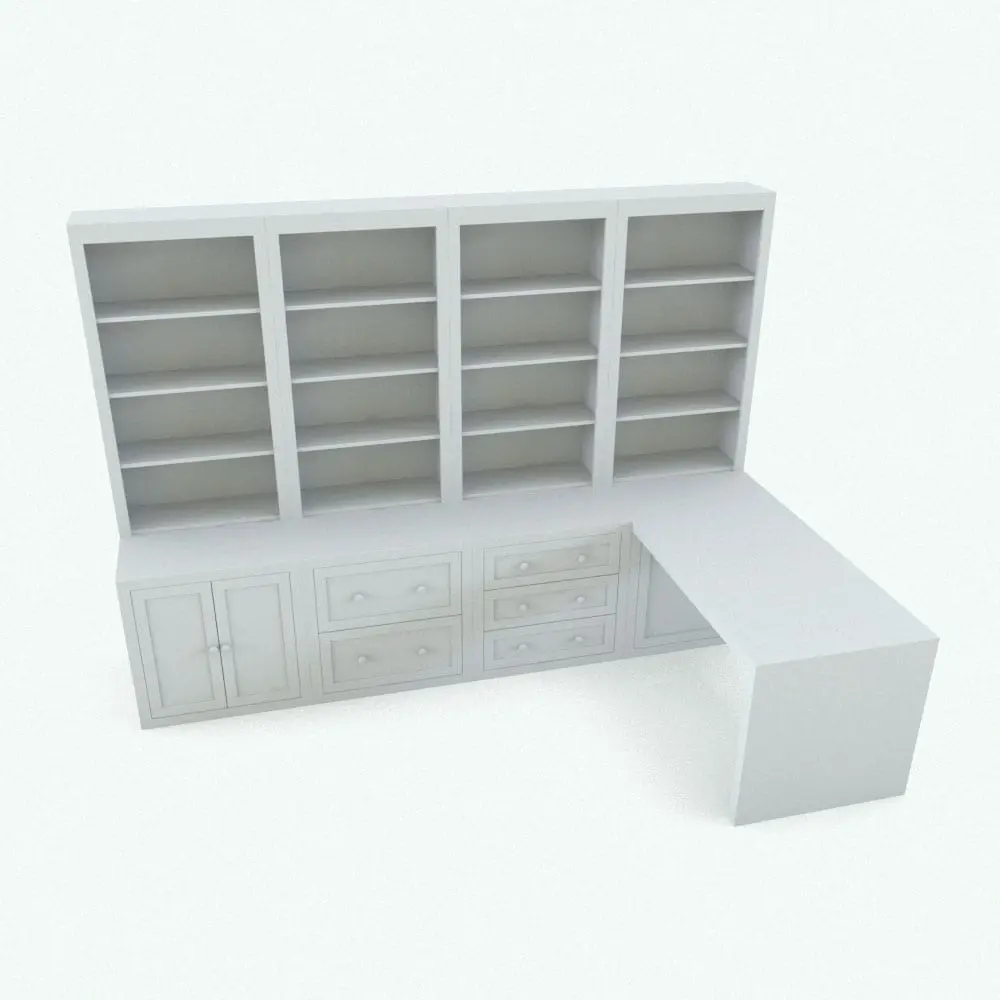

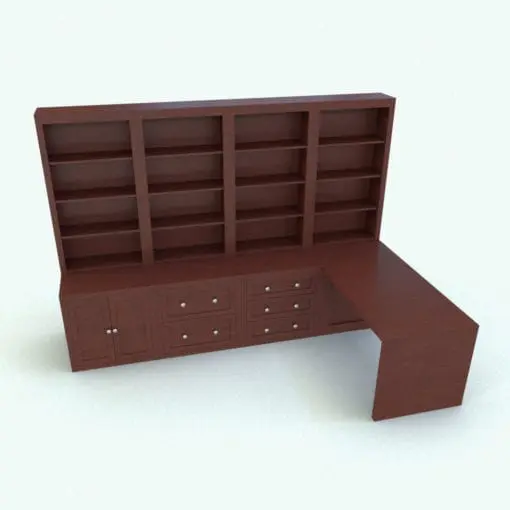

• This family is a modular bookshelf that you can line up side by side to get different configurations, like the one seen on the main image of this product.

* Hybrid families combine native Revit objects with other 3D applications’ objects for a more organic and realistic look to the families. The objects coming from other 3D applications are configured to NOT have mesh lines (only outlines) and to display in black.

Before purchasing our Revit families and 3D models, make sure you have a software like Winzip or Peazip to unzip files since you will be provided with zip format files.
